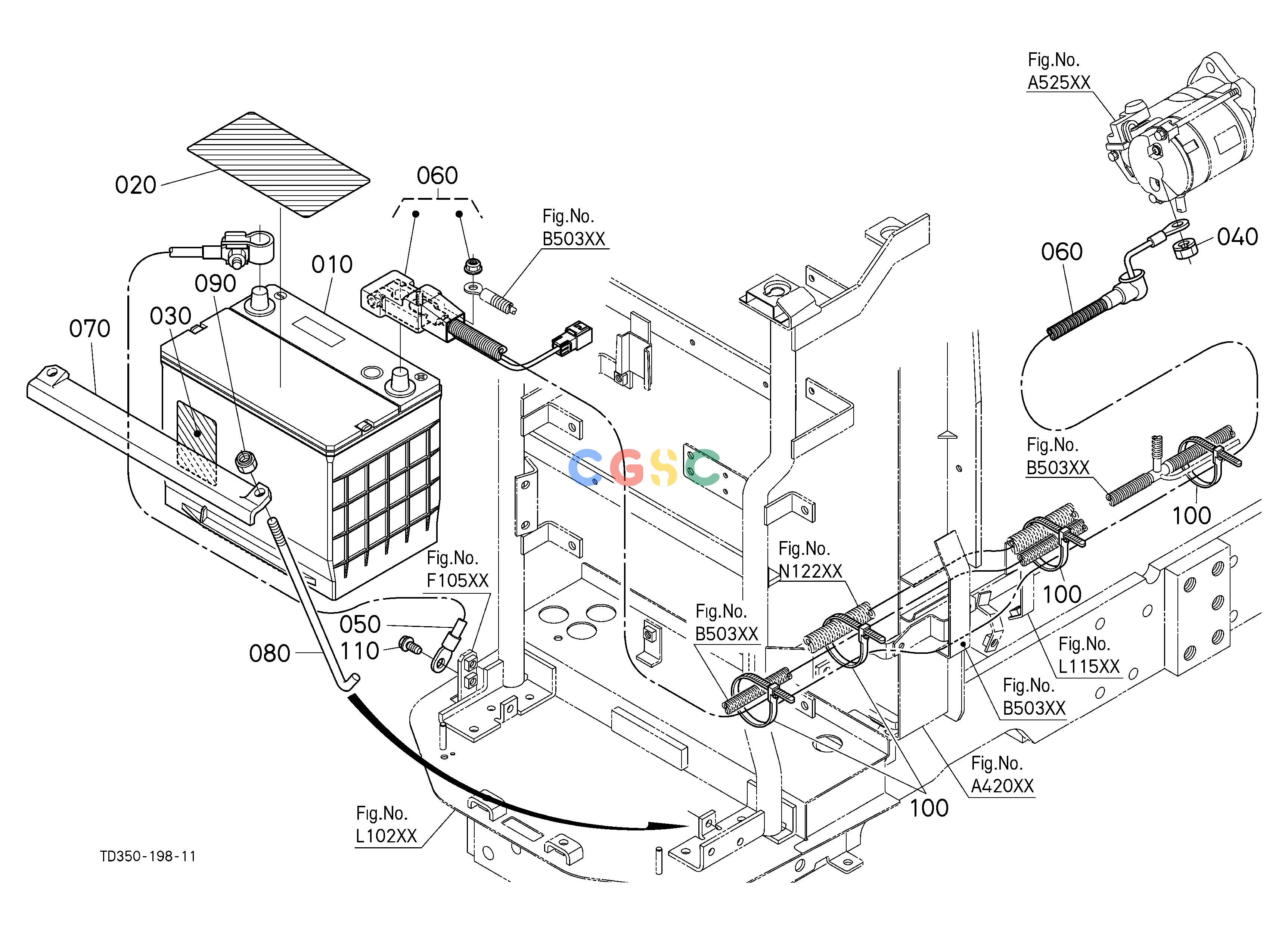

久保田零件查询A53503 BATTERY [CA] [NEW] ## S.No.>=40486 S.No.;>=40486 ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
260 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
---- |
[1] |
BATTERY(80D26R)
|
0.0000(lbs); 0.000
|
| 020. |
TD06030123
|
[1] |
LABEL,BATTERY
|
0.0088(lbs); 0.004
|
| 020. |
TD06030124
|
[1] |
LABEL,BATTERY
|
0.0088(lbs); 0.004
|
| 030. |
TD02030140
|
[1] |
LABEL(RECYCLE)
|
0.0022(lbs); 0.001
|
| 040. |
1642992010
|
[1] |
NUT WITH LOCK WASHER
|
0.0154(lbs); 0.007
|
| 050. |
T117030130
|
[1] |
CORD,EARTH
|
0.2970(lbs); 0.135
|
| 060. |
TD35330120
|
[1] |
CORD(BATTERY)
|
0.0000(lbs); 0.000
|
| 060. |
TD35330122
|
[1] |
CORD(BATTERY)
|
1.3200(lbs); 0.600
|
| 070. |
T106040110
|
[1] |
FIXTURE(BATTERY)
|
0.4400(lbs); 0.200
|
| 080. |
T043040120
|
[2] |
BOLT(HOOK)
|
0.0924(lbs); 0.042
|
| 090. |
0255250060
|
[2] |
NUT,LOCKING
|
0.0044(lbs); 0.002
|
| 100. |
5531141260
|
[4] |
BAND,CORD
|
0.0154(lbs); 0.007
|
| 110. |
T106030370
|
[1] |
BOLT
|
0.0286(lbs); 0.013
|
