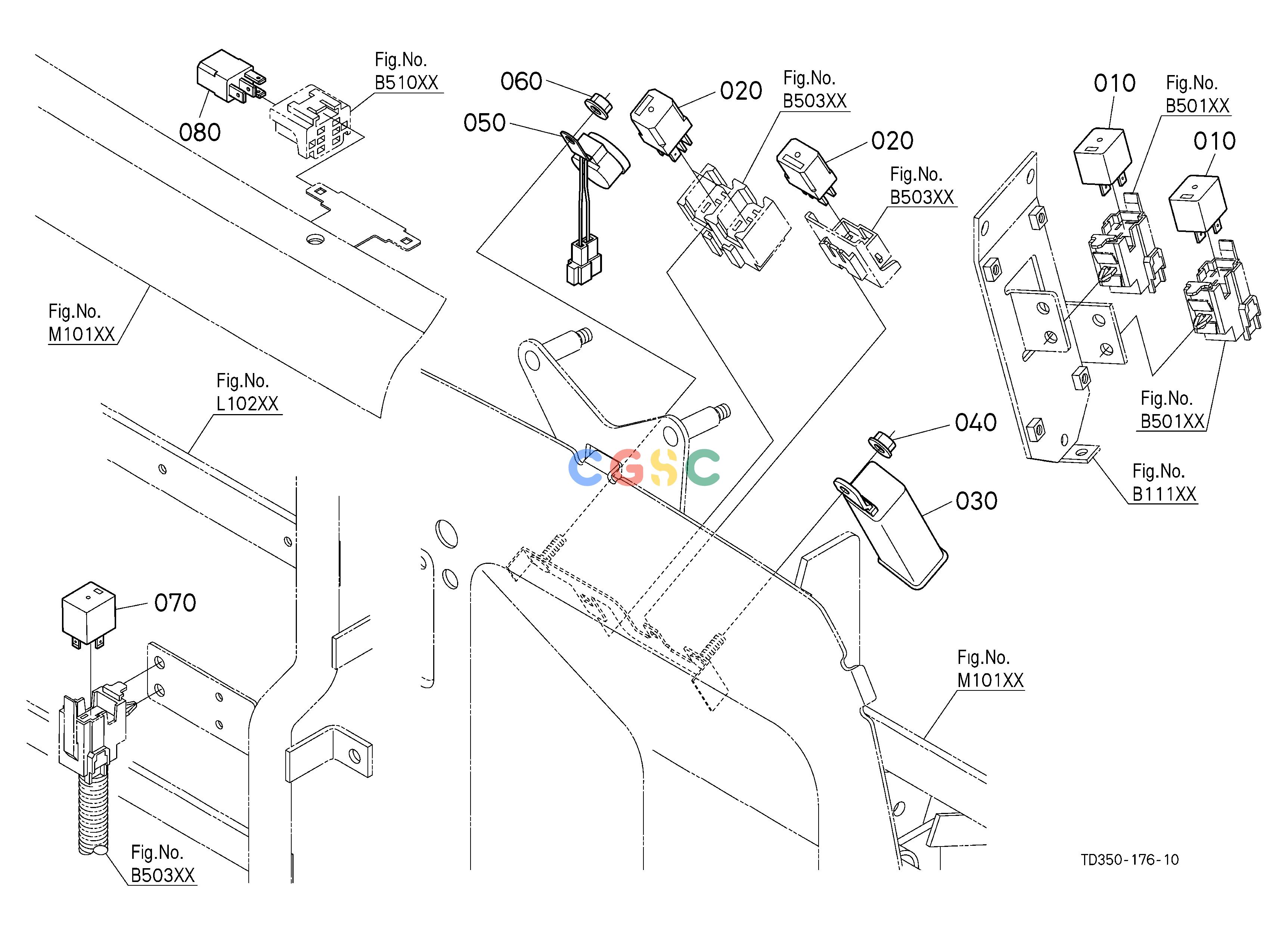

久保田零件查询B10202 RELAY [CA] [OLD] ## S.No.<=40485 S.No.;<=40485 ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
428 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
T185033710
|
[2] |
RELAY(GLOW)
|
0.0660(lbs); 0.030
|
| 020. |
RD45154380
|
[3] |
RELAY(20A,MICRO ISO)
|
0.0440(lbs); 0.020
|
| 030. |
3F24075430
|
[1] |
UNIT,FLASHER
|
0.1320(lbs); 0.060
|
| 040. |
0275150060
|
[1] |
NUT,FLANGE
|
0.0110(lbs); 0.005
|
| 050. |
5366053810
|
[1] |
BUZZER,BACK
|
0.0770(lbs); 0.035
|
| 060. |
0275150060
|
[1] |
NUT,FLANGE
|
0.0110(lbs); 0.005
|
| 070. |
T185033710
|
[1] |
RELAY(GLOW)
|
0.0660(lbs); 0.030
|
| 080. |
RD45154380
|
[1] |
RELAY(20A,MICRO ISO)
|
0.0440(lbs); 0.020
|
