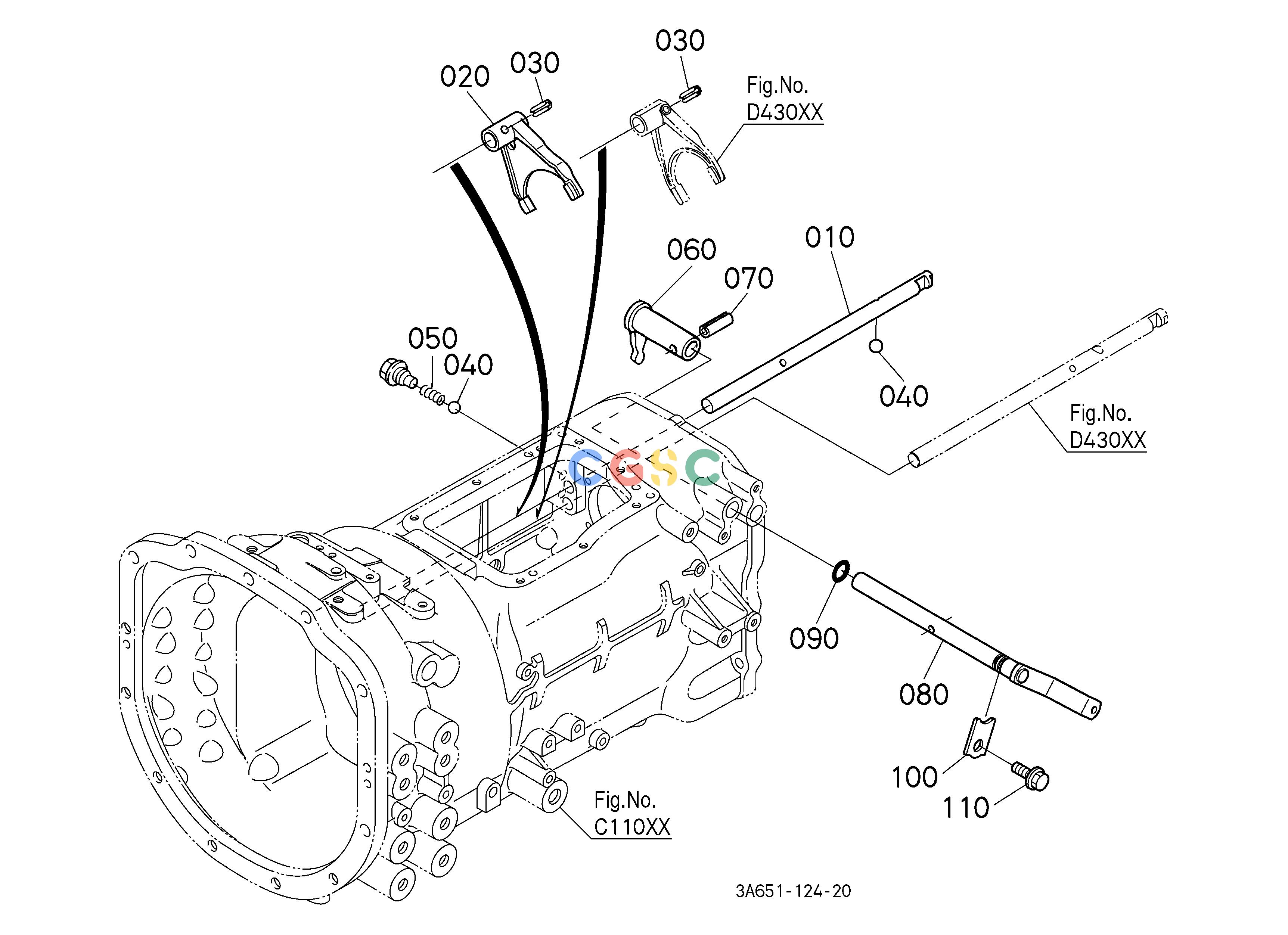

久保田零件查询U32202 CREEP SPEED KIT (SHIFT FORK) [A] [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
158 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3A21131320
|
[1] |
ROD FORK
|
1.5180(lbs); 0.690
|
| 020. |
3A01131310
|
[1] |
FORK SHIFT
|
0.8580(lbs); 0.390
|
| 030. |
0541100628
|
[2] |
PIN SPRING
|
0.0132(lbs); 0.006
|
| 040. |
0771503211
|
[2] |
BALL
|
0.0066(lbs); 0.003
|
| 050. |
6223118530
|
[1] |
SPRING
|
0.0440(lbs); 0.020
|
| 060. |
3A01131420
|
[1] |
LEVER SHIFT
|
0.7260(lbs); 0.330
|
| 070. |
0541100836
|
[2] |
PIN SPRING
|
0.0176(lbs); 0.008
|
| 080. |
3A65231430
|
[1] |
LEVER SHIFT CREEP
|
1.6390(lbs); 0.745
|
| 090. |
0481600160
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 100. |
3415024350
|
[1] |
STOPPER LEVER
|
0.0220(lbs); 0.010
|
| 110. |
0175460812
|
[1] |
BOLT FLANGE
|
0.0242(lbs); 0.011
|
