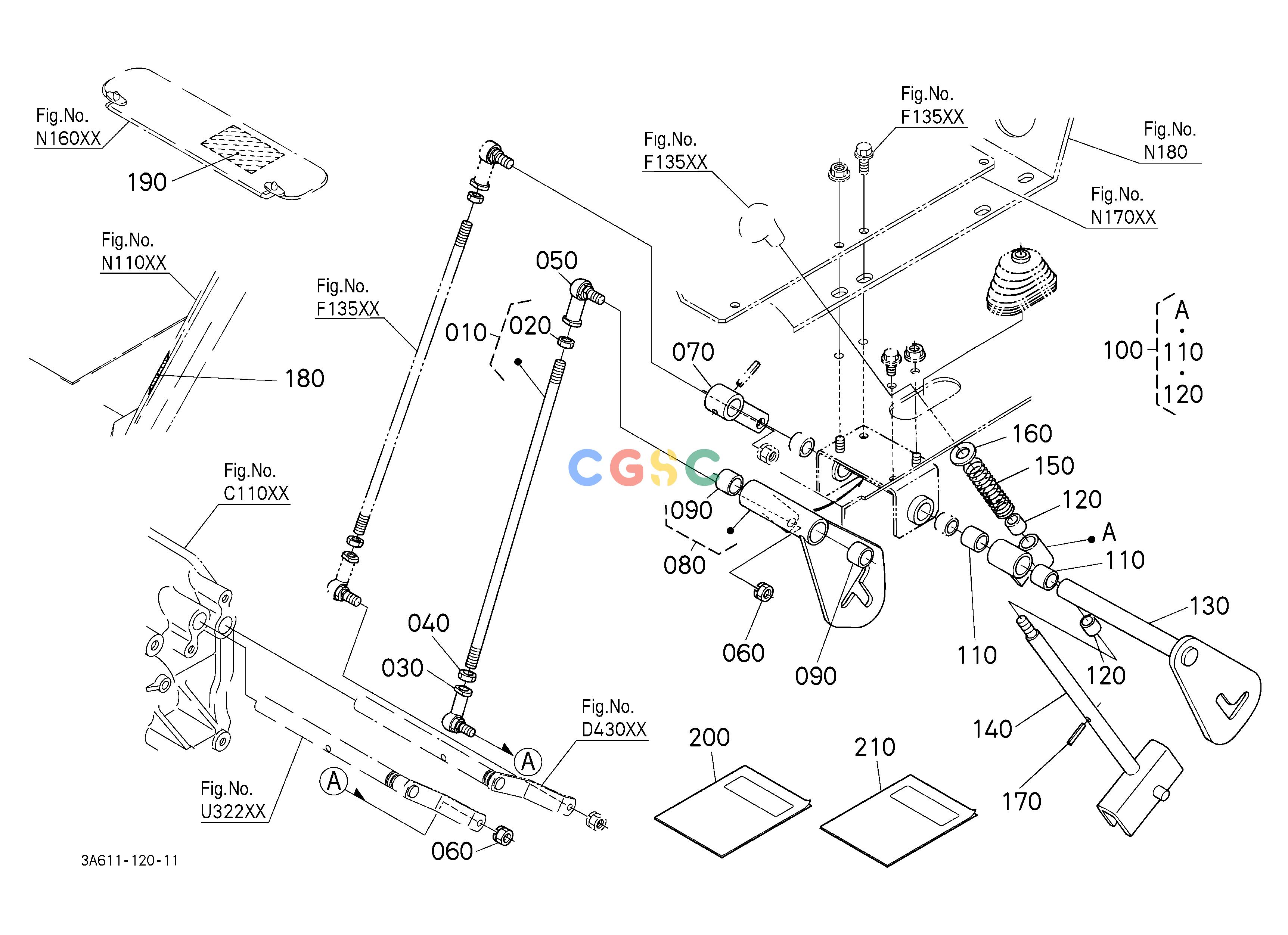

久保田零件查询U32302 CREEP SPEED KIT (SHIFT LEVER) [A] [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
858 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3A65129802
|
[1] |
ASSY ROD RANGE SHIFT
|
0.2310(lbs); 0.105
|
| 020. |
0211250080
|
[1] |
NUT
|
0.0066(lbs); 0.003
|
| 030. |
5472131850
|
[1] |
BALL LINK
|
0.1430(lbs); 0.065
|
| 040. |
3135124260
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 050. |
4540495770
|
[1] |
END ROD
|
0.1100(lbs); 0.050
|
| 060. |
1642992010
|
[2] |
NUT
|
0.0154(lbs); 0.007
|
| 070. |
3A75229880
|
[1] |
LEVER RANGE SHIFT
|
0.3850(lbs); 0.175
|
| 080. |
3A75231400
|
[1] |
ASSY LEVER CREEP
|
1.7380(lbs); 0.790
|
| 090. |
0851101815
|
[2] |
BUSH
|
0.0154(lbs); 0.007
|
| 100. |
3A75229670
|
[1] |
ASSY SUPPORT LEVER
|
0.6930(lbs); 0.315
|
| 110. |
0851101815
|
[2] |
BUSH
|
0.0154(lbs); 0.007
|
| 120. |
0851101410
|
[2] |
BUSH
|
0.0110(lbs); 0.005
|
| 130. |
3A75229912
|
[1] |
LEVER RANGE SHIFT
|
1.8590(lbs); 0.845
|
| 140. |
3A75229962
|
[1] |
LEVER RANGE SHIFT
|
1.6500(lbs); 0.750
|
| 150. |
3A75229970
|
[1] |
SPRING
|
0.0330(lbs); 0.015
|
| 160. |
0401150140
|
[1] |
WASHER PLAIN
|
0.0154(lbs); 0.007
|
| 170. |
0541100425
|
[1] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 180. |
3A75298960
|
[1] |
LABEL RANGE SHIFT
|
0.0110(lbs); 0.005
|
| 190. |
3A21298450
|
[1] |
LABEL SPEED
|
0.0044(lbs); 0.002
|
| 200. |
3A65197430
|
[1] |
MANUAL INSTRUCTION
|
0.0066(lbs); 0.003
|
| 210. |
3A21197450
|
[1] |
MANUAL INSTRUCTION
|
0.0000(lbs); 0.000
|
