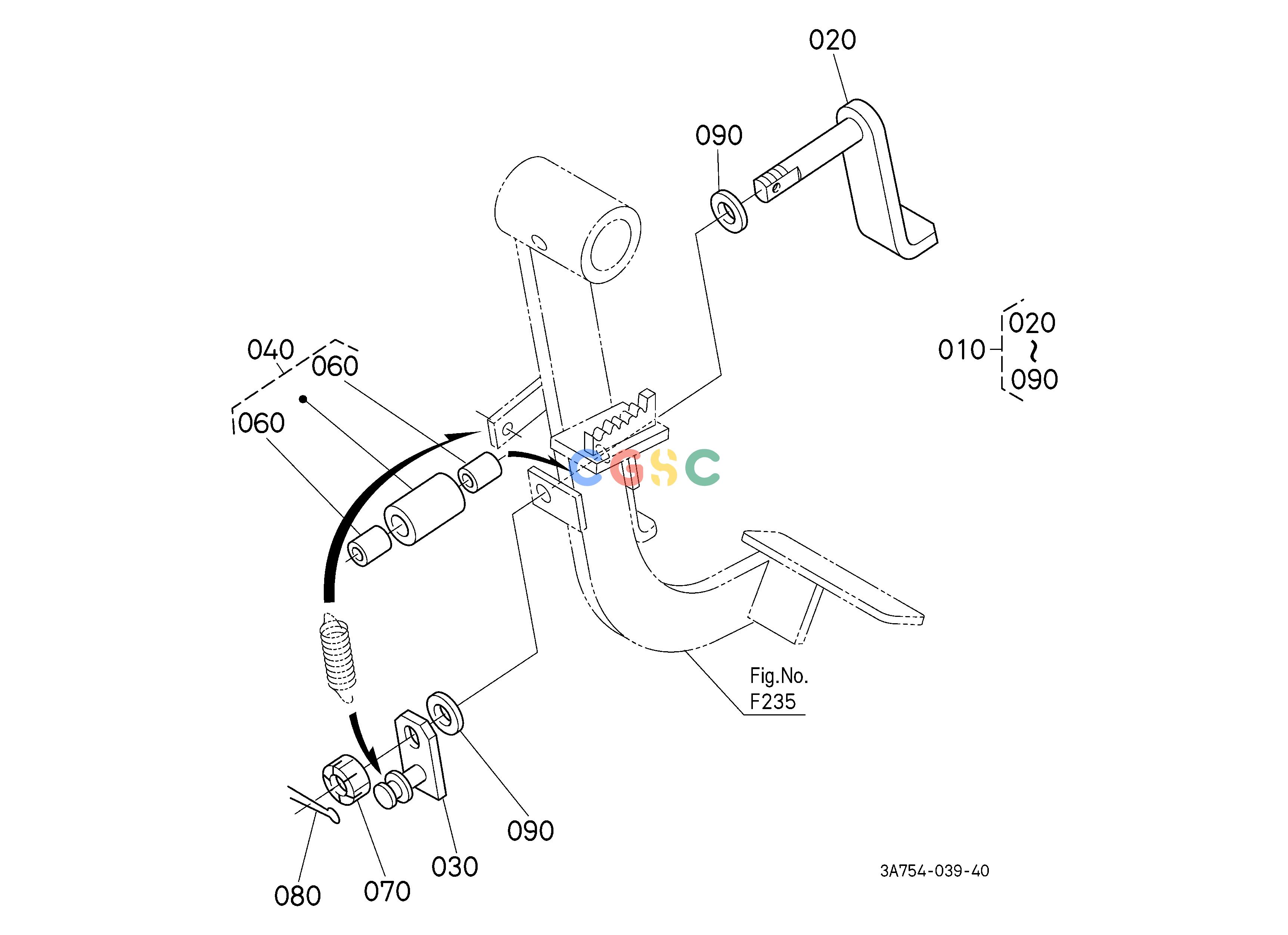

久保田零件查询U35500 LEVER JOINT STAY KIT [OPTION] ## S.No.;B:50008 to 50876 OPTIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
862 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3A75197020
|
[1] |
KIT,LEVER JOINT STAY
|
0.4180(lbs); 0.190
|
| 020. |
3A75197640
|
[1] |
LEVER,JOINT STAY
|
0.2090(lbs); 0.095
|
| 030. |
3A75197650
|
[1] |
LEVER,JOINT STAY
|
0.0682(lbs); 0.031
|
| 040. |
3A75197670
|
[1] |
ASSY COLLAR,JOINT
|
0.1210(lbs); 0.055
|
| 060. |
0851100812
|
[2] |
BUSH
|
0.0220(lbs); 0.010
|
| 070. |
0225450080
|
[1] |
NUT,SLOTTED
|
0.0132(lbs); 0.006
|
| 080. |
0551150218
|
[1] |
PIN,SPLIT
|
0.0022(lbs); 0.001
|
| 090. |
0401250080
|
[2] |
WASHER,PLAIN
|
0.0022(lbs); 0.001
|
