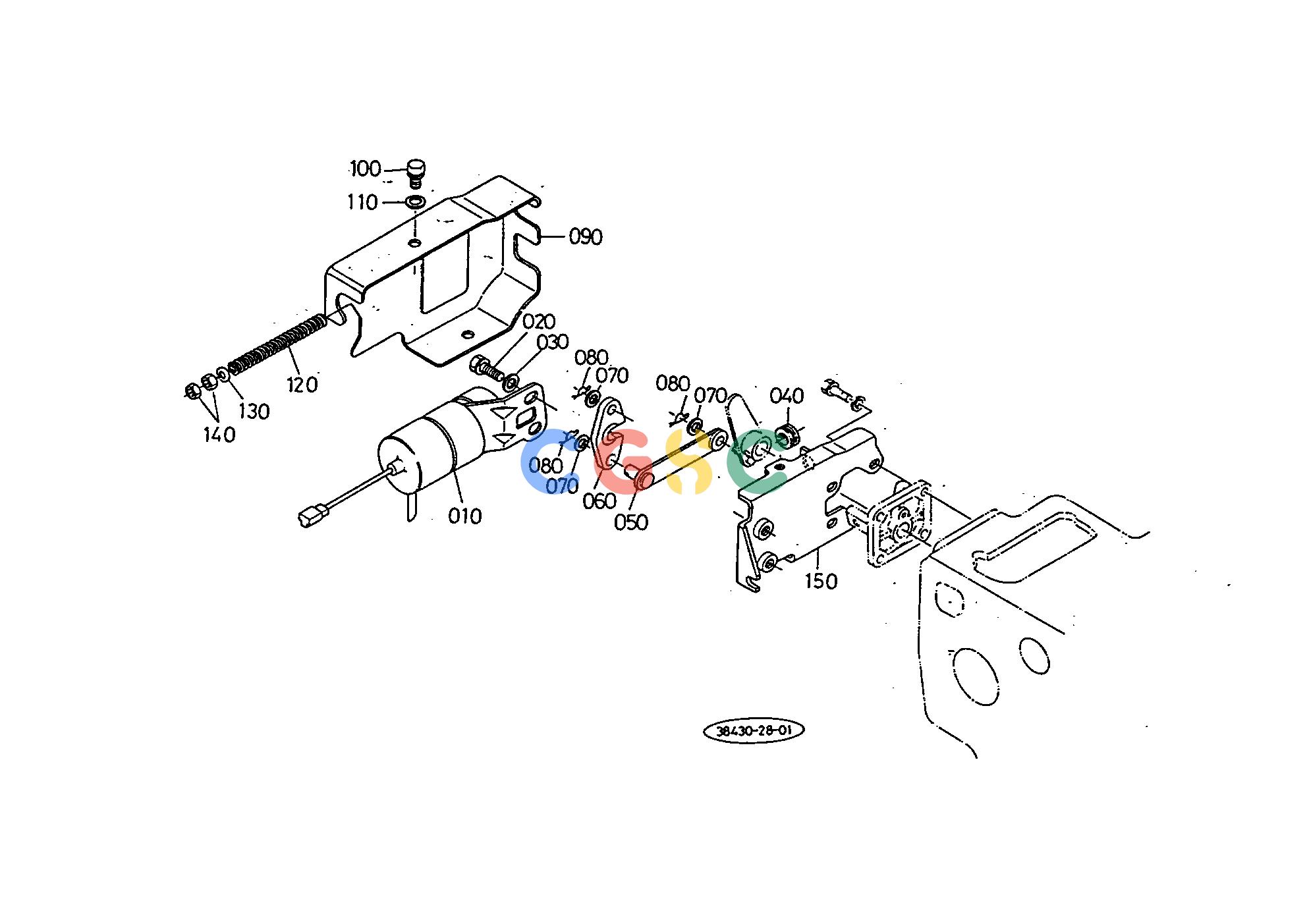

久保田零件查询E01600 STOP SOLENOID ENGINEEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
818 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1547160010
|
[1] |
SOLENOID
|
0.7700(lbs); 0.350
|
| 020. |
0112350816
|
[2] |
BOLT
|
0.0242(lbs); 0.011
|
| 030. |
0401250080
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 040. |
6659154580
|
[1] |
RUBBER RELEASE ROD
|
0.0044(lbs); 0.002
|
| 050. |
1547160150
|
[1] |
LEVER STOP
|
0.0000(lbs); 0.000
|
| 060. |
1547160162
|
[1] |
LEVER STOP
|
0.0154(lbs); 0.007
|
| 070. |
0401250060
|
[3] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 080. |
1547194810
|
[3] |
PIN SNAP
|
0.0000(lbs); 0.000
|
| 090. |
1546160120
|
[1] |
COVER SOLENOID
|
0.3520(lbs); 0.160
|
| 100. |
0102350612
|
[2] |
BOLT
|
0.0110(lbs); 0.005
|
| 110. |
0401250060
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 120. |
1547160250
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 130. |
0401250060
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 140. |
0201250060
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
| 150. |
1547160110
|
[1] |
SUPPORT SOLENOID
|
0.6490(lbs); 0.295
|
