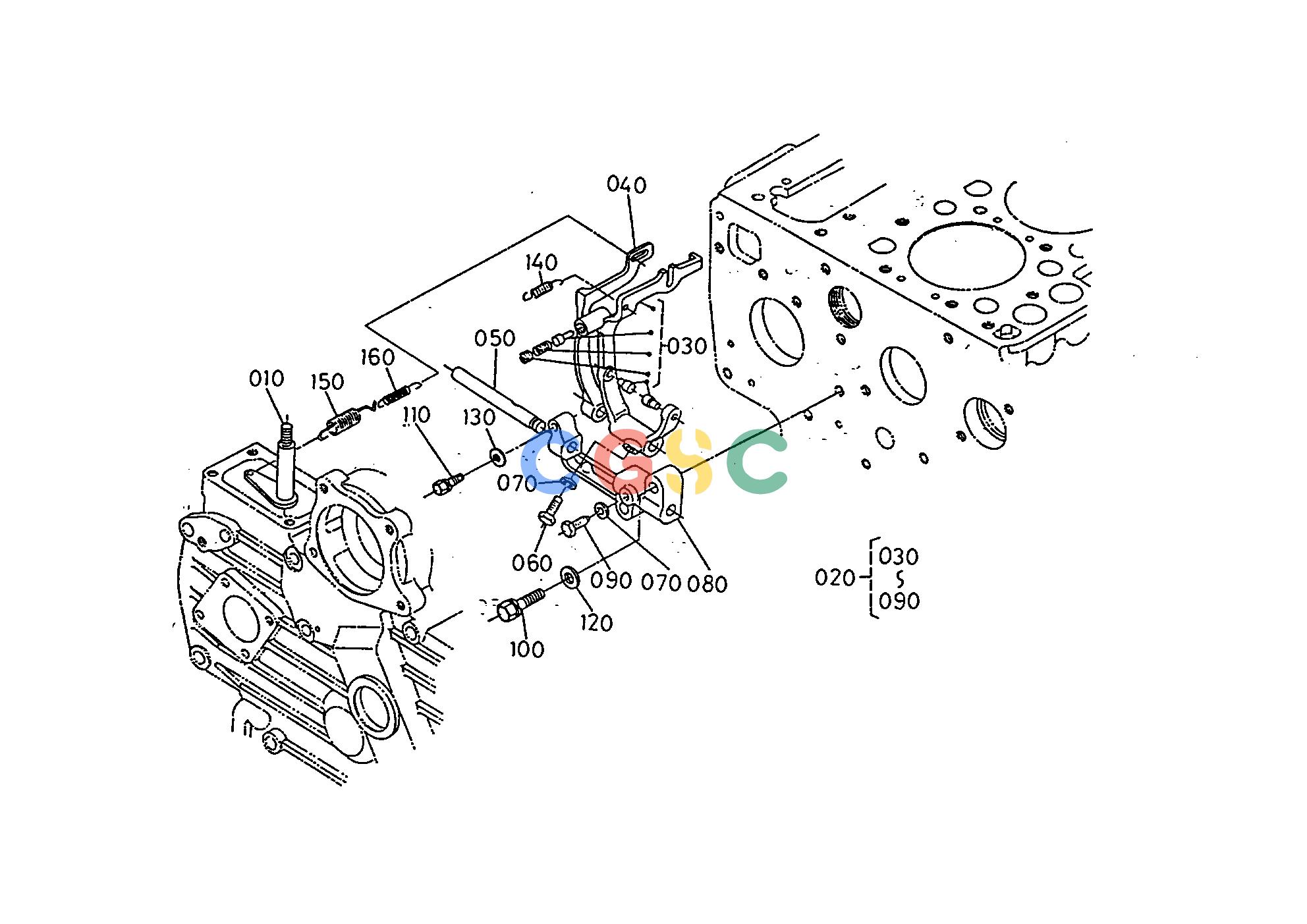

久保田零件查询E01700 GOVERNOR ENGINEEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
820 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1560156020
|
[1] |
COMP.LEVER GOVERNOR
|
0.1210(lbs); 0.055
|
| 020. |
1562156050
|
[1] |
ASSY LEVER FORK
|
0.8800(lbs); 0.400
|
| 030. |
1562156040
|
[1] |
COMP.LEVER FORK
|
0.4400(lbs); 0.200
|
| 040. |
1561156130
|
[1] |
LEVER FORK
|
0.1540(lbs); 0.070
|
| 050. |
1522156150
|
[1] |
SHAFT FORK LEVER
|
0.1210(lbs); 0.055
|
| 060. |
1502156240
|
[1] |
BOLT LEVER SHAFT
|
0.0110(lbs); 0.005
|
| 070. |
0451250060
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 080. |
1522156230
|
[1] |
HOLDER FORK LEVER
|
0.2200(lbs); 0.100
|
| 090. |
1522166410
|
[1] |
BOLT
|
0.0110(lbs); 0.005
|
| 100. |
0112350832
|
[2] |
BOLT
|
0.0352(lbs); 0.016
|
| 110. |
0102350628
|
[1] |
BOLT
|
0.0330(lbs); 0.015
|
| 120. |
0401250080
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 130. |
0401250060
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 140. |
1561156480
|
[1] |
SPRING START
|
0.0022(lbs); 0.001
|
| 150. |
1561156410
|
[1] |
SPRING GOVERNOR
|
0.0110(lbs); 0.005
|
| 160. |
1561156420
|
[1] |
SPRING GOVERNOR
|
0.0044(lbs); 0.002
|
