久保田零件查询N16500 OUTER ROOF CABEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
759 次

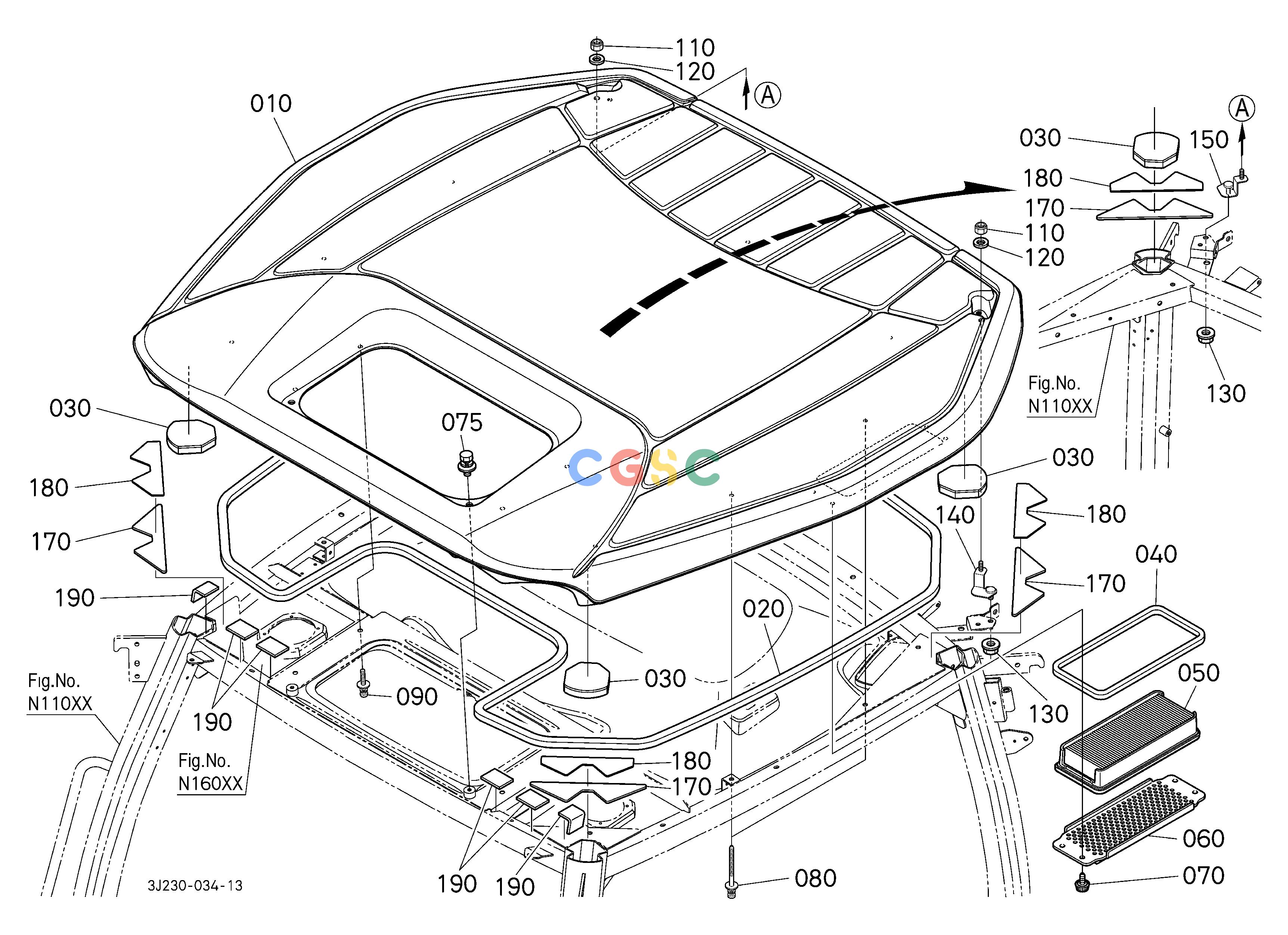

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3J08010010
|
[1] |
ROOF(OUTER)
|
44.0000(lbs); 20.000
|
| 010. |
3J08010012
|
[1] |
ROOF(OUTER)
|
35.2000(lbs); 16.000
|
| 020. |
3J08013450
|
[1] |
SHIELD(OUTER ROOF)
|
0.5280(lbs); 0.240
|
| 030. |
3Y20571530
|
[4] |
GASKET
|
0.0506(lbs); 0.023
|
| 040. |
3A85171520
|
[1] |
SPONGE,FRESH AIR FILTER
|
0.0220(lbs); 0.010
|
| 050. |
T185571600
|
[1] |
FILTER
|
0.5940(lbs); 0.270
|
| 060. |
3C58156320
|
[1] |
PLATE,FILTER
|
0.3960(lbs); 0.180
|
| 070. |
3691956530
|
[4] |
SCREW
|
0.0198(lbs); 0.009
|
| 075. |
0112550820
|
[2] |
BOLT,W SEMS
|
0.0308(lbs); 0.014
|
| 080. |
3G71056350
|
[9] |
SCREW
|
0.0352(lbs); 0.016
|
| 080. |
3S20556350
|
[9] |
SCREW,MACHINE(W SEMS,M6X85)
|
0.0396(lbs); 0.018
|
| 090. |
3Y20571550
|
[4] |
SCREW,W. WASH.(M6X40)
|
0.0198(lbs); 0.009
|
| 090. |
3S20571550
|
[4] |
SCREW,MACHINE(W SEMS,M6X40)
|
0.0264(lbs); 0.012
|
| 110. |
0255250080
|
[2] |
NUT,LOCKING
|
0.0110(lbs); 0.005
|
| 120. |
0401350080
|
[2] |
WASHER,PLAIN
|
0.0066(lbs); 0.003
|
| 130. |
3J09929820
|
[2] |
NUT(EN 1661,M10,C8)
|
0.0264(lbs); 0.012
|
| 140. |
3J08010540
|
[1] |
BRACKET(OUTER,ROOF,LH)
|
0.1892(lbs); 0.086
|
| 150. |
3J08010550
|
[1] |
BRACKET(OUTER,ROOF,RH)
|
0.1914(lbs); 0.087
|
| 170. |
3Y20571540
|
[4] |
PACKING,FRAME,ROOF,1
|
0.0154(lbs); 0.007
|
| 180. |
3Y20571560
|
[4] |
PACKING,FRAME,ROOF,2
|
0.0066(lbs); 0.003
|
| 190. |
3G71071540
|
[10] |
PACKING
|
0.0044(lbs); 0.002
|
