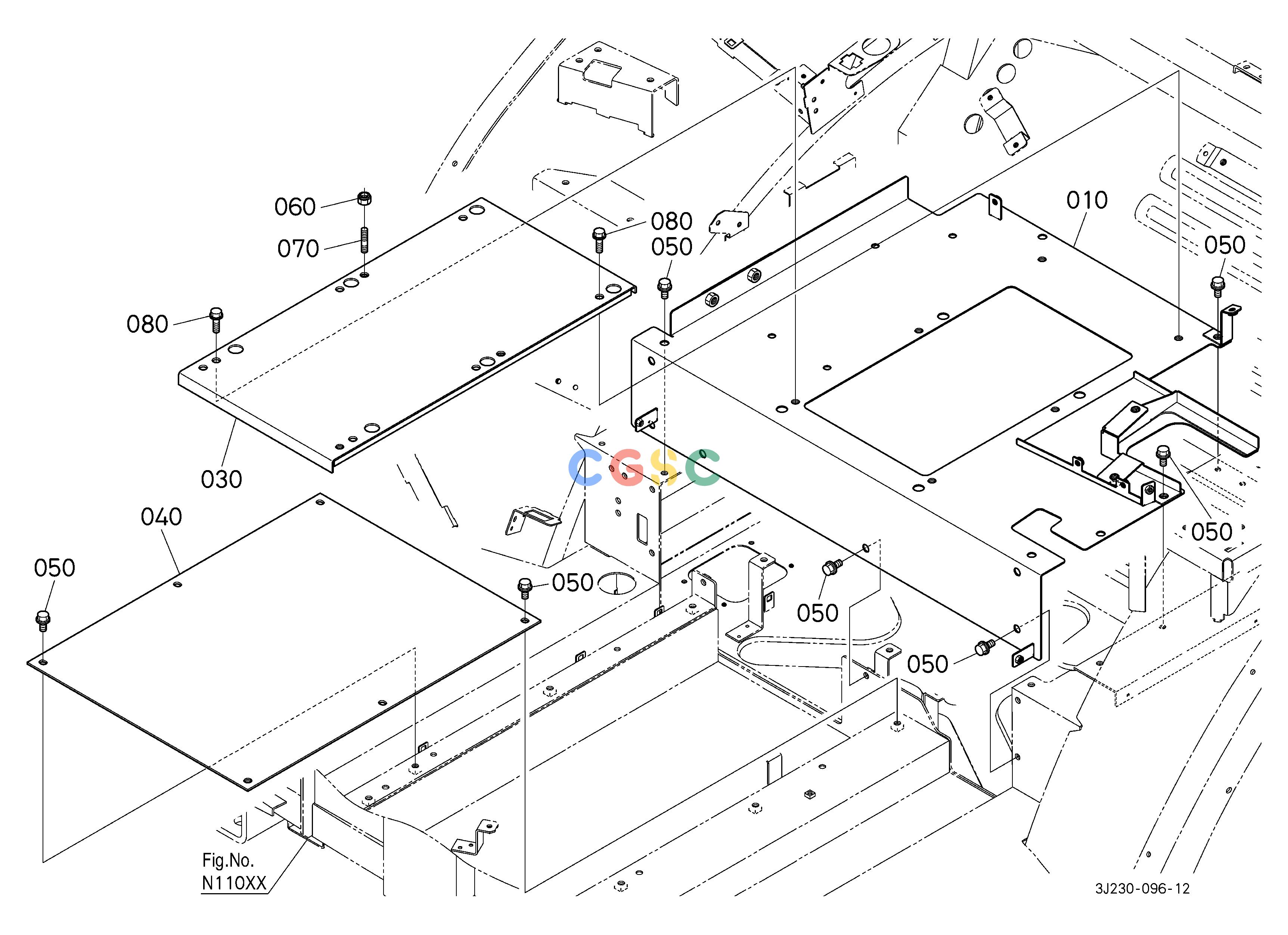

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 010. | 3J02964552 | [1] | BRACKET(SEAT) | 16.8300(lbs); 7.650 |
| 030. | 3J03133400 | [1] | COVER(SEAT) | 13.2000(lbs); 6.000 |
| 040. | 3J03043810 | [1] | PLATE(STEP) | 12.0560(lbs); 5.480 |
| 050. | 0175450816 | [16] | BOLT,FLANGE | 0.0242(lbs); 0.011 |
| 060. | 0255250080 | [4] | NUT,LOCKING | 0.0110(lbs); 0.005 |
| 070. | 0151350825 | [4] | BOLT,STUD | 0.0660(lbs); 0.030 |
| 080. | 0175450825 | [6] | BOLT,FLANGE | 0.0220(lbs); 0.010 |
