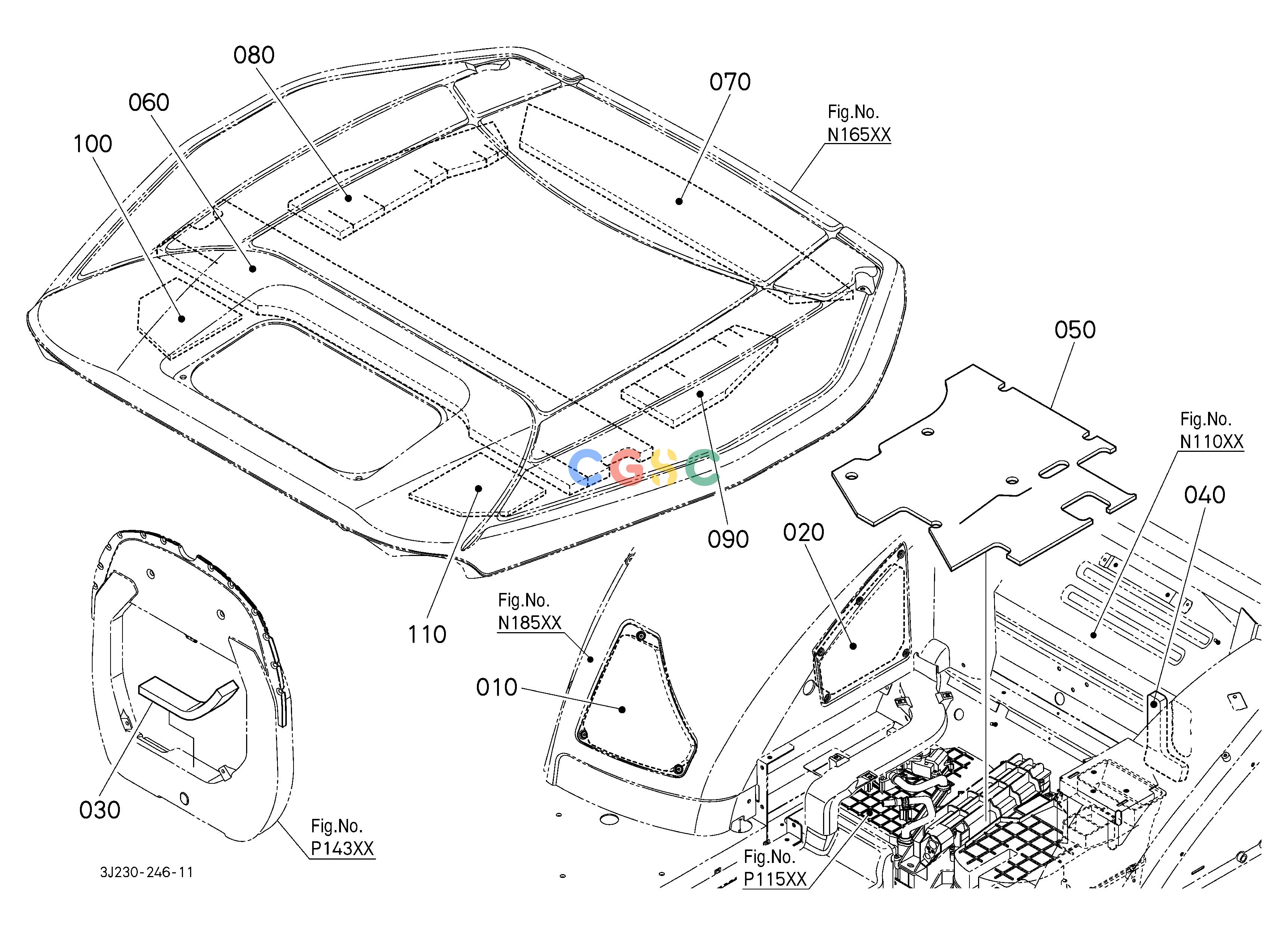

久保田零件查询N18200 SOUNDPROOF MATERIAL 4 (ROOF) CABEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
331 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3J08013150
|
[1] |
ABSORBER,SOUND(CONSOLE,RH,1)
|
0.2178(lbs); 0.099
|
| 020. |
3J08013160
|
[1] |
ABSORBER,SOUND(CONSOLE,RH,2)
|
0.2244(lbs); 0.102
|
| 030. |
3J08013170
|
[1] |
ABSORBER,SOUND(DUCT,DEFROST)
|
0.0792(lbs); 0.036
|
| 040. |
3J08013180
|
[1] |
ABSORBER,SOUND(DAMPER,AIR)
|
0.0484(lbs); 0.022
|
| 050. |
3J08013192
|
[1] |
ABSORBER,SOUND(FLOOR,AC)
|
0.5940(lbs); 0.270
|
| 060. |
3J08013200
|
[1] |
ABSORBER,SOUND(OUTER ROOF,1)
|
1.8920(lbs); 0.860
|
| 070. |
3J08013210
|
[1] |
ABSORBER,SOUND(OUTER ROOF,2)
|
0.6380(lbs); 0.290
|
| 080. |
3J08013220
|
[1] |
ABSORBER,SOUND(OUTER ROOF,3)
|
0.3630(lbs); 0.165
|
| 090. |
3J08013230
|
[1] |
ABSORBER,SOUND(OUTER ROOF,4)
|
0.2816(lbs); 0.128
|
| 100. |
3J08013250
|
[1] |
ABSORBER,SOUND(OUTER ROOF,6)
|
0.0924(lbs); 0.042
|
| 110. |
3J08013260
|
[1] |
ABSORBER,SOUND(OUTER ROOF,7)
|
0.0814(lbs); 0.037
|
