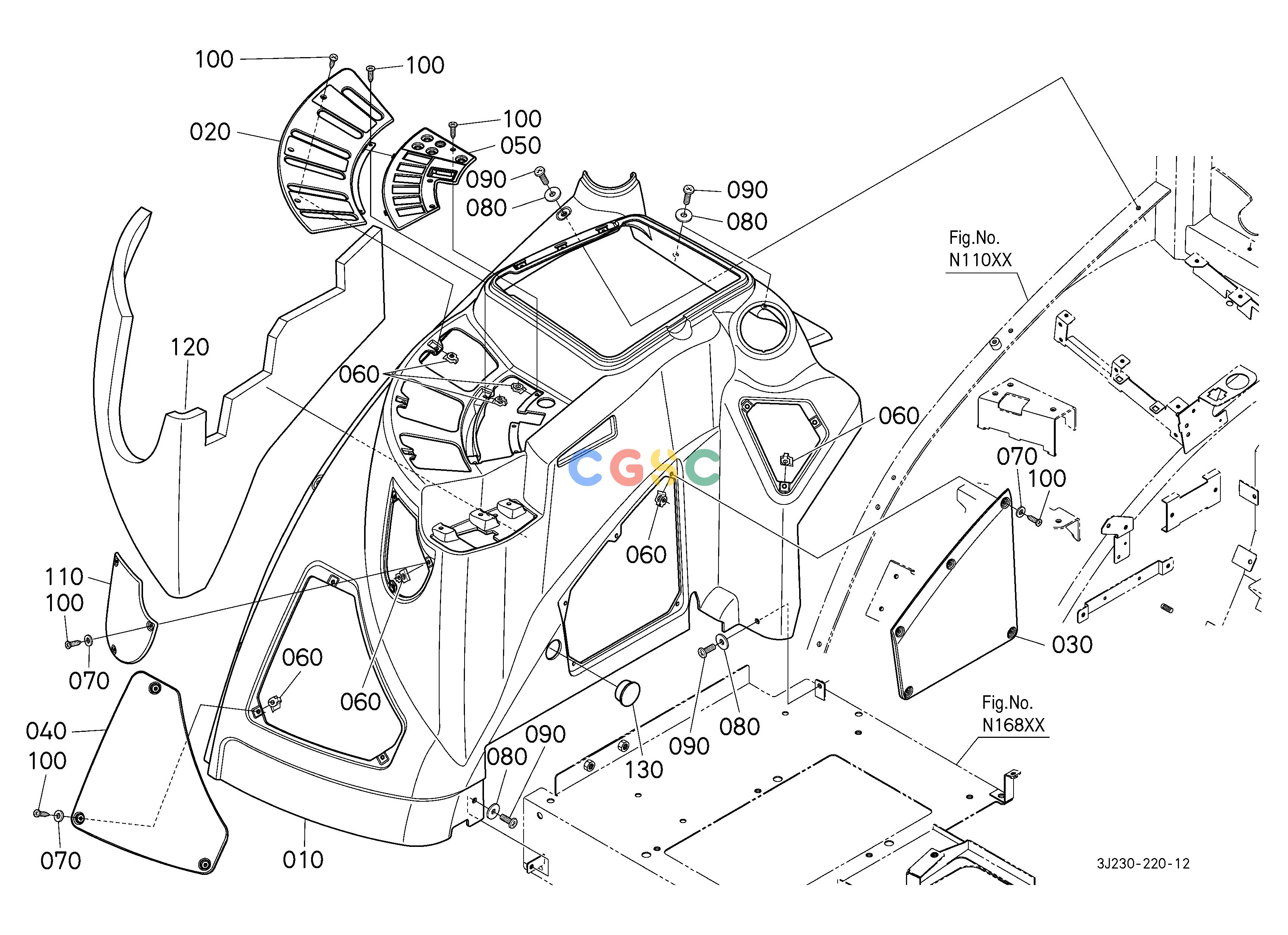

久保田零件查询N18502 SHIFT COVER CABEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
622 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3J02893873
|
[1] |
CONSOLE(RH,S)
|
7.7000(lbs); 3.500
|
| 020. |
3J02909572
|
[1] |
COVER(PTO,S)
|
0.2574(lbs); 0.117
|
| 030. |
3J02800472
|
[1] |
COVER(ECU,RH)
|
0.5214(lbs); 0.237
|
| 040. |
3J02909510
|
[1] |
COVER(FRONT,ECU)
|
0.3850(lbs); 0.175
|
| 050. |
3J02909592
|
[1] |
COVER(SWITCH,S)
|
0.1078(lbs); 0.049
|
| 060. |
3J02800770
|
[22] |
NUT(SPEED)
|
0.0022(lbs); 0.001
|
| 070. |
3J09934596
|
[11] |
WASHER,PLAIN(I7091,M4,HV100,A3
|
0.0022(lbs); 0.001
|
| 080. |
0401550060
|
[8] |
WASHER,PLAIN
|
0.0132(lbs); 0.006
|
| 090. |
0301450620
|
[8] |
SCREW,PAN HEAD(PHILLIPS)
|
0.0110(lbs); 0.005
|
| 100. |
3J09901259
|
[19] |
SCREW(I7049,M3.5-16)
|
0.0022(lbs); 0.001
|
| 110. |
3J03111740
|
[1] |
COVER(FL)
|
0.1496(lbs); 0.068
|
| 120. |
3J03322490
|
[1] |
ABSORBER(ACOUSTIC,46)
|
0.3630(lbs); 0.165
|
| 130. |
3J07012320
|
[1] |
PLUG
|
0.0000(lbs); 0.000
|
