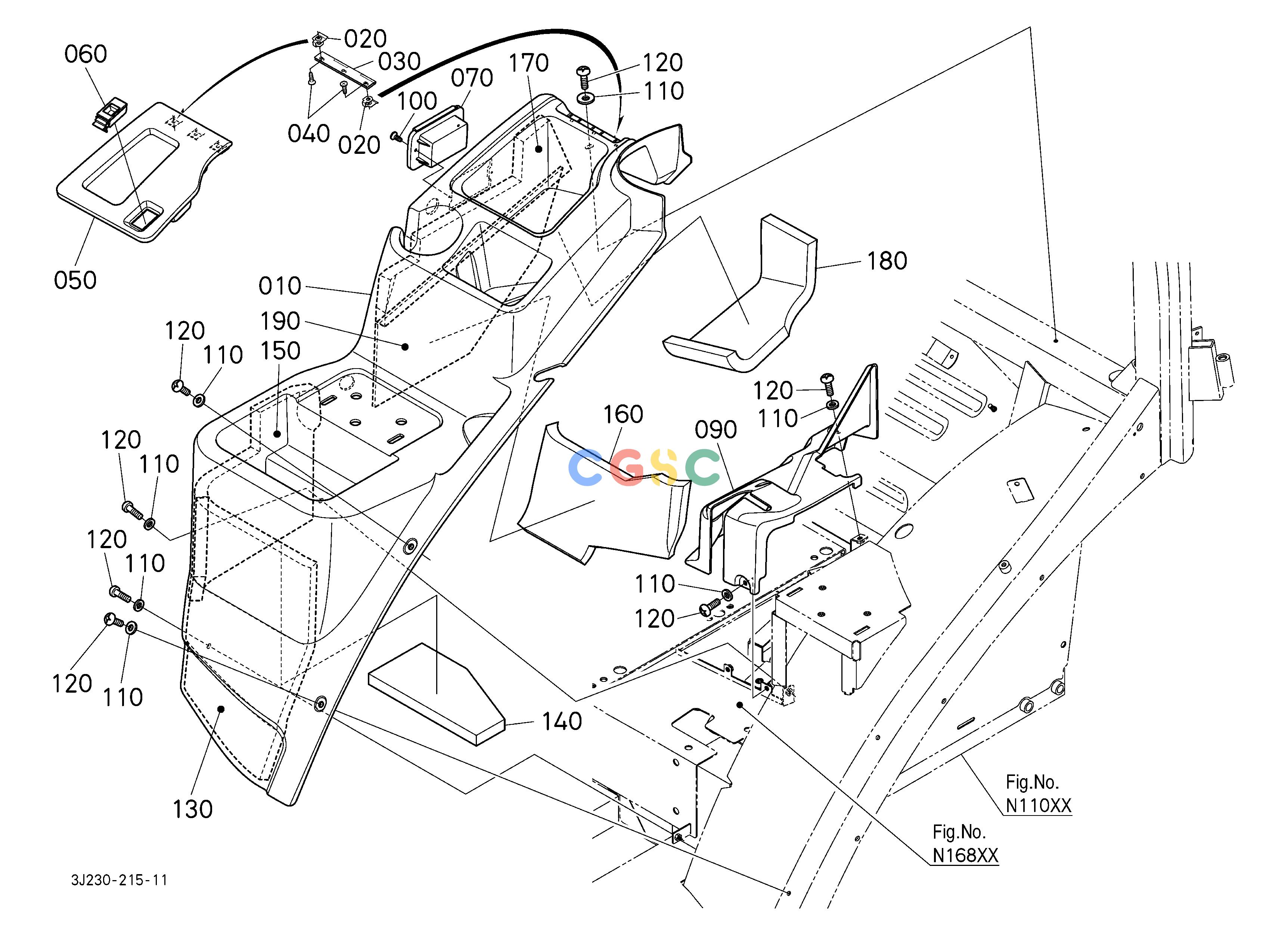

久保田零件查询N18800 CONSOLE LH CABEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
657 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3J03048960
|
[1] |
CONSOLE(LH)
|
10.3840(lbs); 4.720
|
| 020. |
3J02800770
|
[6] |
NUT(SPEED)
|
0.0022(lbs); 0.001
|
| 030. |
3J02925070
|
[1] |
HINGE(COVER,LH)
|
0.1056(lbs); 0.048
|
| 040. |
3J09932763
|
[6] |
SCREW,TAPPING(I7050,ST3.5-13)
|
0.0022(lbs); 0.001
|
| 050. |
3J02775250
|
[1] |
COVER(CONSOLE,BOX,LH)
|
0.7700(lbs); 0.350
|
| 060. |
3J02923450
|
[1] |
PLUG
|
0.0242(lbs); 0.011
|
| 070. |
3J02923470
|
[1] |
ASHTRAY
|
0.3168(lbs); 0.144
|
| 090. |
3J02971302
|
[1] |
COVER(PARKING)
|
0.6160(lbs); 0.280
|
| 100. |
3J09932762
|
[2] |
SCREW,TAPPING(I7050,ST3.5-9.5)
|
0.0022(lbs); 0.001
|
| 110. |
0401550060
|
[7] |
WASHER,PLAIN
|
0.0132(lbs); 0.006
|
| 120. |
0301450620
|
[7] |
SCREW,PAN HEAD(PHILLIPS)
|
0.0110(lbs); 0.005
|
| 130. |
3J03322760
|
[1] |
ABSORBER(ACOUSTIC,55)
|
0.2640(lbs); 0.120
|
| 140. |
3J03322770
|
[1] |
ABSORBER(ACOUSTIC,56)
|
0.0550(lbs); 0.025
|
| 150. |
3J03322780
|
[1] |
ABSORBER(ACOUSTIC,57)
|
0.1540(lbs); 0.070
|
| 160. |
3J03322790
|
[1] |
ABSORBER(ACOUSTIC,58)
|
0.1320(lbs); 0.060
|
| 170. |
3J03322800
|
[1] |
ABSORBER(ACOUSTIC,59)
|
0.0770(lbs); 0.035
|
| 180. |
3J03322810
|
[1] |
ABSORBER(ACOUSTIC,60)
|
0.0880(lbs); 0.040
|
| 190. |
3J03322860
|
[1] |
ABSORBER(ACOUSTIC,61)
|
0.0506(lbs); 0.023
|
