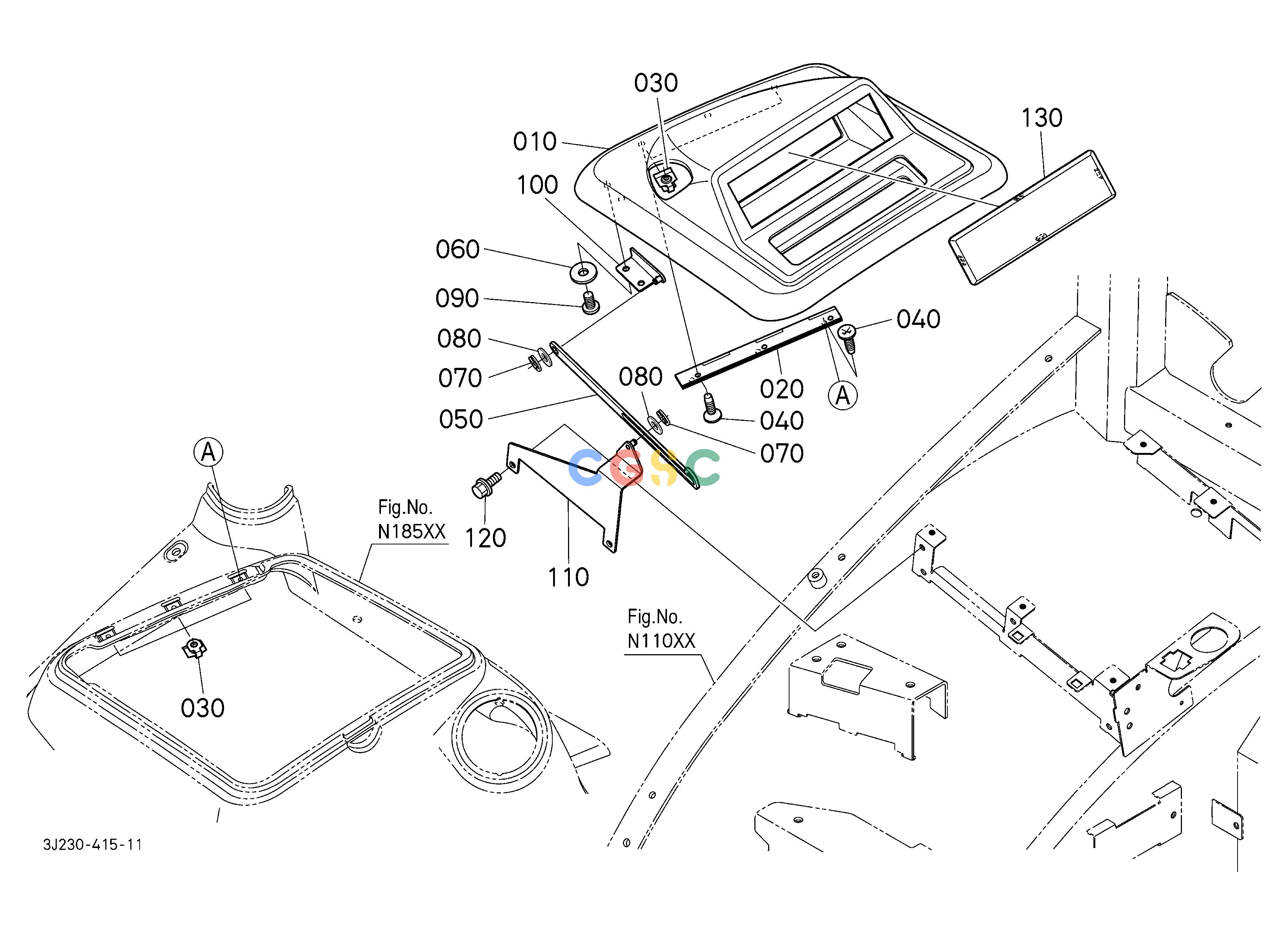

久保田零件查询N18700 RADIO COVER AND AIR CONDITIONER CONTROL PANEL COVER CABEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
400 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3J02953582
|
[1] |
COVER(RADIO)
|
1.1000(lbs); 0.500
|
| 020. |
3J02841440
|
[1] |
HINGE
|
0.1562(lbs); 0.071
|
| 030. |
3J02800770
|
[6] |
NUT(SPEED)
|
0.0022(lbs); 0.001
|
| 040. |
3J09932763
|
[6] |
SCREW,TAPPING(I7050,ST3.5-13)
|
0.0022(lbs); 0.001
|
| 050. |
3J02993900
|
[1] |
PLATE
|
0.0506(lbs); 0.023
|
| 060. |
0401550060
|
[2] |
WASHER,PLAIN
|
0.0132(lbs); 0.006
|
| 070. |
0461350040
|
[2] |
CIR-CLIP,EXTERNAL
|
0.0022(lbs); 0.001
|
| 080. |
0401550050
|
[2] |
WASHER,PLAIN
|
0.0088(lbs); 0.004
|
| 090. |
0301450612
|
[2] |
SCREW,PAN HEAD(PHILLIPS)
|
0.0066(lbs); 0.003
|
| 100. |
3J02989332
|
[1] |
BRACKET(COVER,RADIO)
|
0.0440(lbs); 0.020
|
| 110. |
3J03183370
|
[1] |
BRACKET
|
0.3300(lbs); 0.150
|
| 120. |
0175450610
|
[2] |
BOLT,FLANGE
|
0.0132(lbs); 0.006
|
| 130. |
3C58172610
|
[1] |
COVER,RADIO CASSETTE
|
0.0660(lbs); 0.030
|
