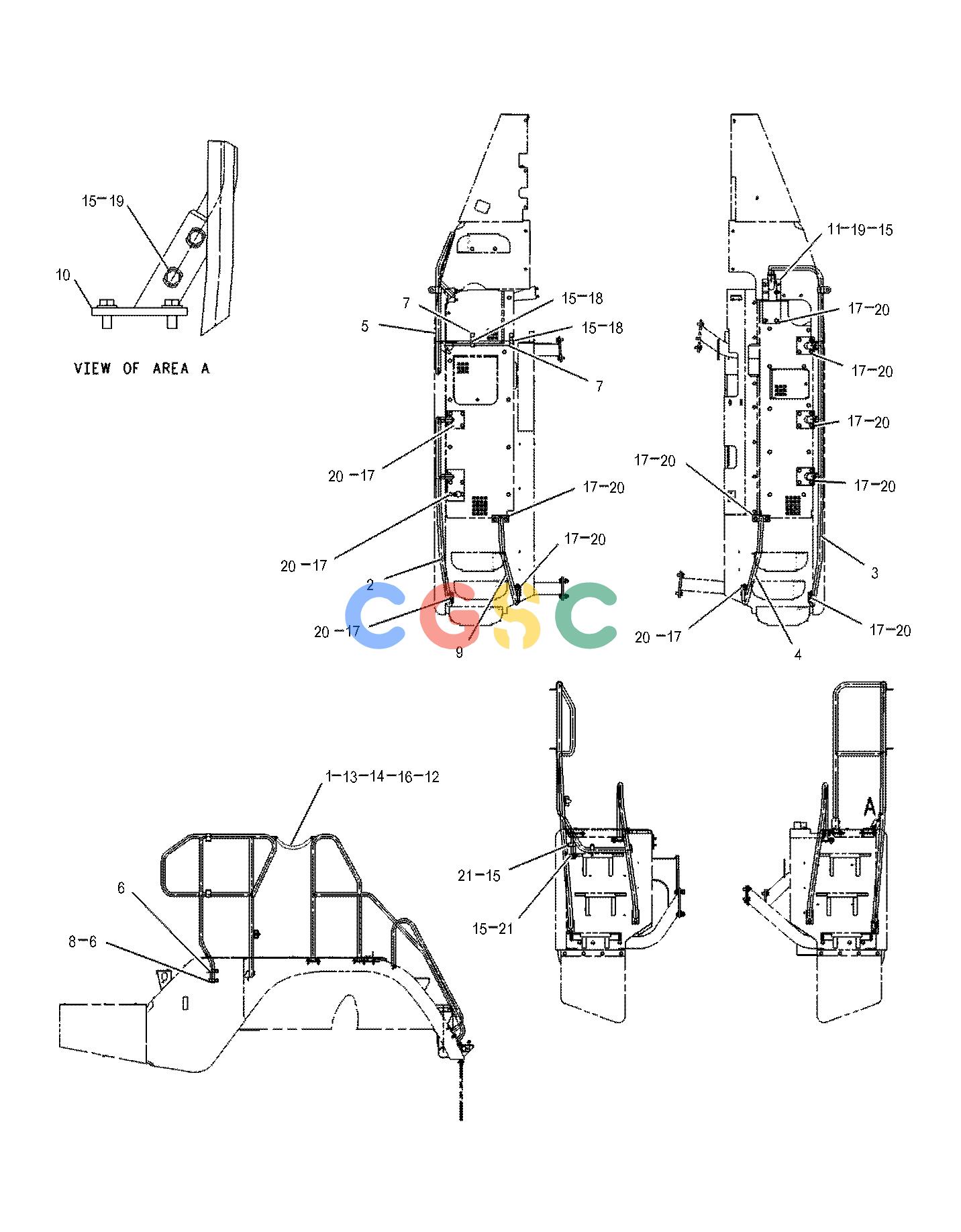

卡特零件查询（730） 149-0105: GUARD GP-PLATFORM
广数供应链运营团队, 19 02月, 2025，浏览：
918 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7I-5783 | [1] | CHAIN | |
| 2. | 167-1484 | [1] | GUARD AS(REAR, LH) | |
| 3. | 167-1486 | [1] | GUARD AS(RH) | |
| 4. | 180-4572 | [1] | HANDRAIL AS(RH) | |
| 5. | 193-8023Y | [1] | GUARD GP-PLATFORM(FRONT, LH) | |
| 6. | 193-8079 | [2] | CLAMP | |
| 7. | 193-8080 | [2] | CLAMP | |
| 8. | 193-8084B | [6] | SHIM | |
| 9. | 194-6930 | [1] | HANDRAIL AS(LH) | |
| 10. | 200-5645 | [3] | BRACKET AS | |
| 11. | 200-5648 | [1] | BRACKET AS | |
| 12. | 203-1027 | [1] | HOSE | |
| 13. | 5P-4115 | [4] | WASHER-HARD(7.2X19X2-MM THK) | |
| 14. | 6V-7743M | [2] | LOCKNUT(M6X1-THD) | |
| 15. | 8T-4121 | [14] | WASHER-HARD(11X21X2.5-MM THK) | |
| 16. | 8T-4138M | [2] | BOLT(M6X1X20-MM) | |
| 17. | 8T-4139M | [36] | BOLT(M12X1.75X30-MM) | |
| 18. | 8T-4172M | [2] | BOLT(M10X1.5X80-MM) | |
| 19. | 8T-4195M | [8] | BOLT(M10X1.5X30-MM) | |
| 20. | 8T-4223 | [36] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 21. | 8T-5005M | [4] | BOLT(M10X1.5X70-MM) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
