约翰迪尔零件查询600 - AMT BRAKE LEVEREPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
660 次

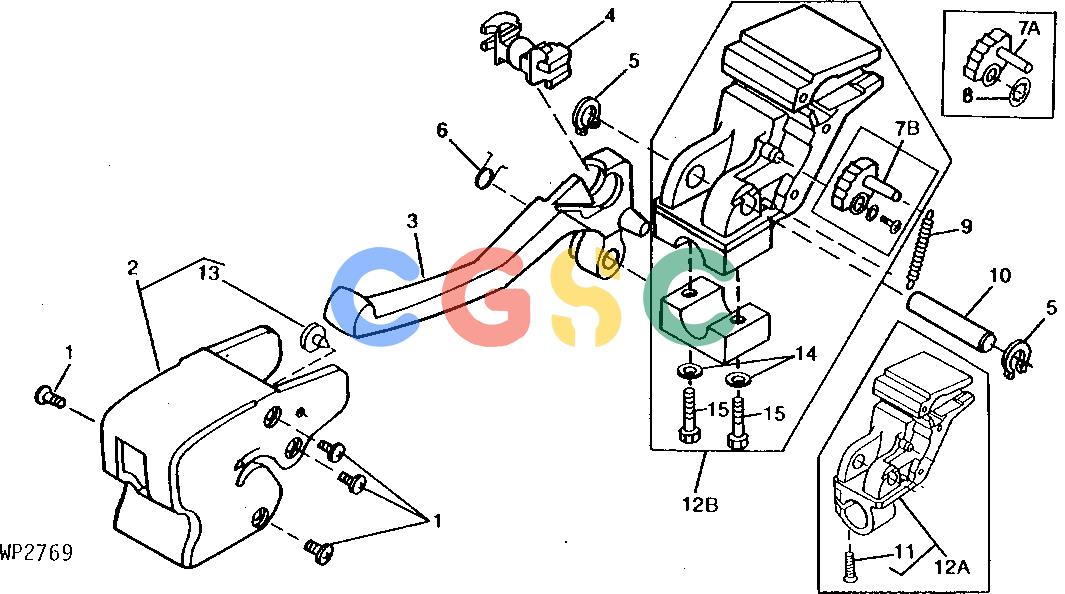

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
W39787
|
[4] |
Screw
|
|
| 2. |
RE32914
|
[1] |
Cover
|
|
| 3. |
RE32915
|
[1] |
Lever
|
|
| 4. |
RE32913
|
[1] |
Balancer
|
|
| 5. |
R93125
|
[2] |
Snap Ring
|
|
| 6. |
W40312
|
[1] |
Torsion Spring
|
|
| 7A. |
W39632
|
[1] |
Cam
|
|
| 7B. |
AW26972
|
[1] |
Cam
|
|
| 8. |
W39633
|
[1] |
Push Nut
|
|
| 9. |
W39634
|
[1] |
Spring
|
|
| 10. |
R93124
|
[1] |
Pin
|
|
| 11. |
21M7022
|
[1] |
Screw
|
|
| 12A. |
AM108504
|
[1] |
Housing
|
|
| 12B. |
AM116519
|
[1] |
Housing
|
|
| 13. |
W40790
|
[2] |
Plug
|
|
| 14. |
24M7088
|
[2] |
Washer
|
|
| 15. |
19M7177
|
[2] |
Cap Screw
|
|
