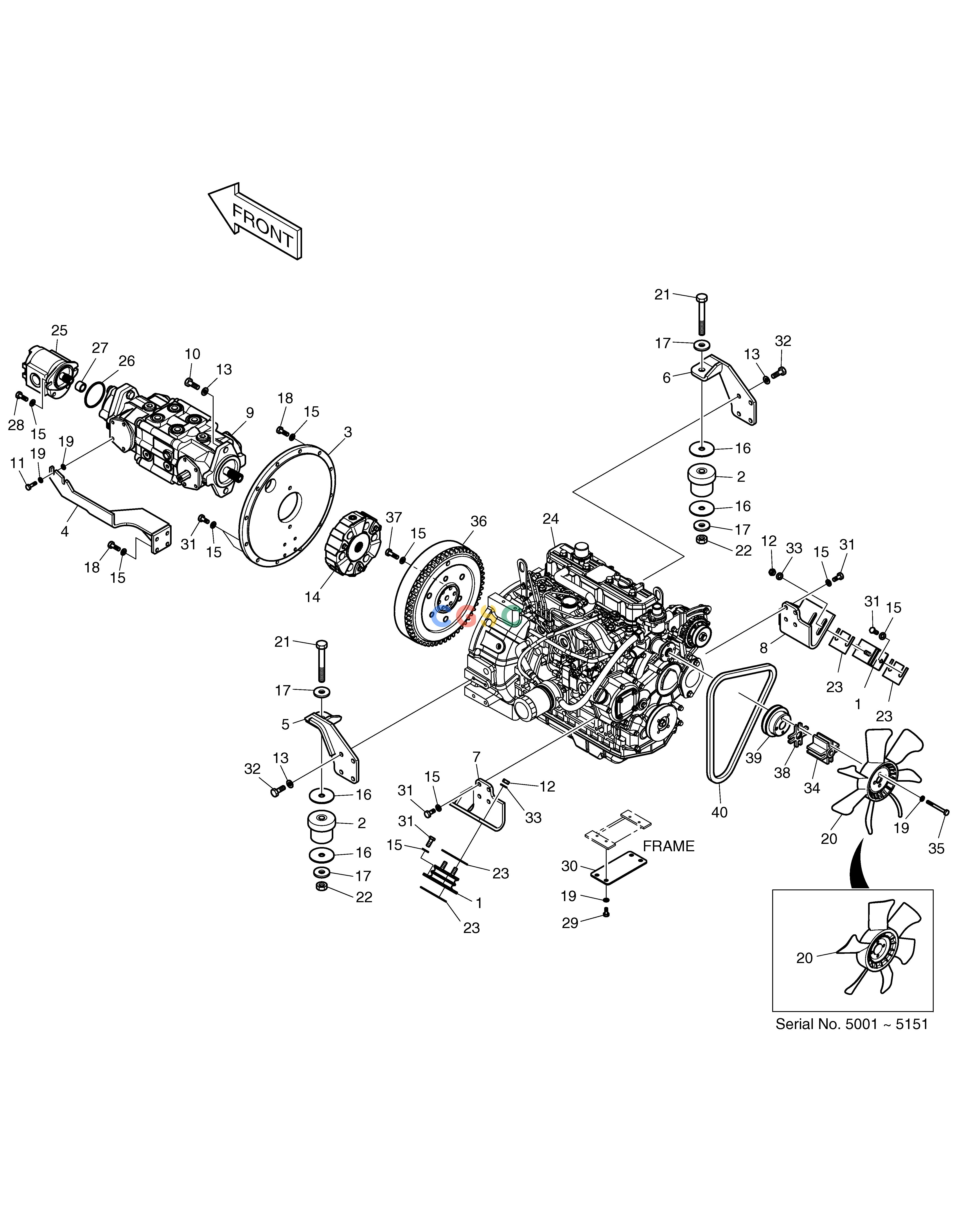

斗山零件查询ENGINE & PUMP MOUNTING 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
724 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1021266B
|
[-] |
ENGINE & PUMP ASS'Y
|
|
| 1. |
K1019643
|
[2] |
RUBBER;ENGINE MOUNT
|
|
| 10. |
K1023112
|
[2] |
BOLT
|
|
| 11. |
S0555963
|
[2] |
BOLT
|
|
| 12. |
K1023114
|
[4] |
NUT;LOCK
|
|
| 13. |
DS0401100
|
[10] |
WASHER;HARDENED
|
|
| 14. |
K1020059
|
[1] |
COUPLING;PUMP
|
|
| 15. |
K1023147
|
[36] |
WASHER;HARDENED
|
|
| 16. |
K1023153
|
[4] |
WASHER
|
|
| 17. |
K1023158
|
[4] |
WASHER;HARDENED
|
|
| 18. |
S0512263
|
[12] |
BOLT
|
|
| 19. |
K1023154
|
[12] |
WASHER;HARDENED
|
|
| 2. |
K1019644
|
[2] |
RUBBER;ENGINE MOUNT
|
|
| 20. |
K1022359
|
[1] |
FAN;COOLING
|
K1027855
|
| 20. |
K1027855
|
[1] |
FAN;COOLING
|
|
| 21. |
S0566863
|
[2] |
BOLT
|
|
| 22. |
K1023120
|
[2] |
NUT;LOCK
|
|
| 23. |
K1022293
|
[4] |
SPACER
|
|
| 24. |
K1022351
|
[1] |
ENGINE ASS'Y
|
|
| 24. |
K1022351A
|
[1] |
ENGINE ASS'Y
|
|
| 25. |
K1022683
|
[1] |
PUMP;GEAR
|
|
| 26. |
K1022682
|
[1] |
O-RING;SEAL
|
|
| 27. |
K1022686
|
[1] |
SPACER
|
|
| 28. |
K1023111
|
[2] |
BOLT
|
|
| 29. |
S0508863
|
[4] |
BOLT;M8X20
|
|
| 3. |
K1021522
|
[1] |
PLATE;PUMP
|
|
| 30. |
K1019995
|
[1] |
COVER
|
|
| 31. |
S0512063
|
[16] |
WASHER
|
|
| 32. |
S0515263
|
[8] |
BOLT;HEX
|
|
| 33. |
K1023155
|
[4] |
WASHER;HARDENED
|
|
| 34. |
K1022360
|
[1] |
SPACER;FAN
|
|
| 35. |
S0556963
|
[4] |
BOLT
|
|
| 35. |
S0557153
|
[4] |
BOLT M8X1.25X90
|
|
| 36. |
K1022354
|
[1] |
FLYWHEEL
|
|
| 37. |
S0758263
|
[6] |
BOLT M10X1.25X35
|
|
| 38. |
K1027856
|
[1] |
SPACER;FAN
|
|
| 39. |
K1027868
|
[1] |
PULLEY;FAN
|
|
| 4. |
K1021845
|
[1] |
BRACKET
|
|
| 40. |
K1019189
|
[1] |
BELT
|
|
| 5. |
K1021392
|
[1] |
BRACKET;ENGINE MOUNT
|
|
| 6. |
K1021393
|
[1] |
BRACKET
|
|
| 7. |
K1021398
|
[1] |
BRACKET;ENGINE MOUNT
|
|
| 8. |
K1021399
|
[1] |
BRACKET
|
|
| 9. |
K1022690
|
[1] |
PUMP;HST
|
|
