神钢零件查询(4BD1) - ISUZU DIESEL ENGINE - K905 MARK II EXCAVATORS (1/06-12/07) (01-031) - STARTER (HITACHI) (P/N-581100-1321) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
325 次

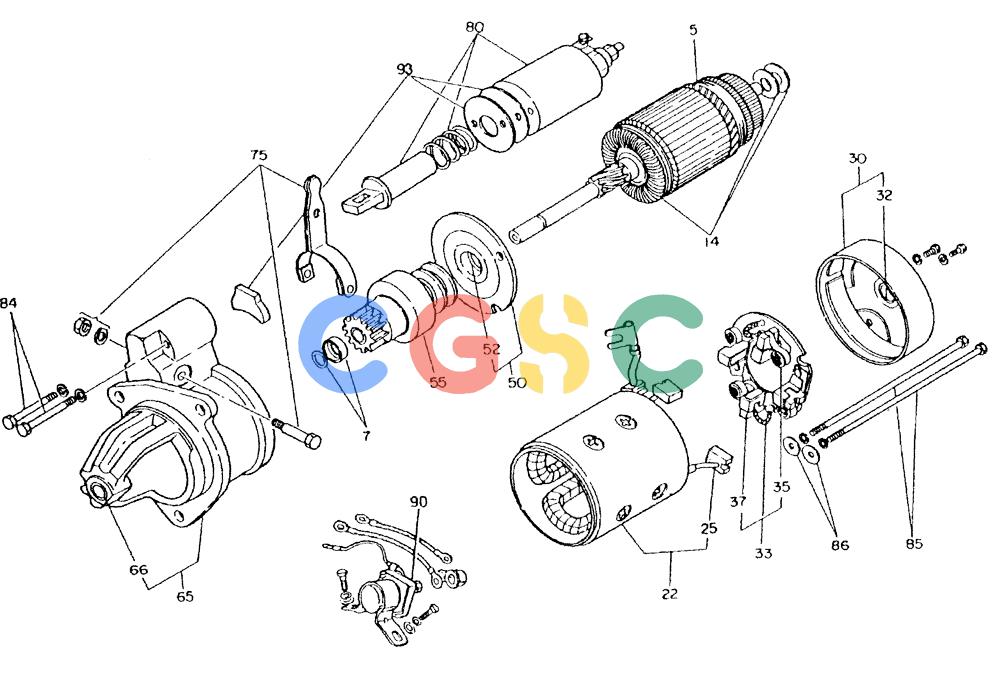

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | VI5811002170 | [1] | STARTER ASM, 24V-3.7KW | |
| . . | VI1811002321 | [1] | STARTER ASM, 24V-3.7KW | |
| . . | VI5811001282 | [1] | STARTER MOTOR | KOBSTARTER ASM, 24V-3.5KW Superseded by part number: 5811001282 |
| 5. | VI1811210200 | [1] | ARMATURE ASM. | |
| 5-1. | VI5811210400 | [1] | ARMATURE ASM. | |
| 7. | VI1811291430 | [1] | STOPPER SET, PINION | |
| 14. | VI5811290030 | [1] | WASHER SET,THRUST | |
| 22. | VI1811120330 | [1] | COIL ASM, FIELD | |
| 22-1. | VI5811120310 | [1] | COIL ASM, FIELD | |
| 25. | VI5811160170 | [2] | BRUSH, (+) | |
| 25-1. | VI5811190010 | [4] | BRUSH, ASM | |
| 30. | VI5811150130 | [1] | COVER ASM, REAR | |
| 30-1. | VI1811294440 | [1] | COVER ASM, REAR | |
| 30-2. | VI5811150540 | [1] | COVER ASM, REAR | |
| 32. | VI5811190120 | [1] | METAL, REAR | |
| 33. | VI5811180020 | [1] | HOLDER ASM., BRUSH | |
| 35. | VI5811170060 | [4] | SPRING, BRUSH | |
| 35-1. | VI5811170210 | [2] | SPRING, BRUSH | |
| 37. | VI581T160180 | [2] | BRUSH, (-) | |
| 50. | VI1811291440 | [1] | BRACKET ASM.CENTER | |
| 50-1. | VI5811190130 | [1] | BRACKET ASM.CENTER | |
| 52. | VI1811291450 | [1] | METAL, CENTER | |
| 52-1. | VI9821121340 | [1] | METAL, CENTER | |
| 55. | VI5811230190 | [1] | CLUTCH ASM, PINION | |
| 55-1. | VI5811230270 | [1] | CLUTCH ASM, PINION | |
| 65. | VI5811130790 | [1] | CASE ASM, GEAR | |
| 65-1. | VI1811130870 | [1] | CASE ASM, GEAR | |
| 65-2. | VI5811130570 | [1] | CASE ASM, GEAR | |
| 66. | VI1811290420 | [1] | METAL, FRONT | |
| 66-1. | VI5811190120 | [1] | METAL, FRONT | |
| 75. | VI1811294220 | [1] | LEVER ASM, SHIFT | |
| 75-1. | VI5811270130 | [1] | LEVER ASM, SHIFT | |
| 80. | VI1811510650 | [1] | SWITCH ASM, MAGNETIC | |
| 80-1. | VI5811510581 | [1] | SWITCH ASM, MAGNETIC | |
| 84. | VI5811290110 | [2] | BOLT, CASE | |
| 85. | VI1811291470 | [2] | BOLT, THROUGH | |
| 85-1. | VI5811290060 | [2] | BOLT,THROUGH | |
| 86. | VI5811290730 | [2] | WASHER, THROUGH | |
| 90. | VI1811710190 | [1] | RELAY ASM , STARTER | |
| 93. | VI1811294210 | [1] | COVER SET, DUST | |
