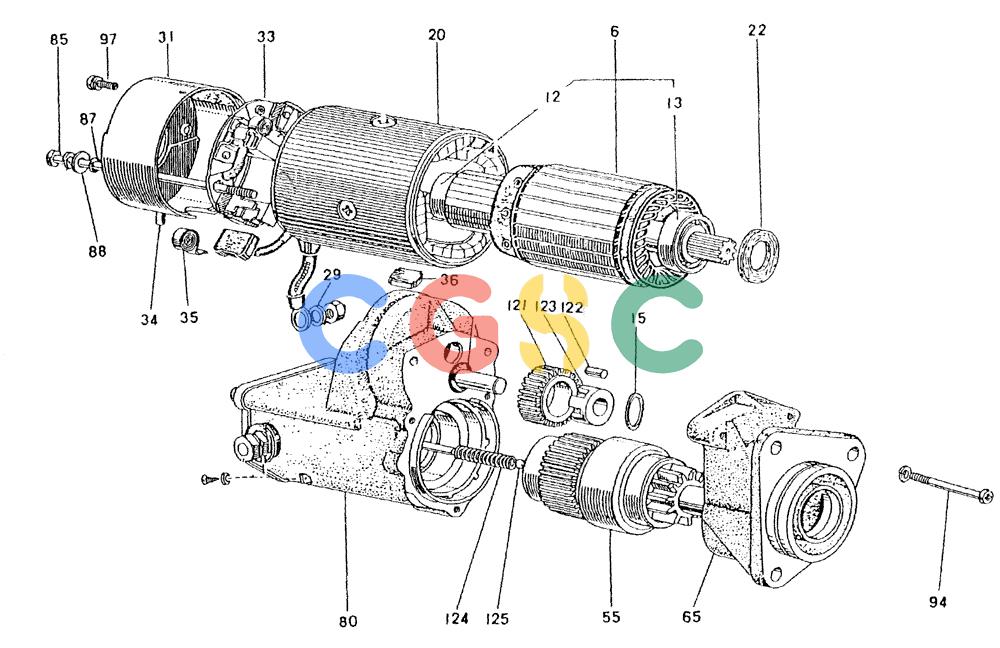

神钢零件查询(4BD1) - ISUZU DIESEL ENGINE - K905 MARK II EXCAVATORS (1/06-12/07) (01-032) - STARTER (DENSO) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
875 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | VI5811001690 | [1] | STARTER ASM, 12V-2.5KW | |
| 6. | VI5811210220 | [1] | ARMATURE ASM. | |
| 12. | VI5098000410 | [1] | BEARING, BALL | |
| 13. | VI5098000640 | [1] | BEARING, BALL | |
| 15. | VI5811291270 | [1] | RETAINER, SNAP | |
| 20. | VI5811110080 | [1] | YOKE ASM., STARTER | |
| 22. | VI5811291280 | [1] | WASHER, FELT | |
| 29. | VI5811291340 | [1] | WASHER | |
| 31. | VI5811150270 | [1] | COVER, RR.STARTER END | |
| 33. | VI5811180130 | [1] | HOLDER ASM., BRUSH | |
| 34. | VI5811291220 | [1] | COVER | |
| 35. | VI1811170100 | [1] | SPRING, BRUSH | |
| 36. | VI5811291360 | [1] | PLATE, LOCK | |
| 55. | VI5811240040 | [1] | CLUTCH ASM, PINION | |
| 65. | VI5811130210 | [1] | CASE ASM, GEAR | |
| 80. | VI1811510350 | [1] | SWITCH ASM, MAGNETIC | |
| 85. | VI5811291230 | [2] | BOLT, THROUGH | |
| 87. | VI5811291310 | [2] | O-RING | |
| 88. | VI5811291240 | [2] | WASHER, STEEL | |
| 94. | VI5811291250 | [2] | SCREW, MAGNETIC | |
| 97. | VI5811291300 | [2] | BOLT, W/WASHER | |
| 121. | VI5811230180 | [1] | PINION, STARTER | |
| 122. | VI5811291200 | [6] | ROLLER, CLUTCH | |
| 123. | VI5811291210 | [1] | RETAINER | |
| 124. | VI5811291190 | [1] | SPRING, COMPRESSION | |
| 125. | VI5811290920 | [1] | BALL, STEEL | |
