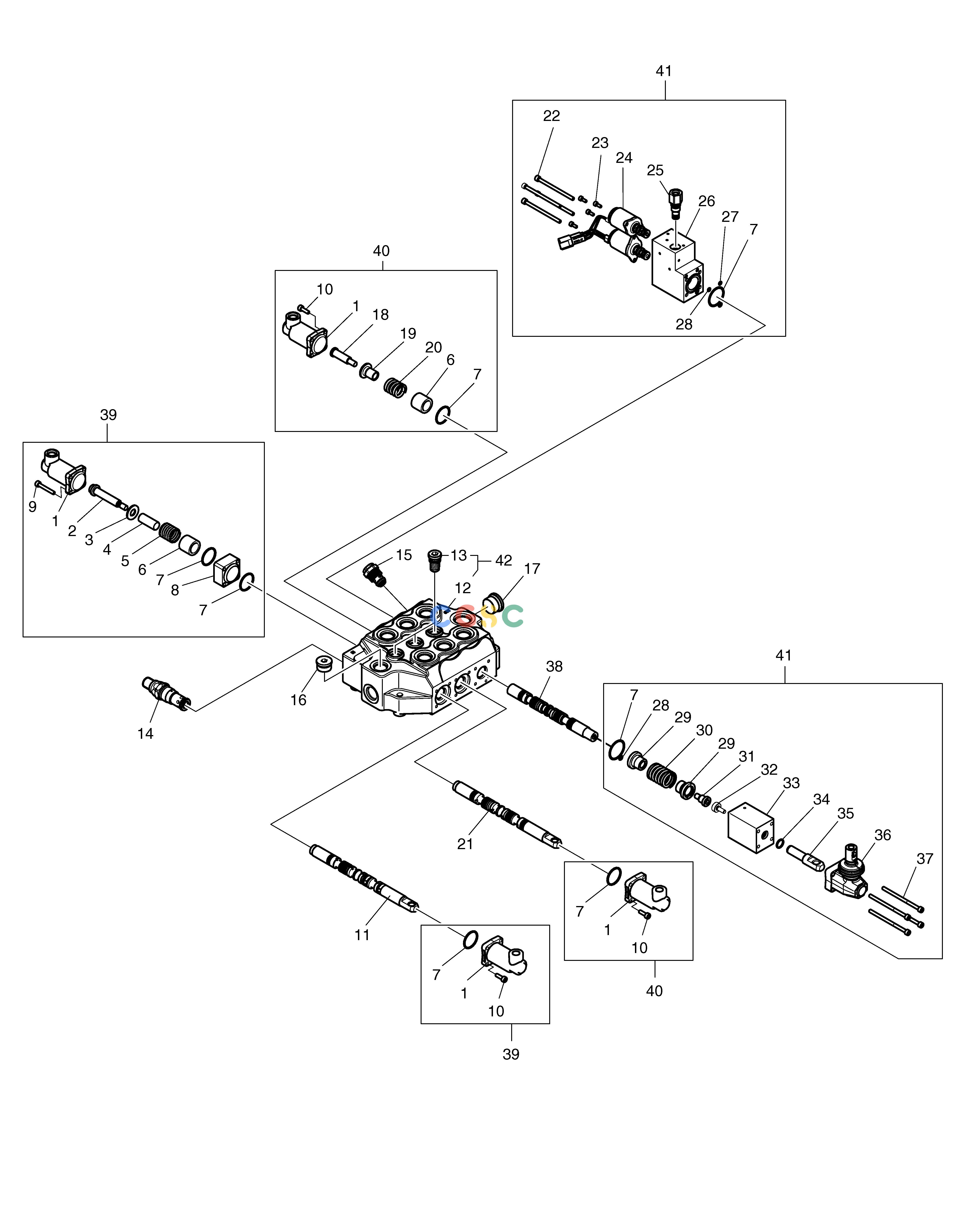

斗山零件查询CONTROL VALVE-JOYSTICK 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
224 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1022793
|
[1] |
CONTROL VALVE(JOYSTICK)
|
|
| 1. |
NA00310
|
[4] |
|
|
| 10. |
NA01040
|
[12] |
VIS
|
|
| 11. |
K1022792
|
[1] |
SPOOL;BOOM
|
|
| 12. |
NA00079
|
[1] |
BODY
|
|
| 13. |
NA00589
|
[3] |
|
|
| 14. |
K1022868
|
[1] |
MAIN RELIEF VALVE
|
|
| 15. |
K1022869
|
[1] |
VALVE;CHECK
|
|
| 16. |
K1022779
|
[1] |
PLUG
|
|
| 17. |
K1022780
|
[1] |
PLUG
|
|
| 18. |
NA01040
|
[1] |
VIS
|
|
| 19. |
NA00263
|
[1] |
BUSHING
|
|
| 2. |
NA01040
|
[1] |
VIS
|
|
| 20. |
NA01182
|
[1] |
. SPRING
|
|
| 21. |
K1022791
|
[1] |
SPOOL
|
|
| 22. |
NA01040
|
[4] |
VIS
|
|
| 23. |
NA01040
|
[4] |
VIS
|
|
| 24. |
NA00576
|
[1] |
|
|
| 25. |
NA00565
|
[1] |
|
|
| 26. |
NA00310
|
[1] |
|
|
| 27. |
NA00643
|
[2] |
. O-RING
|
|
| 28. |
NA00643
|
[2] |
. O-RING
|
|
| 29. |
NA00263
|
[2] |
BUSHING
|
|
| 3. |
NA00929
|
[1] |
RING
|
|
| 30. |
NA01182
|
[1] |
. SPRING
|
|
| 31. |
NA01040
|
[1] |
VIS
|
|
| 32. |
NA01055
|
[1] |
|
|
| 33. |
NA00310
|
[1] |
|
|
| 34. |
NA00643
|
[1] |
. O-RING
|
|
| 35. |
NA00767
|
[1] |
|
|
| 36. |
NA00574
|
[1] |
|
|
| 37. |
NA01040
|
[4] |
VIS
|
|
| 38. |
K1022870
|
[1] |
SPOOL;AUX
|
|
| 39. |
K1022871
|
[1] |
ENDCAP KIT;BOOM
|
|
| 4. |
NA00929
|
[1] |
RING
|
|
| 40. |
K1022872
|
[1] |
ENDCAP KIT;BUCKET
|
|
| 41. |
K1022873
|
[1] |
ENDCAP KIT;AUX
|
|
| 42. |
K1022874
|
[1] |
KIT;BODY
|
|
| 5. |
NA01182
|
[1] |
. SPRING
|
|
| 6. |
NA00263
|
[2] |
BUSHING
|
|
| 7. |
NA00643
|
[7] |
. O-RING
|
|
| 8. |
NA01153
|
[1] |
SPACER
|
|
| 9. |
NA01040
|
[4] |
VIS
|
|
