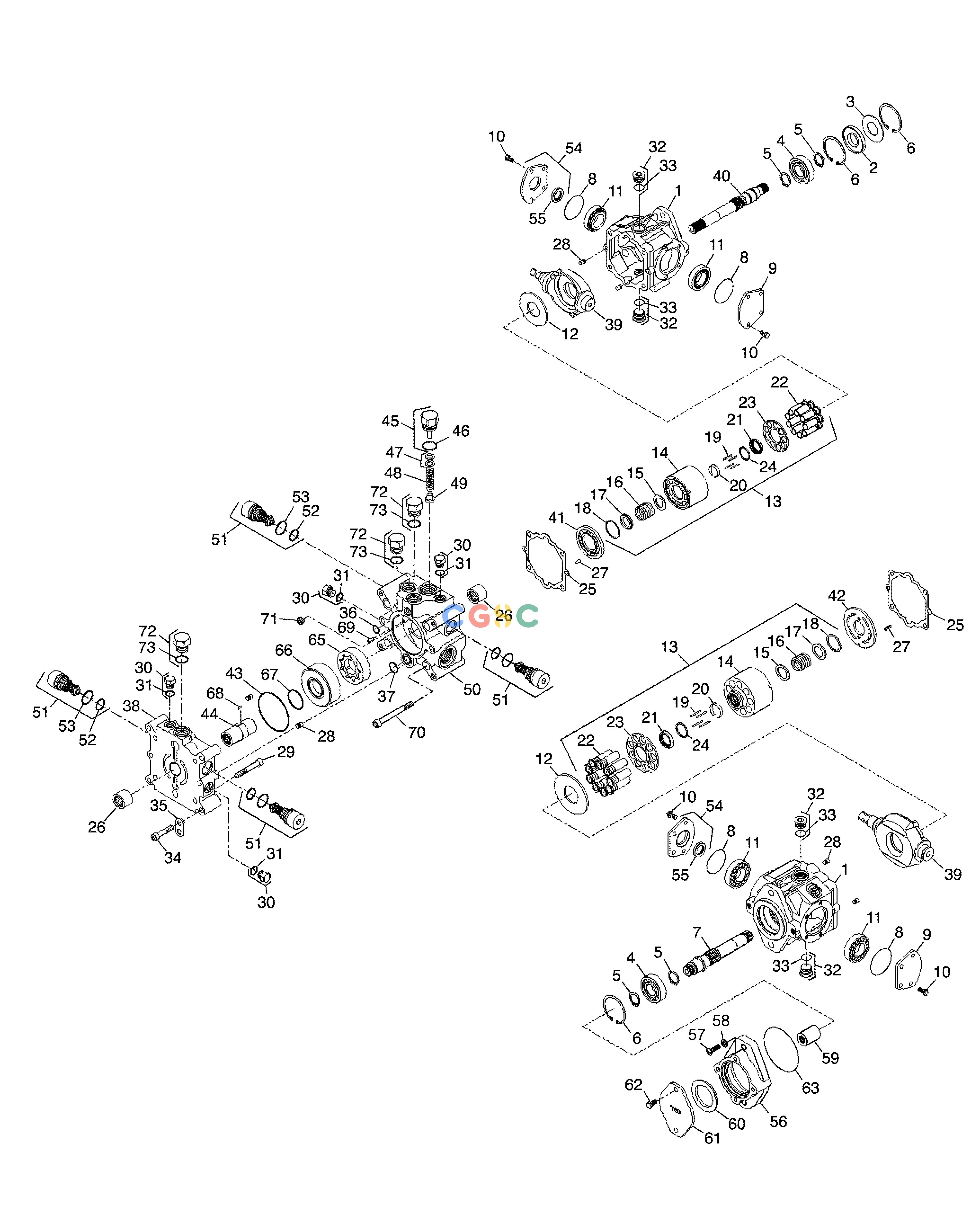

斗山零件查询HST PUMP 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
409 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
K1022668
|
[1] |
SEAL KIT
|
|
| -. |
K1022690
|
[1] |
PUMP;HST
|
|
| 1. |
NA00539
|
[2] |
|
|
| 10. |
NA01040
|
[16] |
VIS
|
|
| 11. |
K1022879
|
[4] |
BEARING;TAPER ROLLER
|
|
| 12. |
K1022491
|
[2] |
PLATE;THRUST
|
|
| 13. |
K1022880
|
[2] |
CYLINDER BLOCK KIT
|
|
| 14. |
NA00074
|
[2] |
. BLOCK;CYLINDER
|
|
| 15. |
NA01315
|
[2] |
RONDELLE
|
|
| 16. |
NA01201
|
[2] |
|
|
| 17. |
NA01315
|
[2] |
RONDELLE
|
|
| 18. |
NA00973
|
[2] |
|
|
| 19. |
K1022490
|
[8] |
PIN;HOLD DOWN
|
|
| 2. |
K1022674
|
[1] |
SEAL;UP
|
|
| 20. |
NA00921
|
[2] |
. HEAD
|
|
| 21. |
K1022663
|
[2] |
GUIDE;RETAINER
|
|
| 22. |
K1022881
|
[18] |
PISTON ASS'Y
|
|
| 23. |
K1022662
|
[2] |
RETAINER
|
|
| 24. |
K1022676
|
[2] |
WASHER;THRUST
|
|
| 25. |
NA00476
|
[2] |
|
|
| 26. |
K1022495
|
[2] |
BEARING;NEEDLE
|
|
| 27. |
K1022675
|
[2] |
PIN;SPRING
|
|
| 28. |
NA00752
|
[6] |
PIN
|
|
| 29. |
NA01040
|
[8] |
VIS
|
|
| 3. |
NA01337
|
[1] |
|
|
| 30. |
NA00843
|
[4] |
PLUG
|
|
| 31. |
K1022677
|
[4] |
O-RING
|
|
| 32. |
NA00843
|
[4] |
PLUG
|
|
| 33. |
K1022678
|
[4] |
O-RING
|
|
| 34. |
NA01040
|
[4] |
VIS
|
|
| 35. |
NA00188
|
[1] |
SUPPORT
|
|
| 36. |
NA00643
|
[1] |
. O-RING
|
|
| 37. |
NA00643
|
[1] |
. O-RING
|
|
| 38. |
NA00310
|
[1] |
|
|
| 39. |
K1022882
|
[2] |
PLATE;SWASH
|
|
| 4. |
K1022670
|
[2] |
BEARING;BALL
|
|
| 40. |
K1022883
|
[1] |
SHAFT;FRONT
|
|
| 41. |
K1022666
|
[1] |
VALVE PLATE-RH
|
|
| 42. |
K1022667
|
[1] |
VALVE PLATE-LH
|
|
| 43. |
NA00643
|
[1] |
. O-RING
|
|
| 44. |
K1022695
|
[1] |
COUPLING
|
|
| 45. |
NA00354
|
[1] |
|
|
| 46. |
K1022500
|
[1] |
O-RING
|
|
| 47. |
K1022681
|
[1] |
SHIM KIT
|
|
| 48. |
K1022884
|
[1] |
SPRING
|
|
| 49. |
K1022503
|
[1] |
POPPET;CHARGE RELIEF
|
|
| 5. |
K1022671
|
[4] |
RING;RETAINING
|
|
| 50. |
K1022696
|
[1] |
CAP;END
|
|
| 51. |
K1022684
|
[4] |
SCR VALVE
|
|
| 52. |
K1022501
|
[4] |
O-RING
|
|
| 53. |
K1022665
|
[4] |
O-RING
|
|
| 54. |
NA01277
|
[2] |
|
|
| 55. |
K1022679
|
[2] |
SEAL;UP
|
|
| 56. |
NA00005
|
[1] |
ADAPTEUR
|
|
| 57. |
NA01040
|
[2] |
VIS
|
|
| 58. |
NA01315
|
[2] |
RONDELLE
|
|
| 59. |
K1022685
|
[1] |
COUPLING
|
|
| 6. |
K1022672
|
[3] |
RING;RETAINING
|
|
| 60. |
NA01076
|
[1] |
SEAL
|
|
| 61. |
NA00819
|
[1] |
|
|
| 62. |
NA01040
|
[2] |
VIS
|
|
| 63. |
K1025475
|
[1] |
O-RING
|
|
| 65. |
K1022697
|
[1] |
ROTOR
|
|
| 66. |
K1022698
|
[1] |
SPACER
|
|
| 67. |
NA00929
|
[1] |
RING
|
|
| 68. |
K1022699
|
[1] |
PIN
|
|
| 69. |
K1022700
|
[1] |
PIN
|
|
| 7. |
K1022673
|
[1] |
SHAFT;REAR
|
|
| 70. |
NA01040
|
[4] |
VIS
|
|
| 71. |
NA00843
|
[1] |
PLUG
|
|
| 72. |
NA00843
|
[3] |
PLUG
|
|
| 73. |
NA00643
|
[3] |
. O-RING
|
|
| 8. |
K1022660
|
[4] |
O-RING
|
|
| 9. |
NA00410
|
[2] |
|
|
