神钢零件查询(4JB1) - ISUZU DIESEL ENGINE (1/06-12/07) (01-038) - RADIATOR Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
488 次

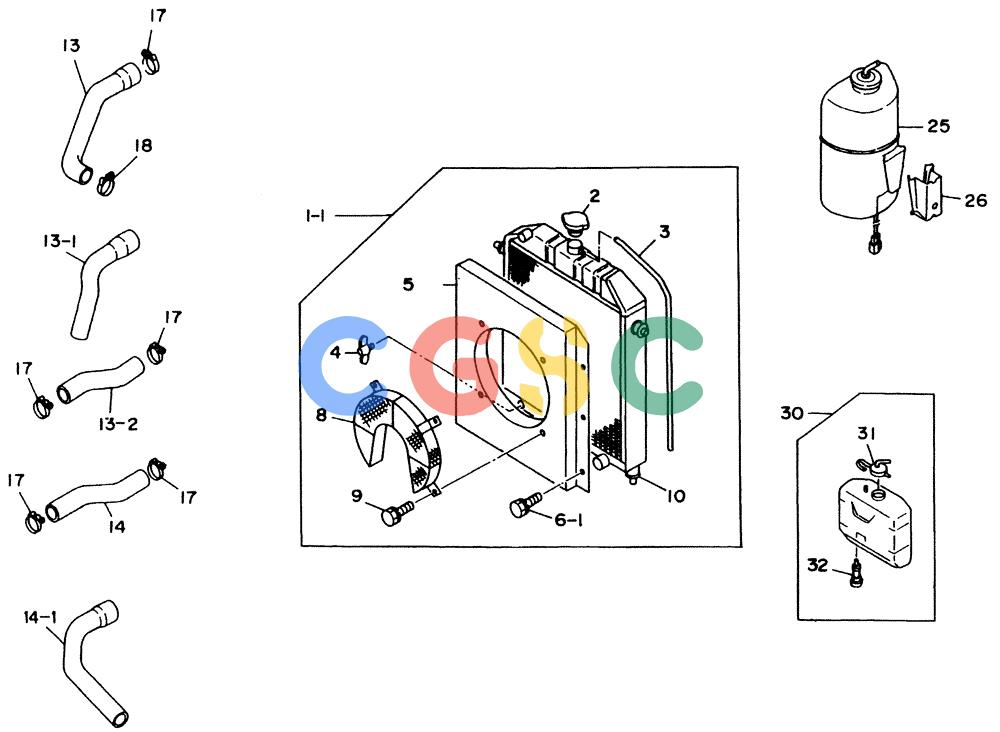

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-1. | VI8970257410 | [1] | RADIATOR ASM. | |
| 2. | VI9214506030 | [1] | CAP ASM,RAD. | |
| 3. | VI8944698820 | [1] | HOSE,VINYL,L=850 | |
| 4. | VI9892142040 | [1] | PLUG,DRAIN | |
| 5-1. | VI8970250500 | [1] | FAN GUIDE | |
| 6-1. | VI9019008160 | [6] | BOLT,SEMS,FAN GUIDE | |
| 8. | VI8944698870 | [1] | GUARD,FAN | |
| 9. | VI9019008160 | [4] | BOLT,SEMS,FAN GUARD | |
| 10. | VI8944698840 | [4] | CUSHION, RUBBER.ROD | |
| 13-2. | VI8970249420 | [1] | HOSE,SUCTION RADIATOR | |
| 14. | VI8943403900 | [1] | HOSE, WASHER.ROD | |
| 14-1. | VI8970249430 | [1] | HOSE,DELIVERY | |
| 17. | VI9099155121 | [3] | CLIP | KOBCLIPIHOSE,RADIATOR |
| 18. | VI9099150421 | [1] | CLIPIHOSE.RADIATOR | |
