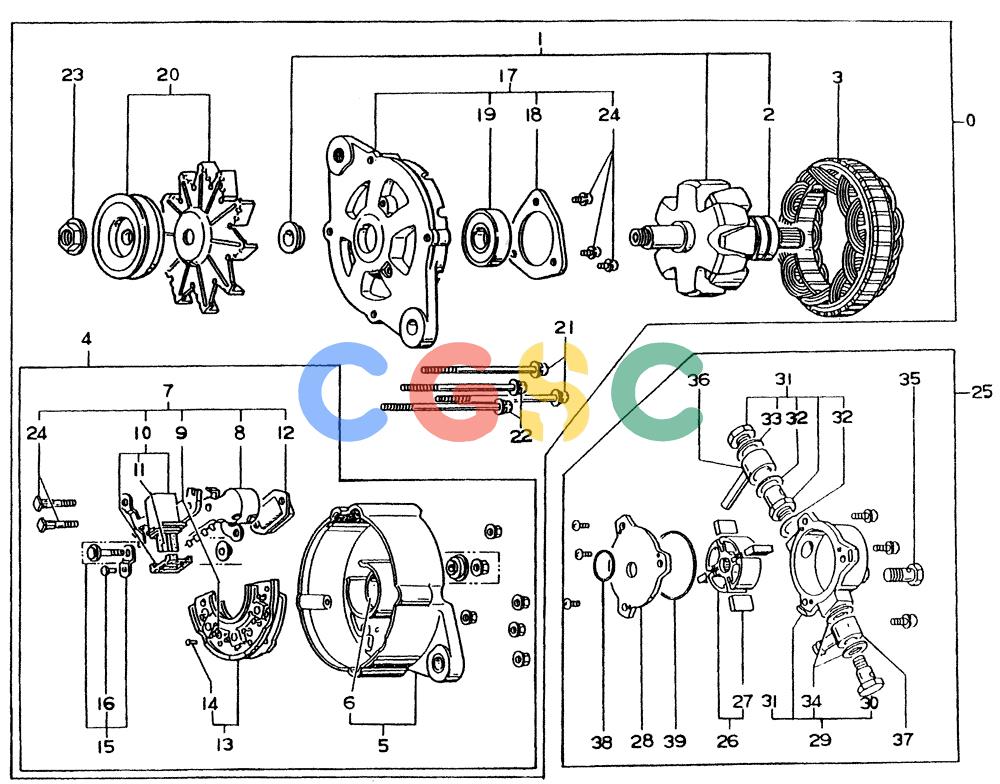

神钢零件查询(4JB1) - ISUZU DIESEL ENGINE (1/06-12/07) (01-061) - GENERATOR (HITACHI) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
1029 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | VI8970376150 | [1] | GENERATOR ASM,12V-50A | |
| 0. | VI8970463720 | [1] | GENERATOR,WO/VAC.PUMP | |
| 1. | VI8970463670 | [1] | ROTOR ASM. | |
| 2. | VI8941211780 | [1] | BEAR ING,BALL | |
| 3. | VI8941674060 | [1] | STATOR ASM. | |
| 4. | VI8970463680 | [1] | COVER ASM,REAR | |
| 5. | VI8970463690 | [1] | COVER,REAR | |
| 6. | VI8941565890 | [1] | SEAL, OIL | |
| 7. | VI8944628720 | [1] | TERMINAL S REGULATOR ASM. | |
| 8. | VI8944628730 | [1] | TERMINAL BLOCK | |
| 9. | VI8942377270 | [1] | DIODE,SUB | |
| 10. | VI8941565920 | [1] | HOLDER ASM..BRUSH | |
| 11. | VI8941565930 | [2] | BRUSH | |
| 12. | VI8944628740 | [1] | REGULATOR | |
| 13. | VI8944628750 | [1] | DIODE ASM. | |
| 14. | VI8941565980 | [1] | RIVET | |
| 15. | VI8941565970 | [1] | BOLT ASM,TERMINAL | |
| 16. | VI8941565980 | [1] | RIVET | |
| 17. | VI8944628760 | [1] | COVER ASM,FRONT | |
| 18. | VI8942239740 | [1] | RETAINER,BEARING | |
| 19. | VI8942239790 | [1] | BEAR ING,BALL | |
| 20. | VI8970163000 | [1] | PULLEY ASM,FAN | |
| 21. | VI8944628790 | [2] | BOLT,THROUGH | |
| 22. | VI8941164350 | [2] | BOLT,THROUGH | |
| 23. | VI8970163010 | [1] | NUTIPULLEY FIX. | |
| 24. | VI8944628800 | [1] | SCREW KIT | |
| 25. | VI8970463700 | [1] | PUMP ASM,VACUUM | |
| 26. | VI8970163040 | [1] | ROTOR | |
| 27. | VI8944628830 | [4] | VANE | |
| 28. | VI8970463710 | [1] | PLATE,CENTER | |
| 29. | VI8944628850 | [1] | HOUSING ASM. | |
| 30. | VI5196190310 | [1] | BOLT,CONNECTOR.DELIVERY | |
| 31. | VI8944628860 | [1] | VALVE ASM. | |
| 32. | VI5196790020 | [1] | PACKING,24X18 | |
| 33. | VI5196790030 | [1] | PACKING,24X12 | |
| 34. | VI5196790042 | [2] | PACKING-.24X16 | |
| 35. | VI8942239890 | [1] | BOLT,0IL CONNECTOR | |
| 36. | VI5196190330 | [1] | COHNECTOR,SUCTION | |
| 37. | VI8941566400 | [1] | CONNECTOR,DELIVERY | |
| 38. | VI8942239950 | [1] | O-RING | |
| 39. | VI8944628770 | [1] | O-RING | |
