神钢零件查询(4JB1) - ISUZU DIESEL ENGINE (1/06-12/07) (01-062) - GENERATOR (DENSO) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
313 次

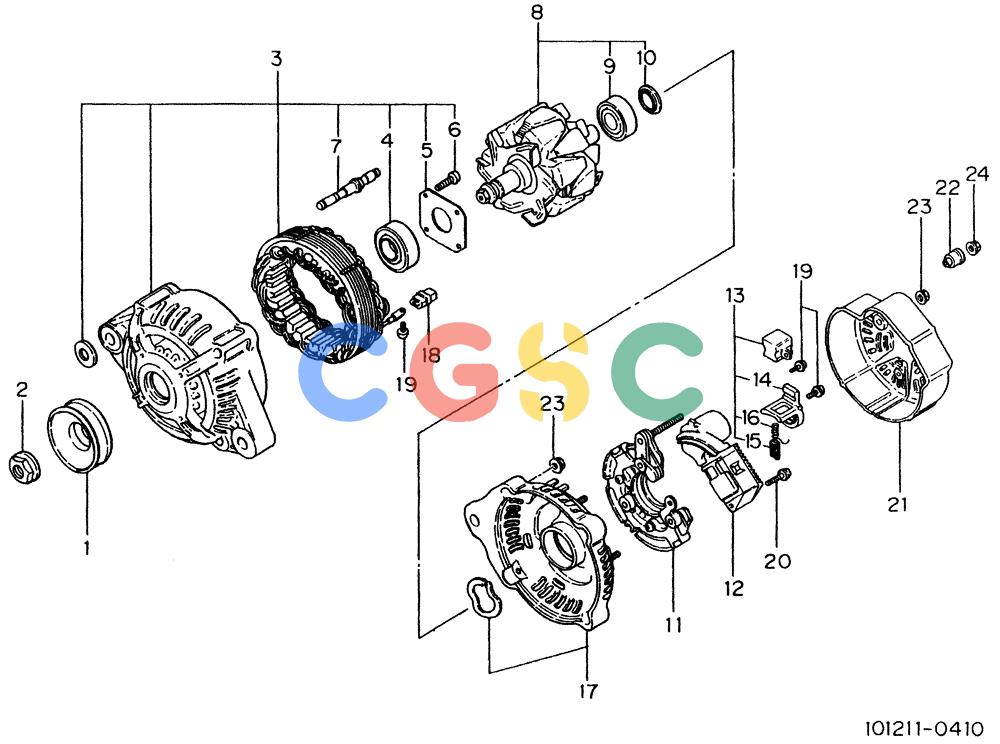

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | VI8970784710 | [1] | GENERATOR ASM.,12V-75A | |
| 1. | VI8970841310 | [1] | PULLEY, ACG | |
| 2. | VI8941230430 | [1] | NUT,PUUEY,HEX.22 | |
| 3. | VI8944138900 | [1] | FRAME ASM.,DRIVE ENO | |
| 4. | VI8944069810 | [1] | BEARING,BALL, OD=46 | |
| 5. | VI8944069820 | [1] | PLATE,RETAINER | |
| 6. | VI8941230470 | [4] | SCREW,W/WASHER,M4 L=l9 | |
| 7. | VI8941230480 | [4] | STUO,M7 L=67.2 | |
| 8. | VI8944109840 | [1] | ROTER ASM. | |
| 9. | VI8941230500 | [1] | BEARING,BALL. 00=35 | |
| 10. | VI8941230510 | [1] | COVER,BEAR ING | |
| 11. | VI8941258840 | [1] | HOLDER ASM.,RECTIFIER | |
| 12. | VI8941390120 | [1] | REGULATER ASM. | |
| 13. | VI8941390131 | [1] | HOLDER ASM.,BRUSH | |
| 14. | VI8941390141 | [1] | SEAL.RING | |
| 15. | VI8941230560 | [2] | BRUSH ASM. | |
| 16. | VI8941230570 | [2] | spring,coil,comp. | |
| 17. | VI8944553690 | [4] | FRAME ENDIRR. | |
| 18. | VI8941230590 | [4] | BUSH,1NSULATION.TERM1NAL | |
| 19. | VI8941230660 | [7] | SCREHCW/KKASHER.M4 L=7 | |
| 20. | VI8941230610 | [2] | SCREW,W/I»ASHER,M4 L=25 | |
| 21. | VI8941258860 | [1] | COVER, END RR | |
| 22. | VI8941230630 | [1] | BUSH,INSULAT. TERMINAL | |
| 23. | VI8941230640 | [7] | NUT, M5 | |
| 24. | VI8942061860 | [2] | NUT, M6 | |
