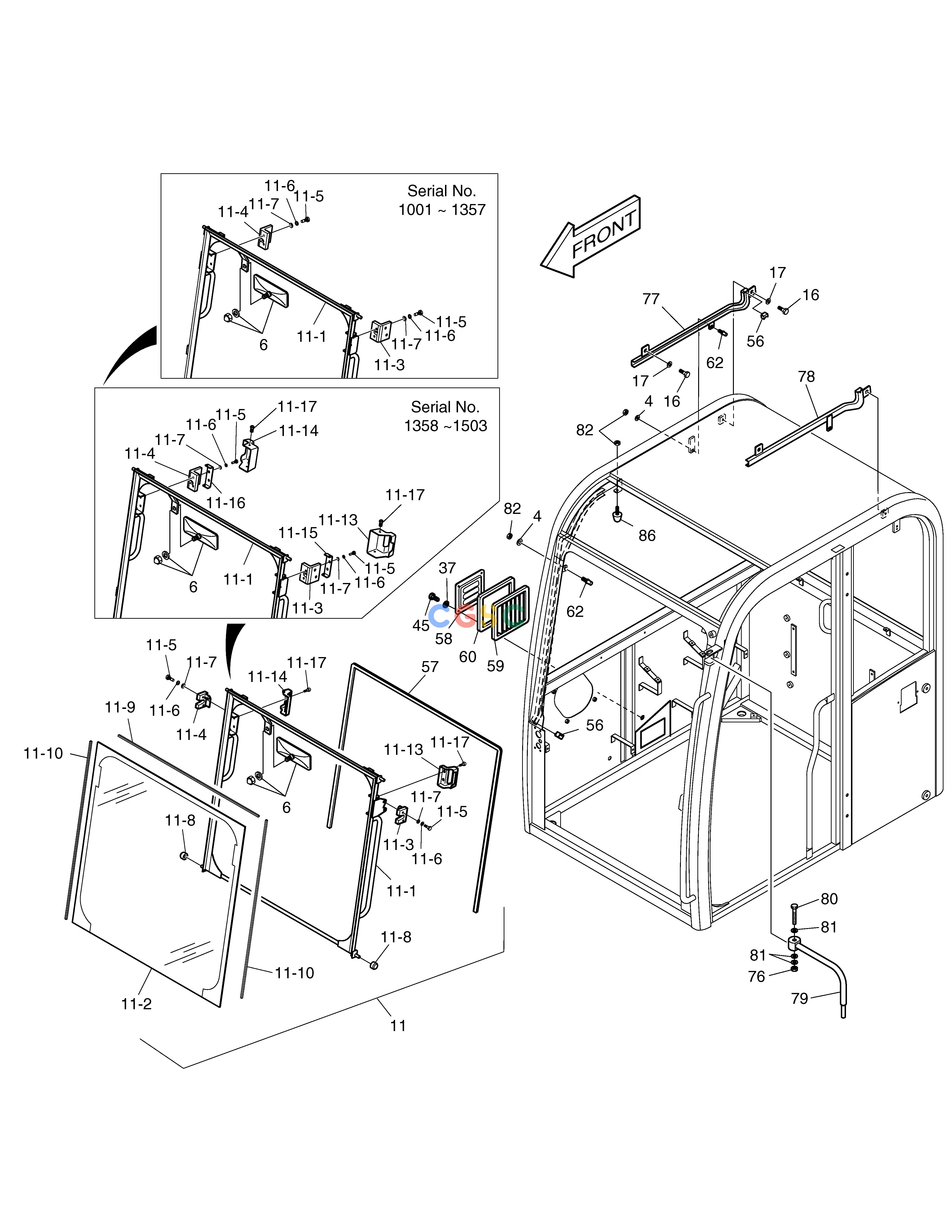

斗山零件查询CABIN(3) B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
510 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
622-00272A
|
[1] |
CABIN ASS'Y
|
622-00272C
|
| -. |
622-00272C
|
[1] |
CABIN ASS'Y
|
622-00272E
|
| -. |
622-00272E
|
[1] |
CABIN ASS'Y
|
622-00272G
|
| -. |
622-00272G
|
[1] |
CABIN ASS'Y
|
|
| 11. |
622-00263
|
[1] |
SLIDE DOOR ASS'Y
|
|
| 11. |
622-00261A
|
[1] |
SLIDE DOOR ASS'Y
|
|
| 11. |
622-00261B
|
[1] |
SLIDE DOOR ASS'Y
|
|
| 11-1. |
622-00264
|
[1] |
DOOR;SLIDE
|
|
| 11-1. |
622-00262A
|
[1] |
DOOR;SLIDE
|
|
| 11-1. |
622-00262B
|
[1] |
DOOR;SLIDE
|
|
| 11-10. |
2161-2254
|
[2] |
DAMPER
|
|
| 11-13. |
621-03168
|
[1] |
COVER;CATCH(LH)
|
|
| 11-13. |
621-03168A
|
[1] |
COVER;CATCH(LH)
|
|
| 11-14. |
621-03731
|
[1] |
COVER;CATCH(RH)
|
|
| 11-14. |
621-03168A
|
[1] |
COVER;CATCH(LH)
|
|
| 11-15. |
191-03740
|
[1] |
PLATE(LH)
|
|
| 11-16. |
191-03741
|
[1] |
PLATE(RH)
|
|
| 11-17. |
2120-2166D53
|
[1] |
. SCREW
|
|
| 11-2. |
903-00034B
|
[1] |
GLASS;SLIDE
|
|
| 11-3. |
125-00031A
|
[1] |
CATCH
|
|
| 11-3. |
125-00031
|
[1] |
CATCH;DOOR
|
|
| 11-3. |
K1006527
|
[1] |
CATCH(L.H)
|
|
| 11-4. |
125-00043
|
[1] |
CATCH
|
|
| 11-4. |
125-00021
|
[1] |
CATCH
|
|
| 11-4. |
K1006528
|
[1] |
CATCH(R.H)
|
|
| 11-5. |
2120-2166D36
|
[4] |
BOLT
|
|
| 11-5. |
S0505053
|
[4] |
BOLT
|
|
| 11-6. |
2114-2031D3
|
[4] |
WASHER;SPRING M6
|
|
| 11-6. |
S5102303
|
[4] |
. WASHER
|
|
| 11-7. |
2114-1898D3
|
[4] |
WASHER
|
|
| 11-7. |
S5010313
|
[4] |
WASHER
|
|
| 11-8. |
270-00028
|
[4] |
ROLLER
|
|
| 11-9. |
2161-2254
|
[1] |
DAMPER
|
|
| 16. |
2120-2166D4
|
[4] |
BOLT
|
|
| 17. |
2114-1898D1
|
[4] |
WASHER
|
|
| 37. |
2114-1898D3
|
[4] |
WASHER
|
|
| 4. |
2114-1898D2
|
[4] |
WASHER
|
|
| 45. |
2120-2166D7
|
[4] |
SCREW
|
|
| 56. |
161-00208A
|
[4] |
STOPPER;RUBBER
|
|
| 57. |
2198-1061
|
[1] |
RUBBER;TRIM
|
|
| 58. |
621-02189
|
[1] |
COVER;FRESH AIR
|
|
| 59. |
2471-6050A
|
[1] |
FILTER;AIRCON
|
|
| 6. |
903-00001
|
[1] |
MIRROR;ROOM
|
|
| 60. |
161-00482
|
[1] |
RUBBER;CUSHION
|
|
| 62. |
142-00051B
|
[4] |
STRIKER
|
142-00051C
|
| 62. |
142-00051C
|
[4] |
STRIKER
|
|
| 76. |
2121-1311D5
|
[1] |
NUT;CAP
|
|
| 77. |
621-01165B
|
[1] |
RAIL;SLIDE
|
|
| 78. |
621-01166B
|
[1] |
RAIL;SLIDE
|
|
| 79. |
145-00089
|
[1] |
STAY
|
|
| 79. |
145-00089B
|
[1] |
STAY;MIRROR
|
|
| 80. |
2120-2166D3
|
[1] |
BOLT M10X1.5X65
|
|
| 81. |
2114-1898D16
|
[3] |
WASHER
|
|
| 82. |
2121-1311D2
|
[5] |
NUT
|
|
| 86. |
161-00279
|
[1] |
STOPPER;RUBBER
|
|
