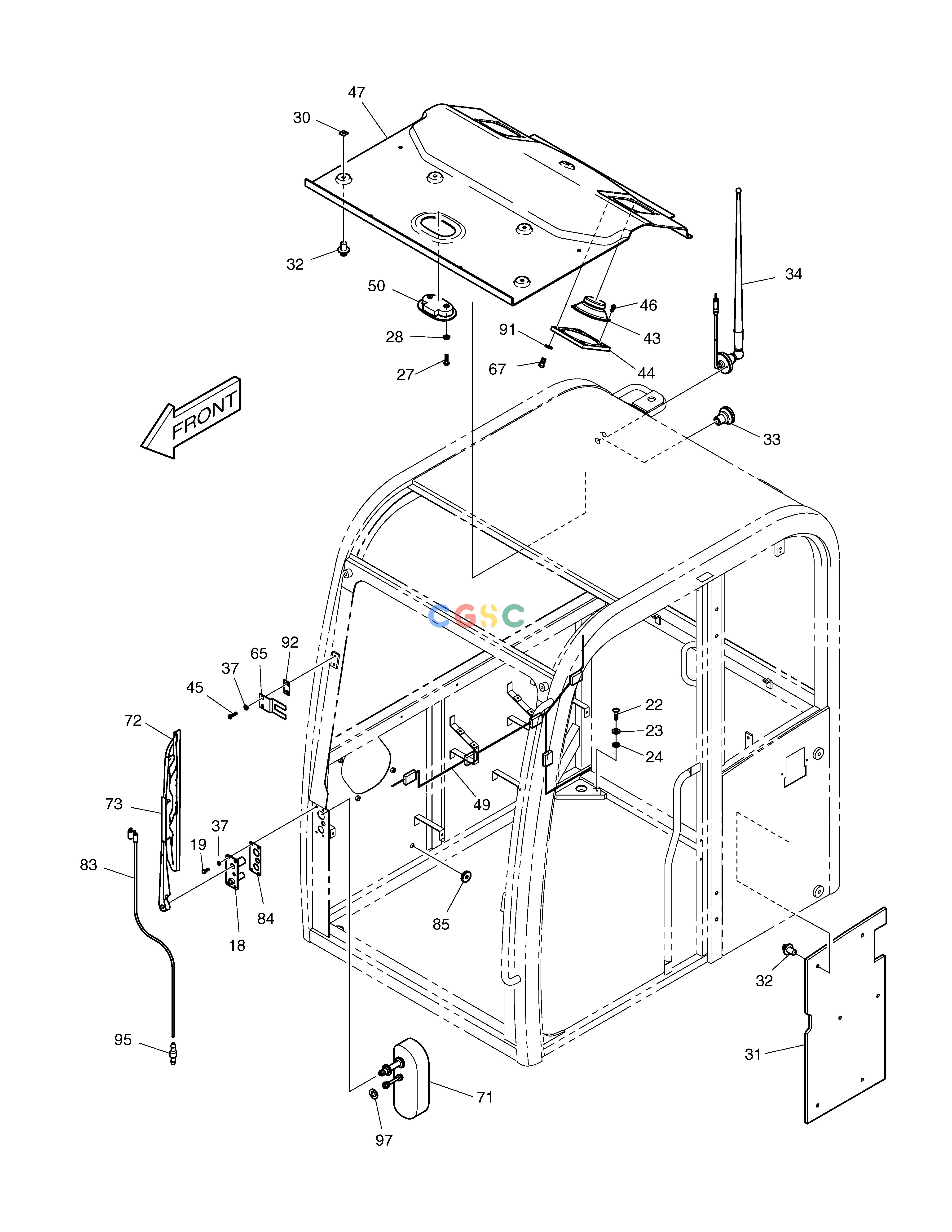

斗山零件查询CABIN(4) B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
309 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
622-00272A
|
[1] |
CABIN ASS'Y
|
622-00272C
|
| -. |
622-00272C
|
[1] |
CABIN ASS'Y
|
622-00272E
|
| -. |
622-00272E
|
[1] |
CABIN ASS'Y
|
622-00272G
|
| -. |
622-00272G
|
[1] |
CABIN ASS'Y
|
|
| 18. |
621-01144B
|
[1] |
PLATE
|
|
| 19. |
2120-2166D36
|
[4] |
BOLT
|
|
| 22. |
S3450953
|
[1] |
SCREW
|
|
| 23. |
S5010313
|
[1] |
WASHER
|
|
| 24. |
S5102303
|
[1] |
. WASHER
|
|
| 27. |
S3450813
|
[2] |
SCREW
|
|
| 28. |
S5000213
|
[2] |
. WASHER
|
|
| 30. |
4627-1633
|
[9] |
CUSHION;RUBBER 2T
|
|
| 31. |
621-01117B
|
[1] |
PANEL;SIDE(L.H.)
|
|
| 32. |
4120-2219
|
[15] |
SCRIVET
|
|
| 33. |
2160-1310
|
[1] |
BUSHING,RUBBER
|
|
| 34. |
541-00013
|
[1] |
ANTENNA
|
|
| 37. |
2114-1898D3
|
[6] |
WASHER
|
|
| 43. |
2541-9020
|
[2] |
SPEAKER
|
|
| 44. |
621-00268
|
[2] |
COVER;SPEAKER
|
|
| 45. |
2120-2166D7
|
[2] |
SCREW
|
|
| 46. |
S3450563
|
[8] |
SCREW M4X0.7X8
|
|
| 47. |
621-01152B
|
[1] |
PANEL;ROOF
|
|
| 49. |
530-00161A
|
[1] |
HARNESS;CABIN SUB
|
|
| 50. |
534-00051
|
[1] |
LAMP;ROOM
|
|
| 65. |
621-01188B
|
[1] |
PLATE
|
|
| 67. |
2120-2166D8
|
[8] |
BOLT
|
|
| 71. |
538-00006A
|
[1] |
MOTOR;WIPER
|
|
| 72. |
507-00004
|
[1] |
BLADE;WIPER
|
|
| 73. |
541-00011A
|
[1] |
ARM;WIPER MOTOR
|
|
| 83. |
415-00040
|
[1] |
NOZZLE;WIPER MOTOR
|
|
| 84. |
161-00287A
|
[1] |
RUBBER
|
|
| 85. |
2160-1004D9
|
[1] |
GROMMET
|
|
| 91. |
2114-1898D4
|
[8] |
WASHER
|
|
| 92. |
621-01889
|
[2] |
PLATE;WIPER
|
|
| 95. |
2415-1018
|
[1] |
ADAPTER
|
|
| 97. |
S5010513
|
[1] |
WASHER
|
|
