斗山零件查询COMPRESSOR B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
437 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

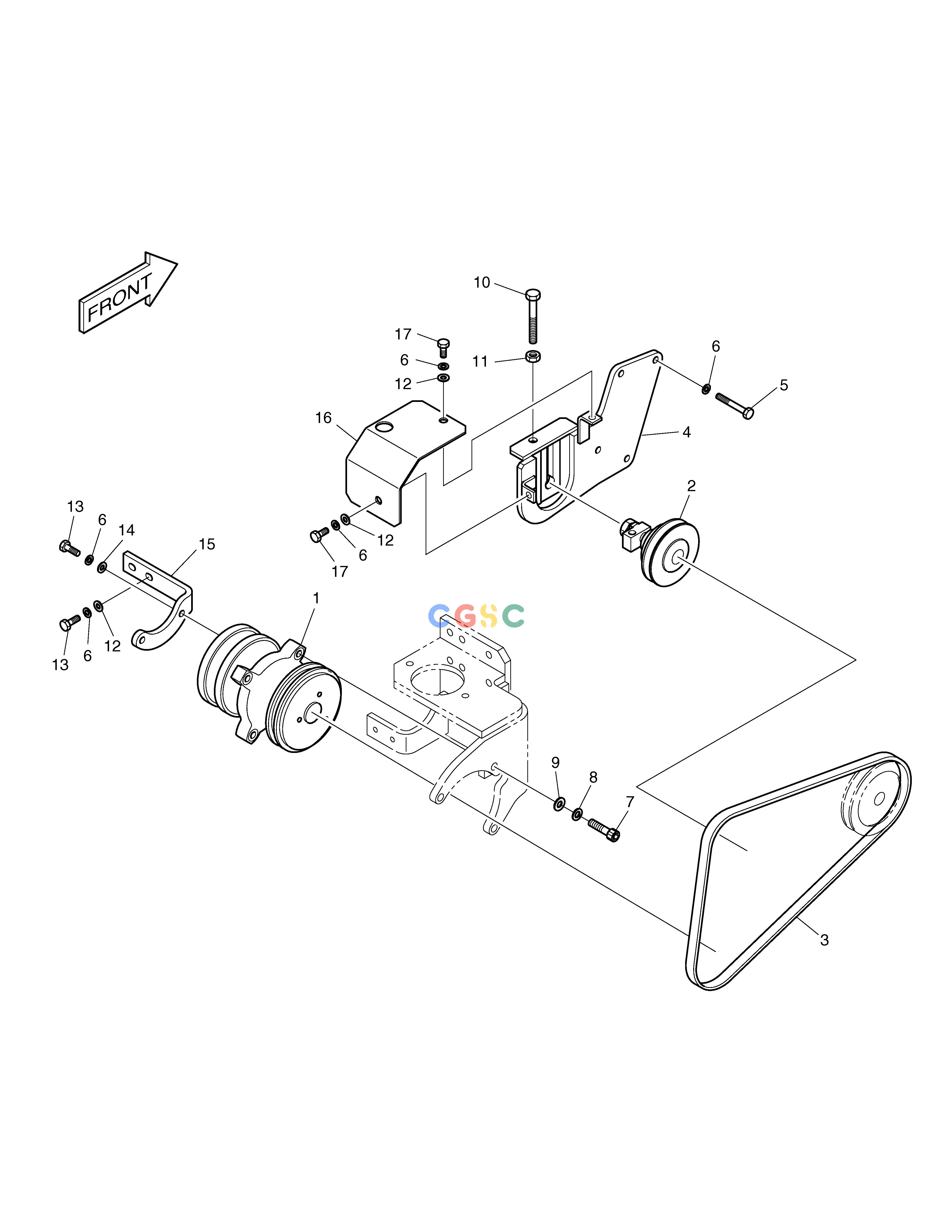

208-00003A
|
[-] |
COMPRESSOR MTG.
|
|
| 1. |
2208-6012B
|
[1] |
COMPRESSOR ASS'Y
|
|
| 10. |
S0513253
|
[1] |
BOLT M10X1.5X80
|
|
| 11. |
S4012633
|
[1] |
NUT
|
|
| 12. |
S5010513
|
[4] |
WASHER
|
|
| 13. |
S0509053
|
[4] |
. BOLT
|
|
| 14. |
2114-1058D29
|
[2] |
WASHER
|
|
| 15. |
195-01112C
|
[1] |
BRACKET;COMPRESSOR
|
|
| 16. |
621-01475C
|
[1] |
COVER
|
|
| 17. |
S0508853
|
[2] |
. BOLT
|
|
| 2. |
107-00028A
|
[1] |
IDLE PULLEY ASS'Y
|
|
| 3. |
2106-1021D19
|
[1] |
BELT;V AIR COMP
|
|
| 4. |
195-01090E
|
[1] |
BRACKET;PULLEY
|
|
| 5. |
S0556453
|
[4] |
BOLT
|
|
| 6. |
S5102503
|
[10] |
. WASHER
|
|
| 7. |
S2212466
|
[3] |
BOLT
|
|
| 8. |
S5110603
|
[3] |
WASHER
|
|
| 9. |
S5010613
|
[3] |
WASHER
|
|
