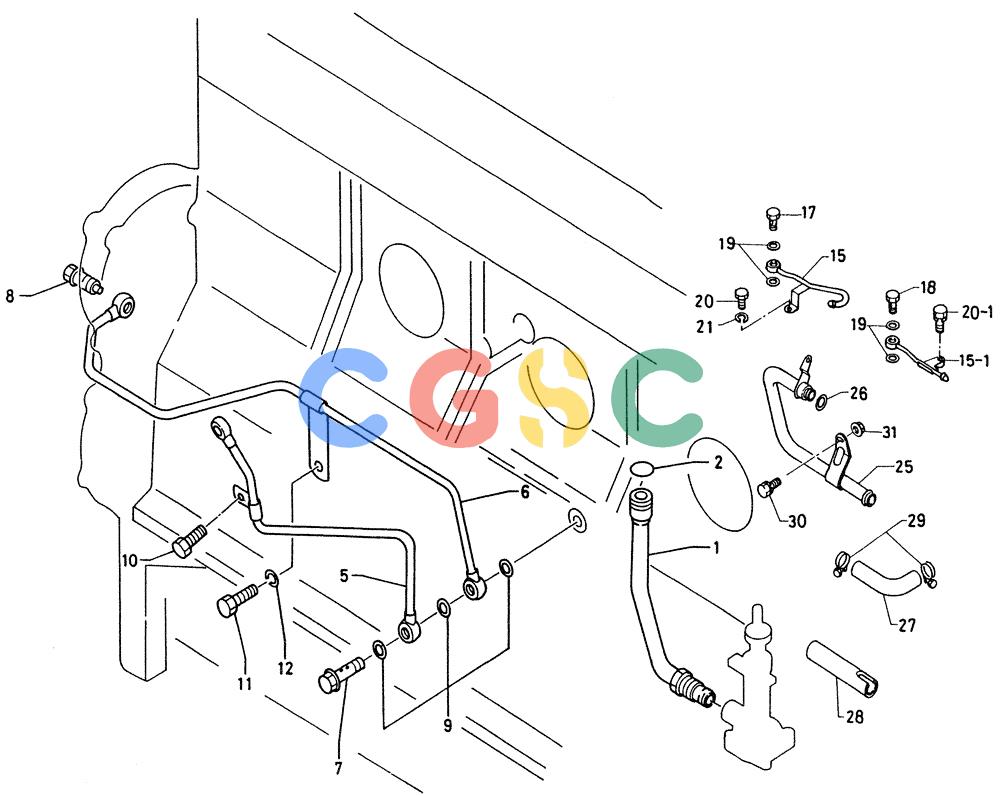

神钢零件查询(4JB1) - ISUZU DIESEL ENGINE - K903C EXCAVATOR (1/06-12/07) (01-010) - OIL PIPE & OTHER PARTS Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
465 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VI8941258480 | [1] | PIPE ASM., OIL PUMP | |
| 2. | VI5096230020 | [1] | O-RING | KOBPACKING, O-RING |
| 5. | VI8941293310 | [1] | PIPE ASM., OIL, INJ. PUMP | |
| 5-1. | VI8941701231 | [1] | PIPE | KOBPIPE ASM., OIL, INJ. PUMP Superseded by part number: VI8972329570 |
| 6. | VI8941293290 | [1] | PIPE ASM., OIL, GEAR CASE | |
| 7. | VI8941077850 | [1] | BOLT, JOINT | |
| 7-1. | VI5096750181 | [1] | BOLT | KOBBOLT, JOINT |
| 8. | VI5096750321 | [1] | BOLT, JOINT, JET GEAR CASE | |
| 9. | VI9095720080 | [5] | GASKET | KOBPACKING, GEAR CASE |
| 9-1. | VI9095720080 | [2] | GASKET | KOBPACKING, GEAR CASE |
| 10. | VI9019006120 | [1] | BRACKET | KOBBOLT, SEMS CLIP Superseded by part number: VI0500406120 |
| 11. | VI9020410160 | [1] | BOLT | |
| 12. | VI9091505100 | [1] | WASHER | KOBWASHER, SPR. Superseded by part number: VI1099853450 |
| 15. | VI8941701240 | [1] | PIPE ASM., OIL, GEAR | |
| 15-1. | VI8941397471 | [1] | PIPE | KOBASM., OIL, GEAR Superseded by part number: VI8971607060 |
| 17. | VI8941719440 | [1] | BOLT, JOINT | |
| 18. | VI8941465820 | [1] | SCREW | KOBBOLT, EYE |
| 19. | VI9095714080 | [2] | PACKING | KOBPACKING, JOINT BOLT Superseded by part number: 289808A1 |
| 20. | VI9020508120 | [1] | BOLT, CLIP | |
| 20-1. | VI9019108220 | [1] | BOLT BOLT, OIL PIPE | BOLT BOLT, OIL PIPE |
| 21. | VI9091505080 | [1] | WASHER | KOBWASHER, SPR. Superseded by part number: VI0915105080 |
| 25. | VI8941746460 | [1] | PIPE ASM., OIL, CYL. HEAD | |
| 26. | VI9095612180 | [1] | PACKING | |
| 27. | VI8941077680 | [1] | HOSE, RUBBER | |
| 27-1. | VI8941744640 | [1] | HOSE, RUBBER | |
| 28. | VI8941746480 | [1] | HOSE, RUBBER | |
| 29. | VI9099156422 | [4] | CLIP, HOSE | |
| 30. | VI9019108140 | [1] | BOLT, PIPE | |
| 31. | VI5094400050 | [1] | NUT | |
