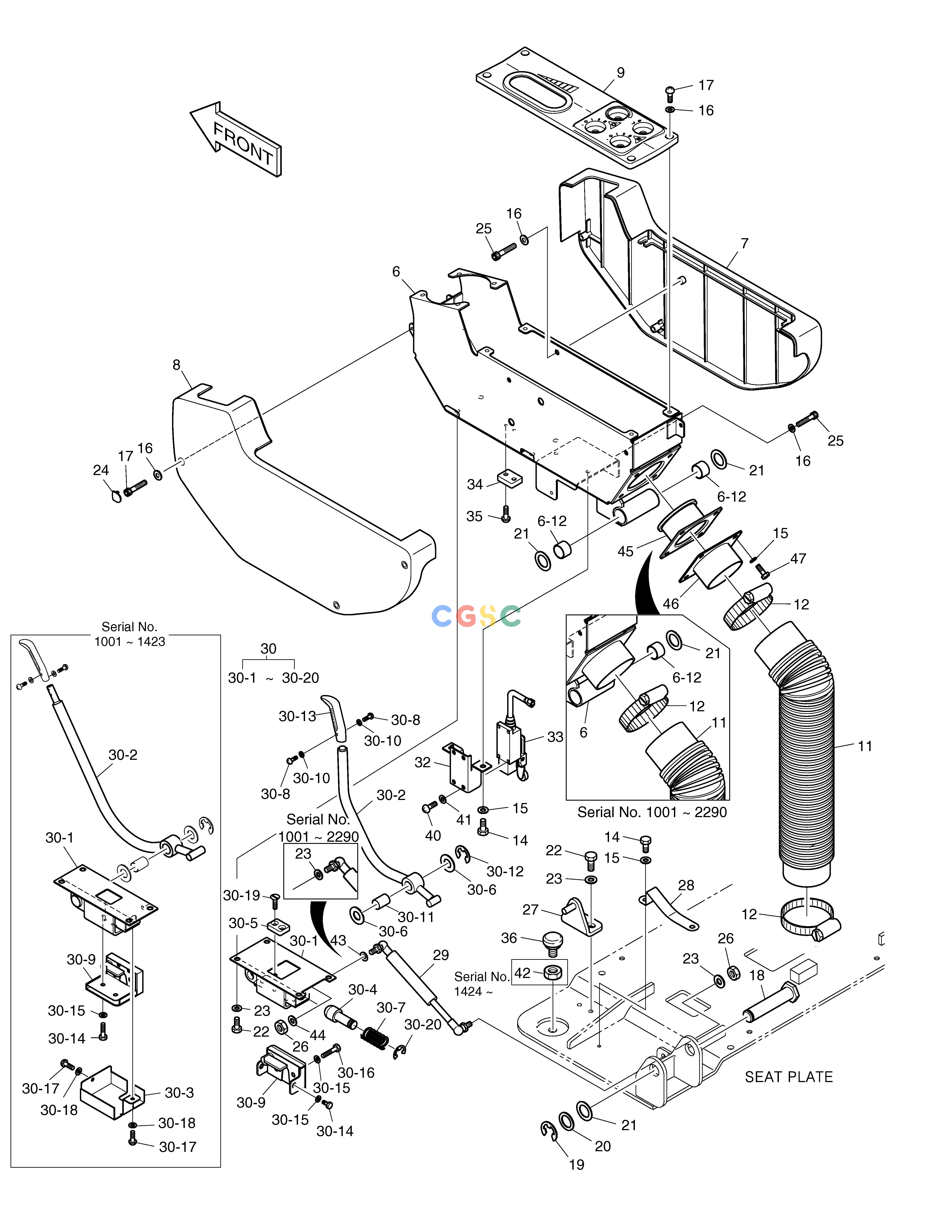

斗山零件查询CONTROL STAND(L.H) B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
648 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
195-02319B
|
[-] |
STAND ASS'Y
|
|
| -. |
195-02319C
|
[-] |
STAND ASS'Y
|
|
| 11. |
2158-1020
|
[1] |
PROTECTOR
|
|
| 12. |
S8450066
|
[2] |
CLAMP;HOSE
|
|
| 14. |
2120-2166D28
|
[4] |
. BOLT
|
|
| 15. |
2114-1898D3
|
[4] |
WASHER
|
|
| 15. |
2114-1898D3
|
[8] |
WASHER
|
|
| 16. |
2114-1898D4
|
[12] |
WASHER
|
|
| 17. |
2120-2166D8
|
[9] |
BOLT
|
|
| 18. |
2123-2240
|
[1] |
PIN
|
|
| 19. |
S6541900
|
[1] |
RING;RETAINER
|
|
| 20. |
2114-4129
|
[1] |
WASHER
|
|
| 21. |
2114-1059D31
|
[3] |
SHIM
|
|
| 22. |
2120-2166D25
|
[4] |
BOLT
|
|
| 23. |
2114-1898D2
|
[3] |
WASHER
|
|
| 23. |
2114-1898D2
|
[7] |
WASHER
|
|
| 24. |
621-01850
|
[1] |
COVER;HOLE
|
|
| 25. |
S2202866
|
[3] |
BOLT;SOCKET M5X0.8X10
|
|
| 26. |
2121-1311D2
|
[1] |
NUT
|
|
| 26. |
2121-1311D2
|
[2] |
NUT
|
|
| 27. |
142-00052
|
[1] |
STRIKER
|
|
| 28. |
159-00114
|
[1] |
PLATE;MICRO
|
|
| 29. |
440-00237A
|
[1] |
SPRING;GAS
|
|
| 30. |
133-00131B
|
[1] |
LEVER;SAFETY
|
133-00131C
|
| 30. |
133-00131C
|
[1] |
LEVER;SAFETY
|
|
| 30. |
133-00131E
|
[1] |
LEVER;SAFETY
|
|
| 30-1. |
159-00117A
|
[1] |
PLATE
|
|
| 30-1. |
159-00117B
|
[1] |
PLATE
|
|
| 30-1. |
159-00117C
|
[1] |
PLATE
|
|
| 30-10. |
S5000113
|
[2] |
WASHER
|
|
| 30-11. |
2110-1184D29
|
[1] |
. BUSH;DU
|
|
| 30-12. |
S6541200
|
[1] |
. RING;RETAINER
|
|
| 30-13. |
2132-1132A
|
[1] |
. GRIP
|
|
| 30-14. |
S0503353
|
[2] |
BOLT M5X0.8X20
|
|
| 30-14. |
2120-2166D19
|
[2] |
. BOLT M6X1.0X12
|
|
| 30-15. |
S5000213
|
[3] |
. WASHER
|
|
| 30-15. |
2114-1898D3
|
[4] |
WASHER
|
|
| 30-16. |
S0503553
|
[1] |
BOLT M5X0.8X25
|
|
| 30-16. |
S0505063
|
[2] |
BOLT M6X1.0X25
|
|
| 30-17. |
2120-2166D18
|
[2] |
SCREW
|
|
| 30-18. |
2114-1898D4
|
[2] |
WASHER
|
|
| 30-19. |
S3452833
|
[2] |
. SCREW M5X0.8X12
|
|
| 30-2. |
133-00130A
|
[1] |
LEVER
|
133-00130B
|
| 30-2. |
133-00130B
|
[1] |
LEVER
|
|
| 30-20. |
S6541500
|
[1] |
. RING;RETAINING
|
|
| 30-3. |
213-00022
|
[1] |
COVER
|
|
| 30-4. |
123-00429
|
[1] |
PIN
|
|
| 30-5. |
161-00297
|
[1] |
. STOPPER;RUBBER
|
|
| 30-6. |
2114-1059D37
|
[2] |
. SHIM
|
|
| 30-7. |
2129-1432
|
[1] |
. SPRING
|
|
| 30-8. |
S3450583
|
[2] |
SCREW
|
|
| 30-9. |
125-00021
|
[1] |
CATCH
|
|
| 30-9. |
K1003998
|
[1] |
. CATCH
|
|
| 32. |
621-01242
|
[1] |
COVER;MICRO S/W
|
|
| 33. |
549-00046
|
[1] |
SWITCH;PILOT CUT OFF
|
|
| 34. |
161-00297
|
[1] |
. STOPPER;RUBBER
|
|
| 35. |
S3452853
|
[2] |
SCREW
|
|
| 36. |
2161-2367
|
[1] |
STOPPER
|
|
| 36. |
161-00195
|
[1] |
STOPPER
|
|
| 40. |
S3450823
|
[4] |
SCREW
|
|
| 41. |
S5000203
|
[4] |
WASHER
|
|
| 42. |
2121-1311D4
|
[1] |
NUT
|
|
| 43. |
2114-2031D4
|
[2] |
WASHER
|
|
| 44. |
2114-1898D8
|
[1] |
WASHER
|
|
| 45. |
160-00030
|
[1] |
BOOT
|
|
| 46. |
195-01765B
|
[1] |
BRACKET
|
|
| 47. |
2120-2166D36
|
[4] |
BOLT
|
|
| 6. |
195-01253B
|
[1] |
BRACKET;STAND(L.H.)
|
|
| 6. |
195-01253C
|
[1] |
BRACKET;STAND(L.H.)
|
|
| 6-12. |
2110-1184D37
|
[2] |
. BUSH;DU
|
|
| 7. |
621-01822
|
[1] |
CASE;STAND
|
|
| 8. |
621-01823
|
[1] |
CASE;STAND
|
|
| 9. |
159-00115
|
[1] |
PLATE;SWITCH
|
|
