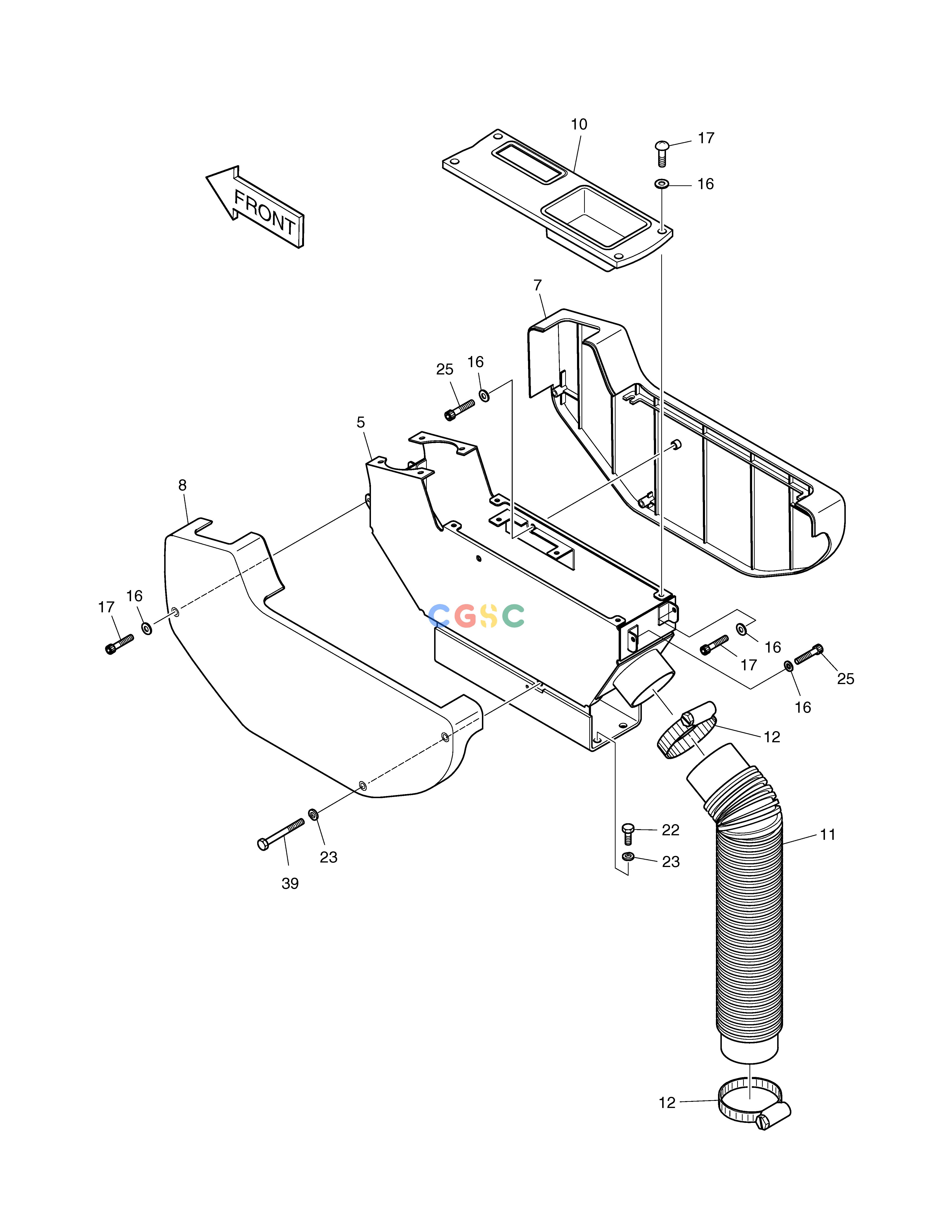

斗山零件查询CONTROL STAND(R.H) B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
532 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
195-02319B
|
[-] |
STAND ASS'Y
|
|
| -. |
195-02319C
|
[-] |
STAND ASS'Y
|
|
| 10. |
159-00116
|
[1] |
PLATE;SWITCH
|
|
| 11. |
2158-1020
|
[1] |
PROTECTOR
|
|
| 12. |
S8450066
|
[2] |
CLAMP;HOSE
|
|
| 16. |
2114-1898D4
|
[11] |
WASHER
|
|
| 17. |
2120-2166D8
|
[7] |
BOLT
|
|
| 22. |
2120-2166D5
|
[4] |
BOLT
|
|
| 23. |
2114-1898D2
|
[4] |
WASHER
|
|
| 25. |
S2203061
|
[4] |
BOLT;SOCKET M5X0.8X14
|
|
| 39. |
120-00274
|
[1] |
BOLT
|
|
| 5. |
195-01246A
|
[1] |
BRACKET;STAND(R.H.)
|
|
| 7. |
621-01822
|
[1] |
CASE;STAND
|
|
| 8. |
621-01823
|
[1] |
CASE;STAND
|
|
