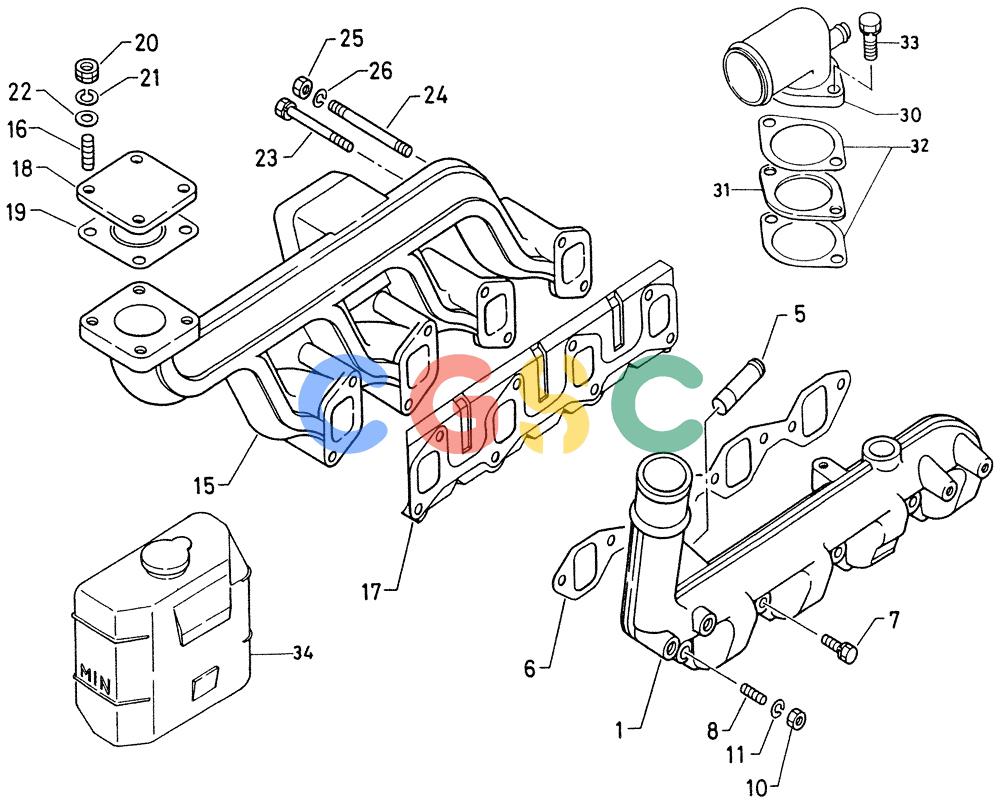

神钢零件查询(4JB1) - ISUZU DIESEL ENGINE - K903C EXCAVATOR (1/06-12/07) (01-012) - AIR INTAKE & EXHAUST SYSTEM Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
383 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VI8941421601 | [1] | MANIFOLD, INLET | |
| 1-1. | VI8941493780 | [1] | MANIFOLD, INLET | |
| 1-2. | VI8944350890 | [1] | MANIFOLD, INLET | |
| 5. | VI8942506150 | [1] | PIPE, BREATHER | |
| 6. | VI8941421590 | [1] | PACKING | KOBINL. MANIFOLD |
| 7. | VI9019108250 | [6] | BOLT | KOBINLET MANIFOLD Superseded by part number: VI0505408250 |
| 8. | VI9041108250 | [2] | STUD | KOBSTUD, INLET MANIFOLD Superseded by part number: VI0410108250 |
| 8-1. | VI9041108250 | [1] | STUD | KOBSTUD, INLET MANIFOLD Superseded by part number: VI0410108250 |
| 8-2. | VI9041108400 | [1] | STUD | KOBSTUD, INLET MANIFOLD |
| 8-3. | VI9096300340 | [1] | STUD, INLET MANIFOLD | |
| 8-4. | VI9041110300 | [2] | STUD, INLET MANIFOLD | |
| 10. | VI9091105080 | [2] | HANGER | KOBNUT, INLET MANIFOLD Superseded by part number: VI0911105080 |
| 11. | VI9091505080 | [2] | WASHER | KOBWASHER, SPR. Superseded by part number: VI0915105080 |
| 15. | VI8941421611 | [1] | MANIFOLD, EXH. | |
| 15-1. | VI8944288030 | [1] | MANIFOLD, EXH. | |
| 16. | VI9047310300 | [8] | STUD | KOBEXH. MANIFOLD Superseded by part number: 9098320040 |
| 17. | VI8941395261 | [1] | GASKET | KOBEXH. MANIFOLD Superseded by part number: 87436834 |
| 18. | VI5141490810 | [1] | COVER, EXH. MANIFOLD | |
| 19. | VI5141490790 | [1] | GASKET, COVER | |
| 20. | VI9098420070 | [4] | NUT, COVER FIX. | |
| 21. | VI1095000080 | [4] | WASHER, SPR. | |
| 22. | VI9091645100 | [4] | WASHER | KOBWASHER, PL. |
| 23. | VI5090000850 | [4] | BOLT, EXH. MANIFOLD | |
| 23-1. | VI9019108300 | [6] | COVER | KOBBOLT, EXH. MANIFOLD Superseded by part number: VI0505408300 |
| 24. | VI8941719900 | [4] | STUD, EXH. MANIFOLD | |
| 24-1. | VI9041108350 | [2] | STUD | KOBSTUD, EXH. MANIFOLD Superseded by part number: VI0410108350 |
| 25. | VI9091104080 | [4] | HANGER | KOBNUT, EXH. MANIFOLD Superseded by part number: VI0911105080 |
| 25-1. | VI9091104080 | [2] | HANGER | KOBNUT, EXH. MANIFOLD Superseded by part number: VI0911105080 |
| 26. | VI9091505080 | [4] | WASHER | KOBWASHER, SPR. Superseded by part number: VI0915105080 |
| 26-1. | VI9091505080 | [2] | WASHER | KOBWASHER, SPR. Superseded by part number: VI0915105080 |
| 30. | VI8944168630 | [1] | PIPE, INLET | |
| 30-1. | VI8944340740 | [1] | PIPE, INLET | |
| 31. | VI8944294310 | [1] | SPACER | KOBINLET PIPE |
| 32. | VI5096370110 | [2] | PACKING, INLET PIPE | |
| 32-1. | VI5096370110 | [1] | PACKING, INLET PIPE | |
| 33. | VI9019110300 | [2] | BOLT, INL. PIPE | |
| 34. | VI8941210361 | [1] | TANK, SURGE | |
