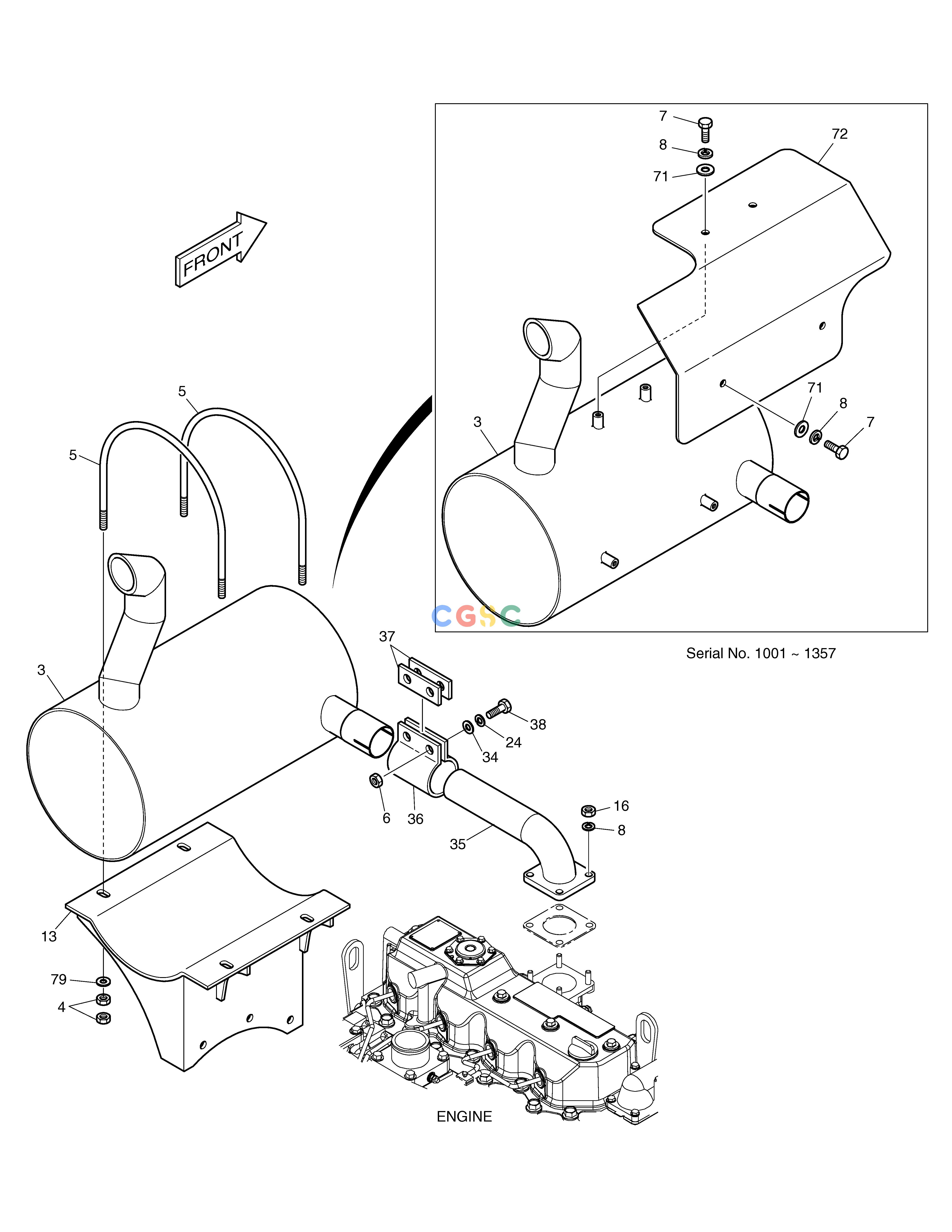

斗山零件查询ENGINE MOUNTING(4)-MUFFLER B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
1009 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
201-00177
|
[-] |
ENGINE MOUNTING ASS'Y
|
|
| -. |
201-00177A
|
[-] |
ENGINE MOUNTING ASS'Y
|
|
| 13. |
195-01073A
|
[1] |
BRACKET;MUFFLER
|
|
| 13. |
K1008991A
|
[1] |
BRACKET;MUFFLER
|
|
| 16. |
S4012533
|
[4] |
NUT
|
|
| 24. |
S5102603
|
[2] |
. WASHER
|
|
| 3. |
203-00086
|
[1] |
MUFFLER
|
|
| 3. |
203-00086A
|
[1] |
MUFFLER
|
|
| 3. |
K1010536
|
[1] |
MUFFLER
|
|
| 34. |
S5010613
|
[2] |
WASHER
|
|
| 35. |
193-00445
|
[1] |
PIPE;MUFFLER
|
|
| 36. |
2124-1663
|
[1] |
CLAMP
|
|
| 37. |
2114-1180D19
|
[2] |
SHIM
|
|
| 38. |
S0512453
|
[2] |
BOLT M10X1.5X40
|
|
| 4. |
S4032633
|
[8] |
NUT
|
|
| 5. |
120-00186
|
[2] |
BOLT;U
|
|
| 5. |
K1008990A
|
[2] |
BOLT;U
|
|
| 6. |
S4012633
|
[2] |
NUT
|
|
| 7. |
S0508853
|
[4] |
. BOLT
|
|
| 71. |
2114-1058D29
|
[4] |
WASHER
|
|
| 72. |
621-01201
|
[1] |
COVER;MUFFLER
|
|
| 79. |
2114-1058D45
|
[4] |
. WASHER
|
|
| 8. |
S5102503
|
[8] |
. WASHER
|
|
| 8. |
S5102503
|
[4] |
. WASHER
|
|
