| 1. |
7895410
|
[1] |

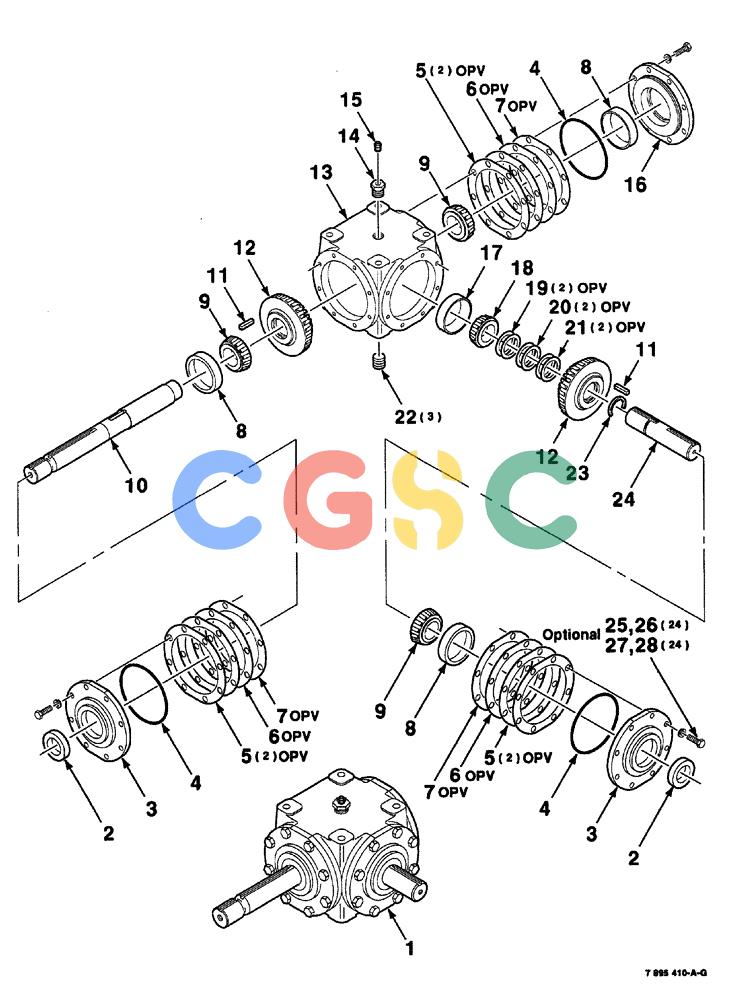

GEARBOX ASSY
|
CAS
complete Superseded by part number: 700725501
|
| 2. |
76961C1
|
[2] |
OIL SEAL
|
IH
Superseded by part number: 701519
|
| 3. |
757120
|
[2] |
CAP
|
CAS
|
| 4. |
238-5155
|
[3] |
O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro
|
CAS
Optional per vendor, use on end caps with ring groove Superseded by part number: 9828498
|
| 5. |
1702216
|
[6] |
GASKET
|
CAS
.015" thick
|
| 6. |
1702224
|
[3] |
GASKET
|
CAS
.005" thick
|
| 7. |
1702232
|
[3] |
GASKET
|
CAS
.003" thick
|
| 8. |
ST991
|
[3] |
BEARING CUP
|
IH
bearing Superseded by part number: 116210
|
| 9. |
T20939
|
[3] |
ROLLER BEARING,1.25" ID x 0.771"
|
CAS
bearing Superseded by part number: 86576984
|
| 10. |
700703554
|
[1] |
SHAFT
|
CAS
long
|
| 11. |
753574
|
[2] |
KEY
|
CAS
tapered
|
| 12. |
757138
|
[2] |
GEAR
|
HFI
Superseded by part number: 8806317
|
| 13. |
757062
|
[1] |
HOUSING
|
CAS
Superseded by part number: 700100292
|
| 14. |
444030
|
[1] |
REDUCER,1/2"-14 NPTF x 1/8"-27 Fem NPTF
|
IH
BUSHING reducer
|
| 15. |
152127H1
|
[1] |
BREATHER,1/8"-27, Short
|
IH
PLUG vented Superseded by part number: 219-433
|
| 16. |
757054
|
[1] |
CAP
|
CAS
|
| 17. |
651817R1
|
[1] |
BEARING CUP
|
IH
CUP Superseded by part number: 84356153
|
| 18. |
651818R91
|
[1] |
ROLLER BEARING,31.77 mm ID x 16.08 mm
|
IH
Superseded by part number: 84356153
|
| 19. |
753418
|
[2] |
SHIM
|
HFI
.002" thick
|
| 20. |
753426
|
[2] |
SHIM
|
CAS
.005" thick
|
| 21. |
753434
|
[2] |
SHIM
|
CAS
.010" thick
|
| 22. |
217-439
|
[3] |
PLUG,Hex Soc, 1/2" - 14 NPTF
|
CAS
Pipe Superseded by part number: 86642423
|
| 23. |
757229
|
[1] |
RING, SNAP
|
CAS
RING SNAP retainer
|
| 24. |
700703549
|
[1] |
SHAFT
|
CAS
short
|
| 25. |
413-516
|
[24] |
BOLT,Hex, 5/16" - 18 x 1", Gr 5
|
CAS
Superseded by part number: 9635884, 72187198
|
| 26. |
492-11031
|
[24] |
LOCK WASHER,5/16"
|
CAS
Superseded by part number: 83990583
|
| 27. |
614-8025
|
[24] |
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 43127
|
| 28. |
892-11008
|
[24] |
LOCK WASHER,8mm ID
|
IH
Superseded by part number: 72187304, 83990583
|
