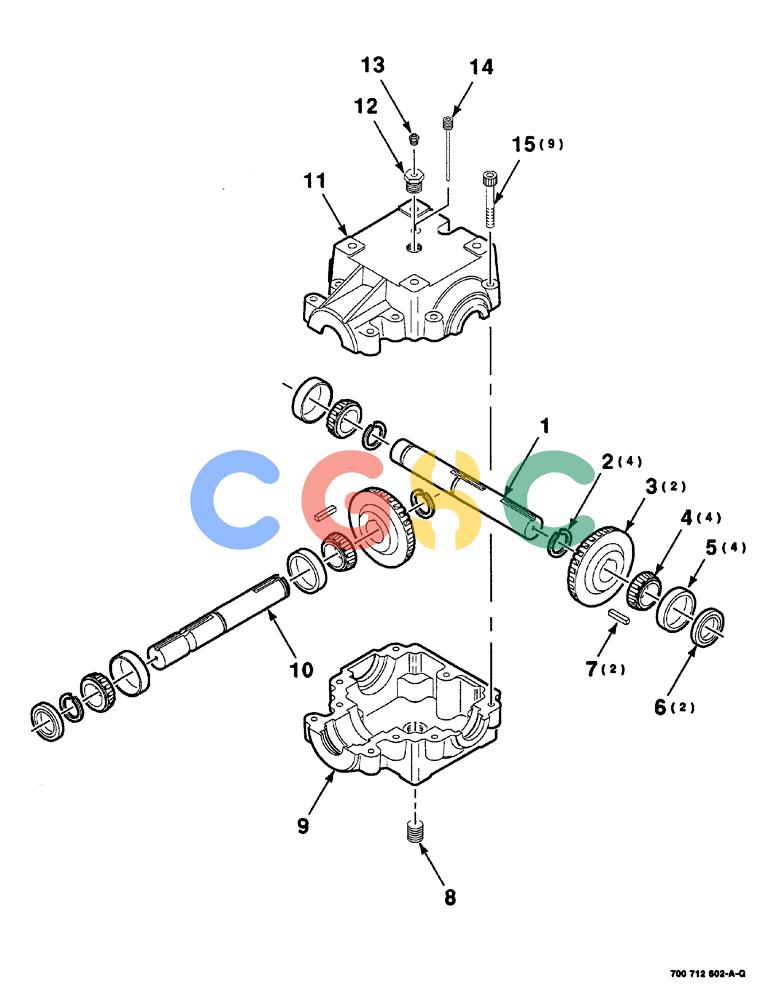

凯斯零件查询(8420) - CASE IH ROUND BALER (1/88-12/00) (02-10) - GEARBOX ASSEMBLY (S/N CFH0054373 AND LATER) Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
679 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
700712602
|
[1] |
GEARBOX ASSY
|
L
complete Superseded by part number: 700725501
|
| 1. |
700712603
|
[1] |
SHAFT
|
CAS
cross
|
| 2. |
700712608
|
[4] |
OIL SEAL
|
CAS
RING retaining
|
| 3. |
700712610
|
[2] |
GEAR
|
CAS
21 tooth
|
| 4. |
T20939
|
[4] |
ROLLER BEARING,1.25" ID x 0.771"
|
CAS
bearing, tapered Superseded by part number: 86576984
|
| 5. |
ST991
|
[4] |
BEARING CUP
|
IH
bearing, tapered Superseded by part number: 116210
|
| 6. |
76961C1
|
[2] |
OIL SEAL
|
IH
Superseded by part number: 701519
|
| 7. |
1707058
|
[2] |
KEY
|
CAS
special, 1/4" x 1/4" x 1.20"
|
| 8. |
217-439
|
[1] |
PLUG,Hex Soc, 1/2" - 14 NPTF
|
CAS
hex CSK pipe, 1/2"-14 NPT Superseded by part number: 86642423
|
| 9. |
700712607
|
[1] |
HOUSING
|
CAS
CASTING tapped holes Superseded by part number: 700725503, 700725334, 700725502
|
| 10. |
700712605
|
[1] |
SHAFT
|
CAS
pinion
|
| 11. |
700712606
|
[1] |
HOUSING
|
CAS
CASTING thru holes Superseded by part number: 700725502, 700725503, 700725334
|
| 12. |
444030
|
[1] |
REDUCER,1/2"-14 NPTF x 1/8"-27 Fem NPTF
|
IH
BUSHING reducer
|
| 13. |
700710818
|
[1] |
VALVE
|
CAS
pressure relief, 5 psi
|
| 14. |
700710819
|
[1] |
DIPSTICK
|
CAS
|
| 15. |
61-33836
|
[9] |
HEX SOC SCREW,3/8 - 16 x 2-1/4"
|
CAS
cap, hex socket head, 3/8"-16 x 2-1/4"
|
