| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

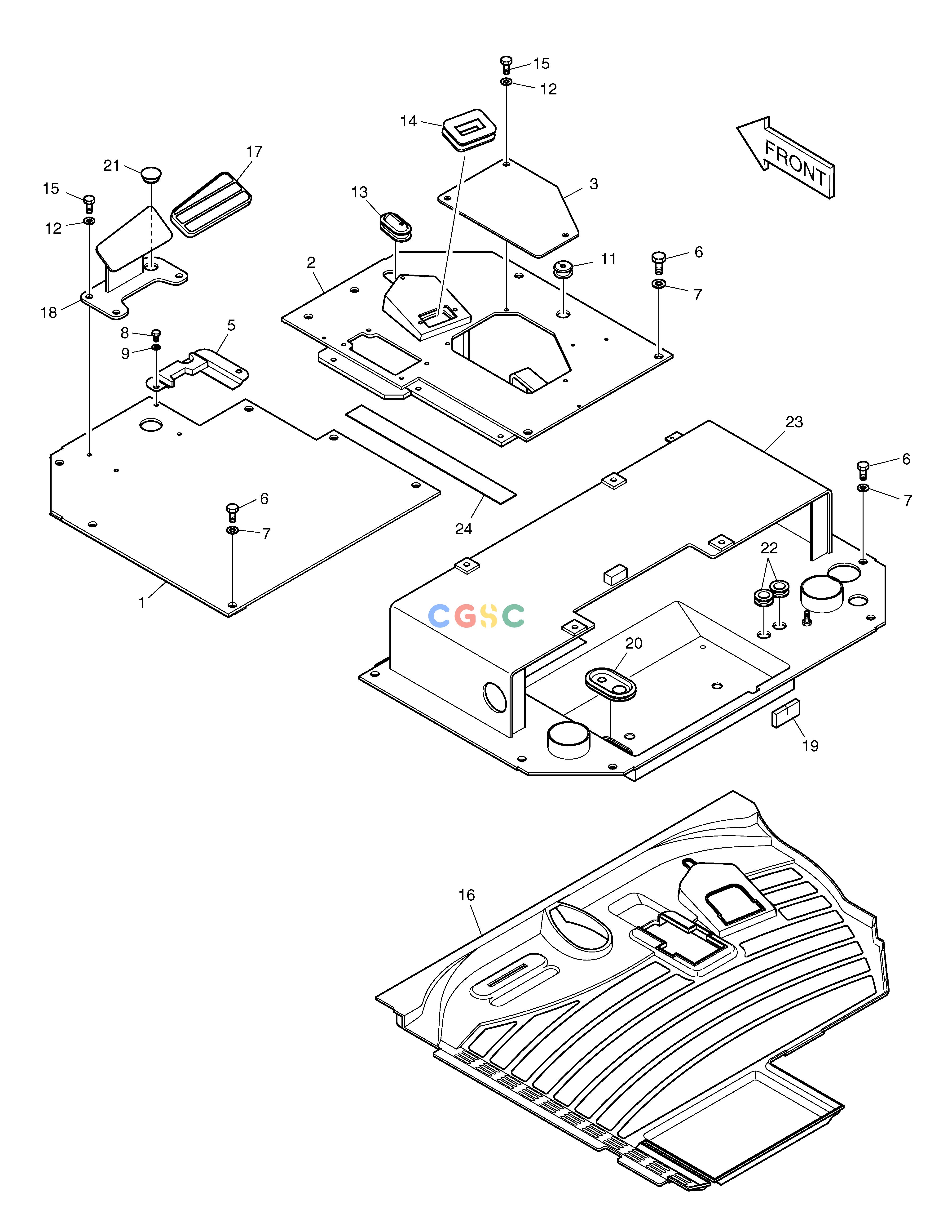

161-00507A
|
[-] |
FLOOR PLATE ASS'Y
|
|
| 1. |
161-00508A
|
[1] |
PLATE;FLOOR
|
|
| 11. |
160-00035
|
[1] |
BUSHING;RUBBER
|
|
| 12. |
2114-1058D56
|
[6] |
WASHER
|
|
| 13. |
2160-1313
|
[1] |
BUSHING;RUBBER
|
|
| 14. |
2160-1312
|
[1] |
BUSHING;RUBBER
|
|
| 15. |
S0508853
|
[6] |
. BOLT
|
|
| 16. |
161-00511
|
[1] |
MAT
|
|
| 17. |
2160-1345
|
[1] |
COVER;FOOT REST
|
|
| 18. |
195-00288C
|
[1] |
BRACKET;FOOT REST
|
|
| 19. |
161-00295
|
[1] |
FOAM
|
|
| 2. |
161-00509A
|
[1] |
PLATE;FLOOR
|
|
| 20. |
2160-1238
|
[1] |
BUSHING;RUBBER
|
|
| 21. |
2161-2487
|
[1] |
CAP
|
|
| 22. |
2160-1004D45
|
[2] |
BUSHING;RUBBER
|
|
| 23. |
621-02426A
|
[1] |
PLATE;FLOOR
|
|
| 24. |
161-00293A
|
[1] |
RUBBER
|
|
| 3. |
621-02272
|
[1] |
COVER;FLOOR
|
|
| 5. |
621-02275A
|
[1] |
COVER;STEERING
|
|
| 6. |
S0512053
|
[17] |
BOLT
|
|
| 7. |
2114-1058D45
|
[17] |
. WASHER
|
|
| 8. |
S0504453
|
[3] |
BOLT
|
|
| 9. |
2114-1058D52
|
[3] |
WASHER
|
|
