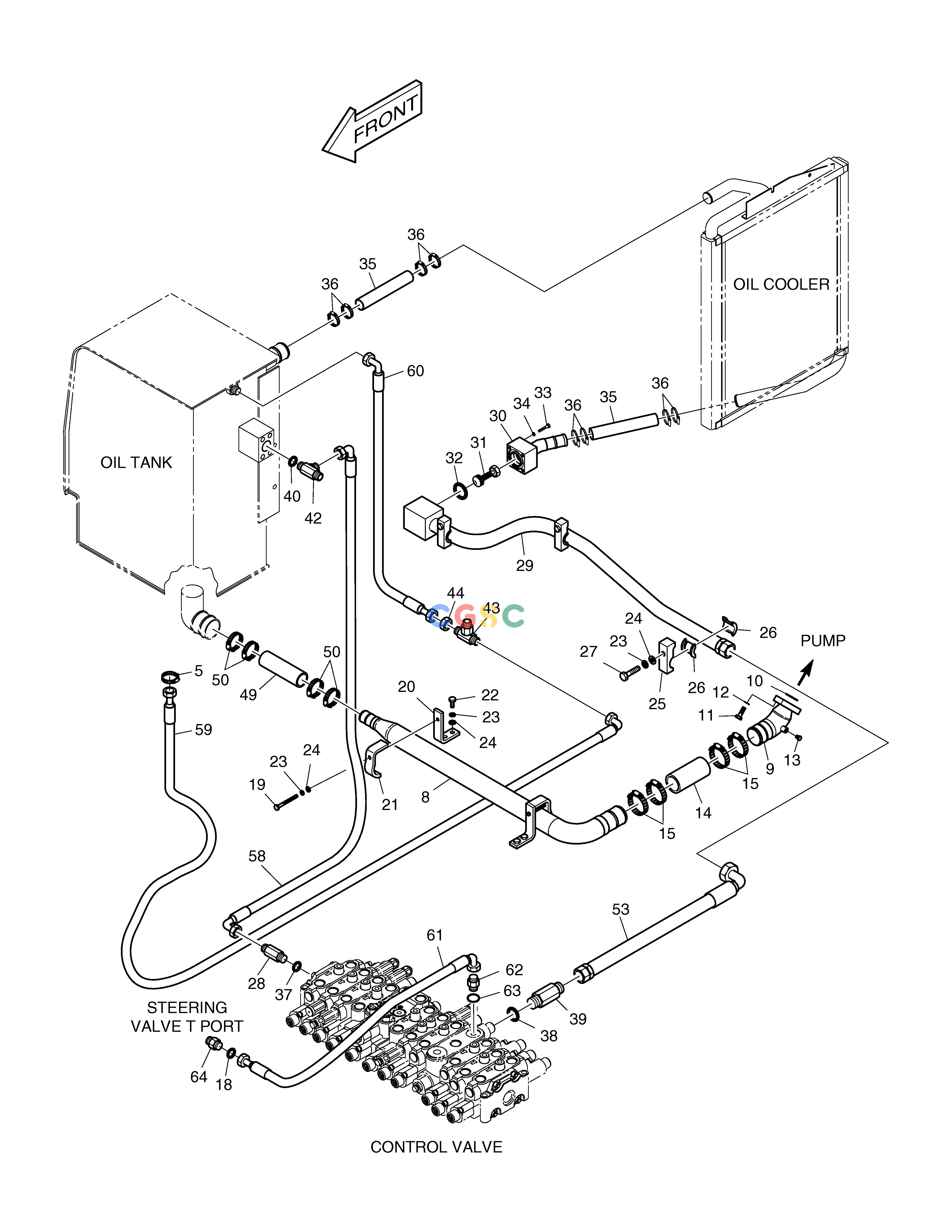

斗山零件查询LOW PRESSURE PIPING(1) B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
936 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-01086A
|
[-] |
PIPING;LOW PRESS
|
|
| 10. |
2180-1026D28
|
[1] |
O-RING
|
|
| 11. |
S2215466
|
[4] |
BOLT
|
|
| 12. |
S5110703
|
[4] |
WASHER
|
|
| 13. |
2181-2047
|
[1] |
PLUG
|
|
| 14. |
2185-1776D42
|
[1] |
HOSE 305L
|
|
| 15. |
S8450082
|
[4] |
CLAMP;HOSE
|
|
| 18. |
S8000141
|
[1] |
O-RING
|
|
| 19. |
S0561853
|
[2] |
BOLT M12X1.75X105
|
|
| 20. |
195-01153
|
[2] |
BRACKET
|
|
| 21. |
2124-1224D9
|
[2] |
CLAMP
|
|
| 22. |
S0515253
|
[4] |
. BOLT
|
|
| 23. |
S5102703
|
[9] |
WASHER
|
|
| 24. |
S5010713
|
[9] |
WASHER;PLAIN
|
|
| 25. |
124-00220
|
[3] |
CLAMP
|
|
| 26. |
161-00102
|
[6] |
RUBBER
|
|
| 27. |
S0560853
|
[3] |
BOLT M12X1.75X55
|
|
| 28. |
2181-1126D123
|
[1] |
ADAPTER
|
|
| 29. |
140-01315A
|
[1] |
PIPE
|
|
| 30. |
140G00643B
|
[1] |
PIPE
|
|
| 31. |
2426-9017
|
[1] |
VALVE;BYPASS
|
2426-9006
|
| 31. |
2426-9006
|
[1] |
VALVE;BY-PASS
|
2426-9017
|
| 31. |
2426-9017
|
[1] |
VALVE;BYPASS
|
|
| 32. |
S8000511
|
[1] |
O-RING
|
|
| 33. |
S2209966
|
[4] |
BOLT;SOCKET M8X1.25X65
|
|
| 34. |
S5110501
|
[4] |
WASHER;SPRING M8
|
|
| 35. |
2185-1776D7
|
[2] |
HOSE
|
|
| 36. |
S8450035
|
[8] |
CLAMP;HOSE
|
|
| 37. |
S8000181
|
[1] |
O-RING
|
|
| 38. |
S8000291
|
[1] |
O-RING
|
|
| 39. |
2181-1126D97
|
[1] |
ADAPTER
|
|
| 40. |
S8000231
|
[1] |
O-RING
|
|
| 42. |
2181-1951D34
|
[1] |
TEE
|
|
| 43. |
DS2411006
|
[1] |
TEE
|
|
| 44. |
121-00010D3
|
[1] |
. NUT
|
|
| 49. |
2185-1776D1
|
[1] |
HOSE
|
|
| 5. |
S8450016
|
[1] |
. CLAMP
|
|
| 50. |
S8450066
|
[4] |
CLAMP;HOSE
|
|
| 53. |
DS2055756
|
[1] |
HOSE PF1-620L
|
|
| 58. |
DS2059369
|
[1] |
HOSE
|
|
| 59. |
DS2055611
|
[1] |
HOSE
|
|
| 60. |
DS2055636
|
[1] |
HOSE
|
|
| 61. |
2184-1036D70
|
[1] |
HOSE PF1/2-450L
|
|
| 62. |
2181-1126D83
|
[1] |
ADAPTER
|
|
| 63. |
S8000181
|
[1] |
O-RING
|
|
| 64. |
2181-1126D115
|
[1] |
ADAPTER
|
|
| 8. |
140-01325A
|
[1] |
PIPE
|
|
| 9. |
140G00143C
|
[1] |
PIPE;SUCTION
|
|
