斗山零件查询LOW PRESSURE PIPING(2) B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
707 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

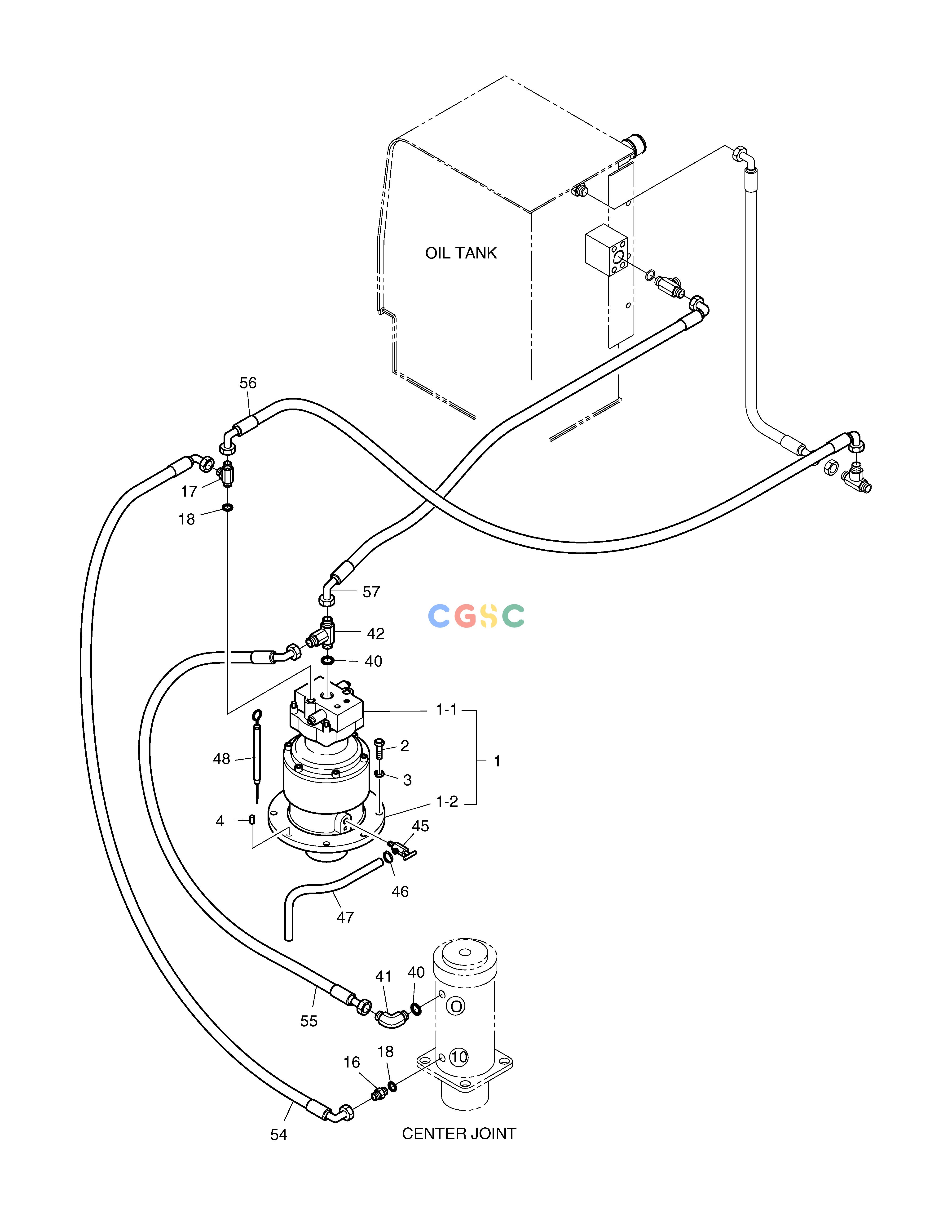

400-01086
|
[-] |
LOW PRESSURE PIPING
|
|
| 1. |
401-00176C
|
[1] |
SWING DEVICE ASS'Y
|
|
| 1-1. |
401-00307B
|
[1] |
MOTOR;SWING
|
|
| 1-2. |
404-00084
|
[1] |
REDUCTION GEAR ASS'Y
|
|
| 16. |
2181-1126D7
|
[1] |
ADAPTER
|
|
| 17. |
2181-1951D16
|
[1] |
TEE
|
|
| 18. |
S8000141
|
[2] |
O-RING
|
|
| 2. |
S0521666
|
[7] |
BOLT
|
|
| 3. |
S5102903
|
[7] |
WASHER
|
|
| 4. |
123-00403
|
[1] |
PIN;LOCK
|
|
| 40. |
S8000231
|
[2] |
O-RING
|
|
| 41. |
2181-1702D1
|
[1] |
ELBOW
|
|
| 42. |
2181-1951D34
|
[1] |
TEE
|
|
| 45. |
186-00014
|
[1] |
COCK;DRAIN
|
|
| 46. |
S8450012
|
[1] |
CLAMP
|
|
| 47. |
184-00066
|
[1] |
HOSE 1000L
|
|
| 48. |
187-00003A
|
[1] |
DIPSTICK
|
|
| 54. |
2184-1096D20
|
[1] |
HOSE PF3/8-700L
|
|
| 55. |
2184-1036D175
|
[1] |
HOSE PF3/4-500L
|
|
| 56. |
2184-1036D209
|
[1] |
HOSE PF3/8-850L
|
|
| 57. |
DS2058234
|
[1] |
HOSE
|
|
