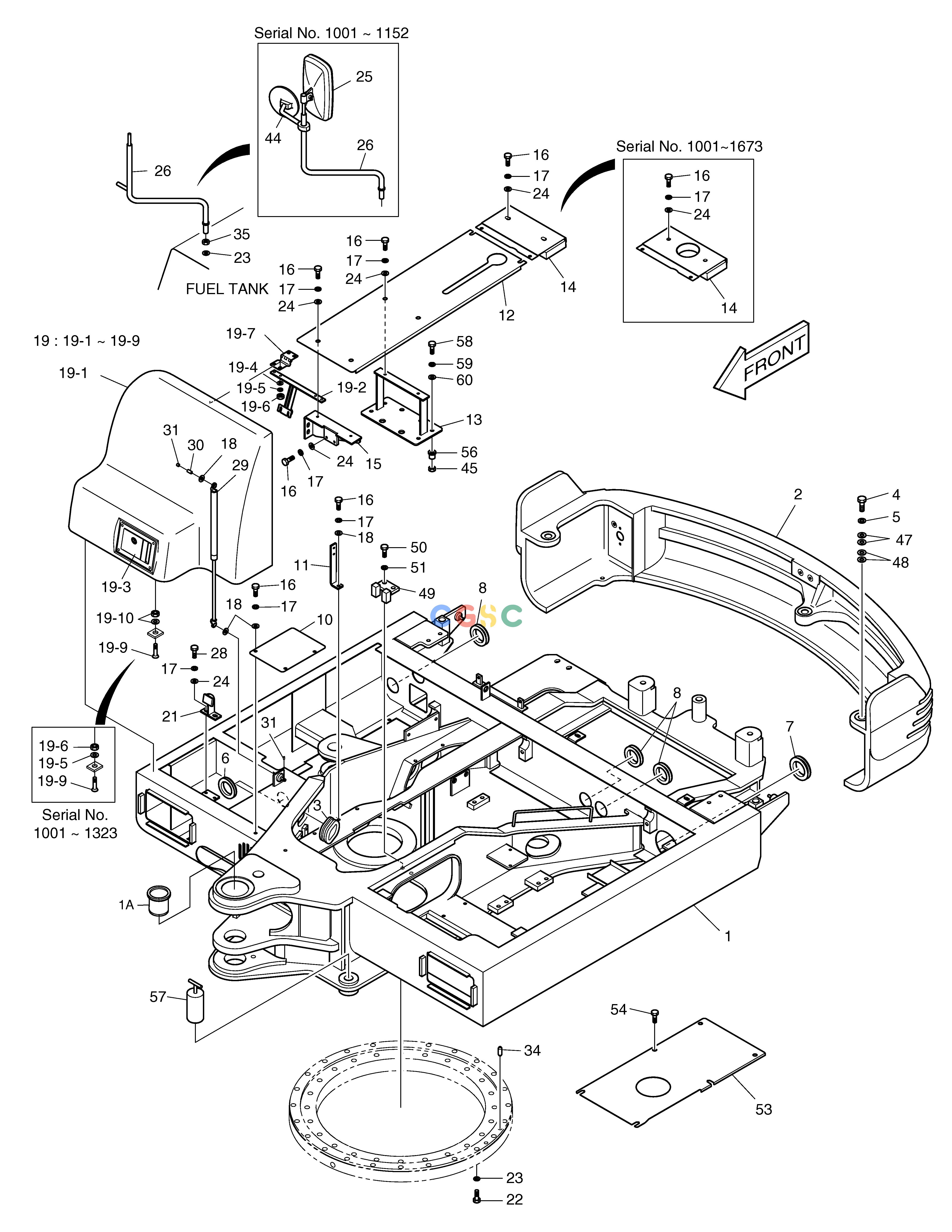

斗山零件查询MAIN FRAME B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
366 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
600-00158
|
[-] |
MAIN FRAME ASS'Y
|
|
| -. |
600-00158A
|
[-] |
MAIN FRAME ASS'Y
|
|
| 1. |
603-00331A
|
[1] |
FRAME;MAIN
|
603-00331C
|
| 1. |
603-00331C
|
[1] |
FRAME;MAIN
|
603-00331E
|
| 1. |
603-00331E
|
[1] |
FRAME;MAIN
|
|
| 10. |
621G02449B
|
[1] |
COVER
|
|
| 11. |
195Y02341
|
[1] |
SUPPORT
|
|
| 12. |
621Y02294B
|
[1] |
COVER
|
|
| 13. |
195Y02208B
|
[1] |
SUPPORT
|
|
| 14. |
621Y02444A
|
[1] |
COVER
|
|
| 14. |
K1013223
|
[1] |
COVER
|
|
| 15. |
195Y02402
|
[1] |
SUPPORT
|
|
| 16. |
S0508653
|
[16] |
BOLT
|
|
| 17. |
S5102503
|
[20] |
. WASHER
|
|
| 18. |
S5010513
|
[6] |
WASHER
|
|
| 19. |
621Y02451B
|
[1] |
COVER ASSY;BATTERY
|
621Y02451C
|
| 19. |
621Y02451C
|
[1] |
COVER ASSY;BATTERY
|
|
| 19-1. |
NA00394
|
[1] |
COVER
|
|
| 19-10. |
S4012333
|
[4] |
NUT
|
|
| 19-2. |
195-02345A
|
[1] |
SUPPORT
|
|
| 19-2. |
195-02345B
|
[1] |
SUPPORT
|
|
| 19-3. |
125-00065
|
[1] |
LOCK
|
|
| 19-4. |
S5102503
|
[6] |
. WASHER
|
|
| 19-5. |
2114-1058D29
|
[8] |
WASHER
|
|
| 19-5. |
2114-1058D29
|
[6] |
WASHER
|
|
| 19-6. |
S4012533
|
[8] |
NUT
|
|
| 19-6. |
S4012533
|
[6] |
NUT
|
|
| 19-7. |
171-00051
|
[2] |
HINGE
|
|
| 19-9. |
S3452993
|
[2] |
SCREW
|
|
| 1A. |
110-00194A
|
[1] |
BUSH
|
|
| 2. |
624-00068
|
[1] |
COUNTER WEIGHT
|
|
| 2. |
624-00068A
|
[1] |
COUNTER WEIGHT
|
|
| 21. |
195Y02340A
|
[1] |
BRACKET
|
|
| 22. |
S0566066
|
[24] |
BOLT
|
|
| 23. |
S5102903
|
[25] |
WASHER
|
|
| 24. |
2114-1058D29
|
[16] |
WASHER
|
|
| 25. |
903-00065
|
[1] |
MIRROR;SIDE
|
|
| 26. |
145-00090A
|
[1] |
STAY;MIRROR
|
|
| 26. |
145-00098
|
[1] |
STAY;MIRROR
|
|
| 26. |
145-00098A
|
[1] |
STAY;MIRROR
|
|
| 28. |
S0508853
|
[4] |
. BOLT
|
|
| 29. |
440-00381A
|
[1] |
CYLINDER;GAS
|
|
| 3. |
2160-1201D14
|
[1] |
BUSHING;RUBBER
|
|
| 30. |
2123-1057D44
|
[1] |
PIN
|
|
| 31. |
2123-1441D4
|
[2] |
PIN
|
|
| 34. |
2123-2132
|
[2] |
PIN;KNOCK
|
|
| 35. |
S4032933
|
[1] |
NUT M16X1.5
|
|
| 4. |
S0571466
|
[3] |
BOLT
|
|
| 44. |
2903-6005
|
[1] |
MIRROR;UNDER
|
|
| 45. |
S4012633
|
[4] |
NUT
|
|
| 47. |
2114-1059D204
|
[6] |
SHIM
|
|
| 48. |
2114-1059D205
|
[6] |
SHIM
|
|
| 49. |
621-00323A
|
[1] |
PLATE;CENTER JOINT LOCK
|
|
| 5. |
2114-9012A
|
[3] |
WASHER
|
|
| 50. |
S0560453
|
[2] |
BOLT M12X1.75X35
|
|
| 51. |
S5102703
|
[2] |
WASHER
|
|
| 53. |
621G02442
|
[1] |
COVER;UNDER
|
|
| 54. |
2120-2196D1
|
[6] |
BOLT;SET M10X1.5X20
|
|
| 56. |
4161-9036
|
[4] |
MOUNT;FLEX
|
|
| 57. |
123-00082
|
[1] |
PIN;SWING LOCK
|
|
| 58. |
S0558453
|
[4] |
BOLT
|
|
| 59. |
S5102603
|
[4] |
. WASHER
|
|
| 6. |
2160-1004D13
|
[1] |
BUSHING;RUBBER
|
|
| 60. |
2114-1898D16
|
[8] |
WASHER
|
|
| 7. |
2160-1004D26
|
[2] |
GROMMET
|
|
| 8. |
2160-1004D3
|
[4] |
BUSHING
|
|
