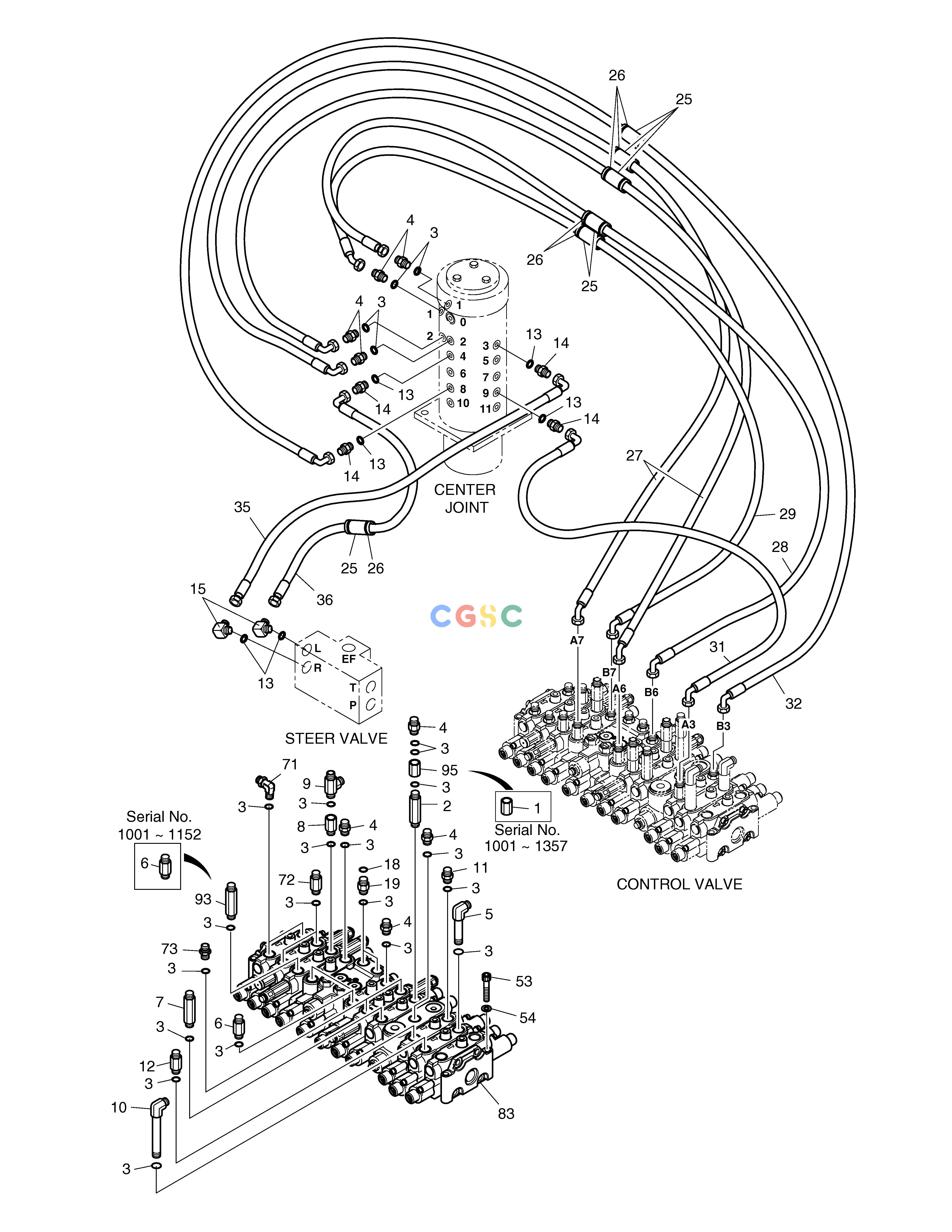

斗山零件查询MAIN PIPING(1) B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
936 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-01245
|
[-] |
MAIN PIPING
|
|
| -. |
400-01245A
|
[-] |
MAIN PIPING
|
|
| 1. |
2420-9466A
|
[1] |
VALVE;CHECK
|
420-00526
|
| 10. |
2181-1702D53
|
[1] |
ELBOW
|
|
| 11. |
2181-1126D23
|
[1] |
ADAPTER
|
|
| 12. |
2181-1126D73
|
[1] |
ADAPTER
|
|
| 13. |
S8000141
|
[6] |
O-RING
|
|
| 14. |
2181-1126D7
|
[4] |
ADAPTER
|
|
| 15. |
2181-1702D5
|
[2] |
ELBOW
|
|
| 18. |
S8030081
|
[2] |
O-RING
|
|
| 19. |
2181-4133D3
|
[2] |
ADAPTER
|
|
| 2. |
2181-1938D15
|
[1] |
ADAPTER
|
|
| 25. |
158-00007A
|
[6] |
PROTECTOR;SLEEVE
|
|
| 26. |
2124-1084D2
|
[12] |
CLIP;BAND
|
|
| 27. |
DS2059425
|
[2] |
HOSE
|
|
| 28. |
2184-1036D350
|
[1] |
HOSE
|
|
| 29. |
2184-1076D93
|
[1] |
HOSE
|
|
| 3. |
S8000181
|
[30] |
O-RING
|
|
| 31. |
DS2059438
|
[1] |
HOSE
|
|
| 32. |
2184-1061D258
|
[1] |
HOSE
|
|
| 35. |
DS2055781
|
[1] |
HOSE
|
|
| 36. |
DS2055782
|
[1] |
HOSE
|
|
| 4. |
2181-1126D6
|
[9] |
ADAPTER
|
|
| 5. |
2181-1702D2
|
[1] |
ELBOW
|
|
| 53. |
S2210276
|
[4] |
BOLT;SOCKET
|
|
| 54. |
S5110503
|
[4] |
WASHER
|
|
| 6. |
2181-1126D83
|
[3] |
ADAPTER
|
|
| 6. |
2181-1126D83
|
[2] |
ADAPTER
|
|
| 7. |
2181-1126D117
|
[1] |
ADAPTER
|
|
| 71. |
2181-1702D14
|
[2] |
ELBOW
|
|
| 72. |
2181-1126D6
|
[1] |
ADAPTER
|
|
| 72. |
2181-1126D6
|
[2] |
ADAPTER
|
|
| 73. |
2181-1126D117
|
[2] |
ADAPTER
|
|
| 8. |
2181-2337D10
|
[1] |
REDUCER
|
|
| 83. |
420-00427A
|
[1] |
CONTROL VALVE
|
420-00427B
|
| 83. |
420-00427B
|
[1] |
CONTROL VALVE
|
|
| 9. |
2181-1951D42
|
[1] |
TEE
|
|
| 93. |
2181-1126D83
|
[1] |
ADAPTER
|
|
| 95. |
420-00526
|
[1] |
VALVE;CHECK
|
|
