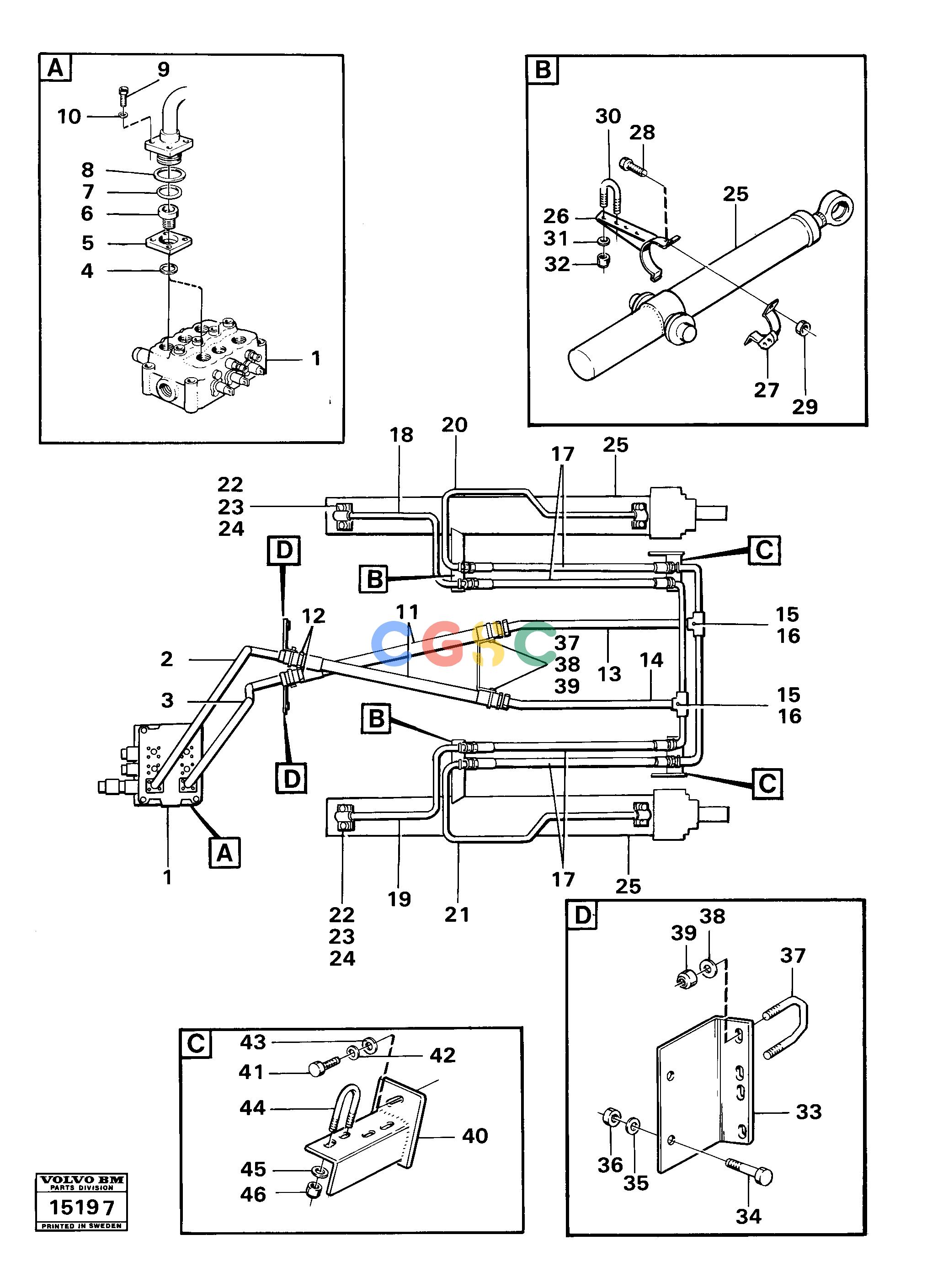

沃尔沃零件查询4300 Lifting system4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
200 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE4739980
|
[0002] |
Flange
|
SER NO -1812,2317-2324
|
| 46. |
VOE963106
|
[0008] |
Lock nut
|
|
| 6. |
VOE4780711
|
[0002] |
Hollow screw
|
SER NO -1812,2317-2324
|
| 7. |
VOE949659
|
[0002] |
O-ring
|
|
| 8. |
VOE14013071
|
[0002] |
Sealing washer
|
SER NO - 1812
|
| 9. |
VOE930399
|
[0008] |
Screw
|
|
| 1. |
|
[0001] |
Control valve
|
|
| 10. |
VOE13941907
|
[0008] |
Washer
|
SER NO -2586
|
| 11. |
VOE929938
|
[0002] |
Hose assembly
|
|
| 12. |
VOE958229
|
[0002] |
O-ring
|
|
| 13. |
VOE4927049
|
[0001] |
Tube
|
|
| 14. |
VOE4927050
|
[0001] |
Tube
|
|
| 15. |
VOE941371
|
[0002] |
Plug
|
|
| 16. |
VOE958225
|
[0002] |
O-ring
|
|
| 17. |
VOE929622
|
[0004] |
Hose assembly
|
|
| 18. |
VOE4927047
|
[0001] |
Tube
|
PROD NO 33100, 33105
|
| |
VOE4929762
|
[0001] |
Tube
|
PROD NO 33106, 33107
|
| 19. |
VOE4927048
|
[0001] |
Tube
|
PROD NO 33100, 33105
|
| |
VOE4929763
|
[0001] |
Tube
|
PROD NO 33106, 33107
|
| 2. |
VOE4927539
|
[0001] |
Feed line
|
SER NO - 1812
|
| 20. |
VOE4927043
|
[0001] |
Tube
|
PROD NO 33100, 33105
|
| |
VOE4929772
|
[0001] |
Tube
|
PROD NO 33106, 33107
|
| |
VOE4929330
|
[0001] |
Tube
|
SER NO 1813 -
|
| 21. |
VOE4927044
|
[0001] |
Tube
|
PROD NO 33100, 33105
|
| |
VOE4929773
|
[0001] |
Tube
|
PROD NO 33106, 33107
|
| 22. |
VOE959238
|
[0008] |
Hex. socket screw
|
PROD NO 33100, 33105
|
| |
VOE959238
|
[0016] |
Hex. socket screw
|
PROD NO 33106, 33107
|
| 23. |
VOE941908
|
[0008] |
Spring washer
|
PROD NO 33100, 33105
|
| |
VOE941908
|
[0016] |
Spring washer
|
PROD NO 33106, 33107
|
| 24. |
VOE13960172
|
[0004] |
O-ring
|
|
| 25. |
VOE4782255
|
[0002] |
Lifting cylinder
|
PROD NO 33100, 33105
|
| |
|
|
None
|
|
| |
VOE4782900
|
[0002] |
Hydraulic cylinder
|
PROD NO 33106, 33107
|
| |
|
|
None
|
|
| 26. |
VOE4927054
|
[0001] |
Clamp
|
V
|
| |
VOE4927053
|
[0001] |
Clamp
|
H
|
| 27. |
VOE4927073
|
[0001] |
Clamp
|
V
|
| |
VOE4927074
|
[0001] |
Clamp
|
H
|
| 3. |
VOE4927494
|
[0001] |
Feed line
|
SER NO - 1812
|
| 28. |
VOE13970971
|
[0004] |
Hexagon screw
|
|
| |
VOE4929326
|
[0001] |
Tube
|
SER NO 1813 -
|
| 29. |
VOE13971090
|
[0004] |
Lock nut
|
|
| 30. |
VOE4739984
|
[0004] |
Clamp
|
|
| 31. |
VOE13955894
|
[0008] |
Washer
|
|
| 32. |
VOE963106
|
[0008] |
Lock nut
|
|
| 33. |
VOE4763504
|
[0002] |
Retainer
|
|
| 34. |
VOE13970949
|
[0003] |
Hexagon screw
|
L=35
|
| |
VOE970952
|
[0001] |
Hexagon screw
|
L=50
|
| 35. |
VOE941908
|
[0004] |
Spring washer
|
|
| 36. |
VOE971071
|
[0004] |
Hexagon nut
|
|
| 4. |
VOE4780734
|
[0002] |
Back-up ring
|
|
| 37. |
VOE4739983
|
[0006] |
Clamp
|
|
| 38. |
VOE13955894
|
[0012] |
Washer
|
|
| 39. |
VOE963106
|
[0012] |
Lock nut
|
|
| 40. |
VOE4763558
|
[0001] |
Bracket
|
V
|
| |
VOE4763559
|
[0001] |
Bracket
|
H
|
| 41. |
VOE970945
|
[0004] |
Hexagon screw
|
|
| 42. |
VOE941908
|
[0004] |
Spring washer
|
|
| 43. |
VOE976945
|
[0004] |
Washer
|
|
| 44. |
VOE4739984
|
[0004] |
Clamp
|
|
| 45. |
VOE13955894
|
[0008] |
Washer
|
|
