沃尔沃零件查询4300 Tilting system4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
715 次

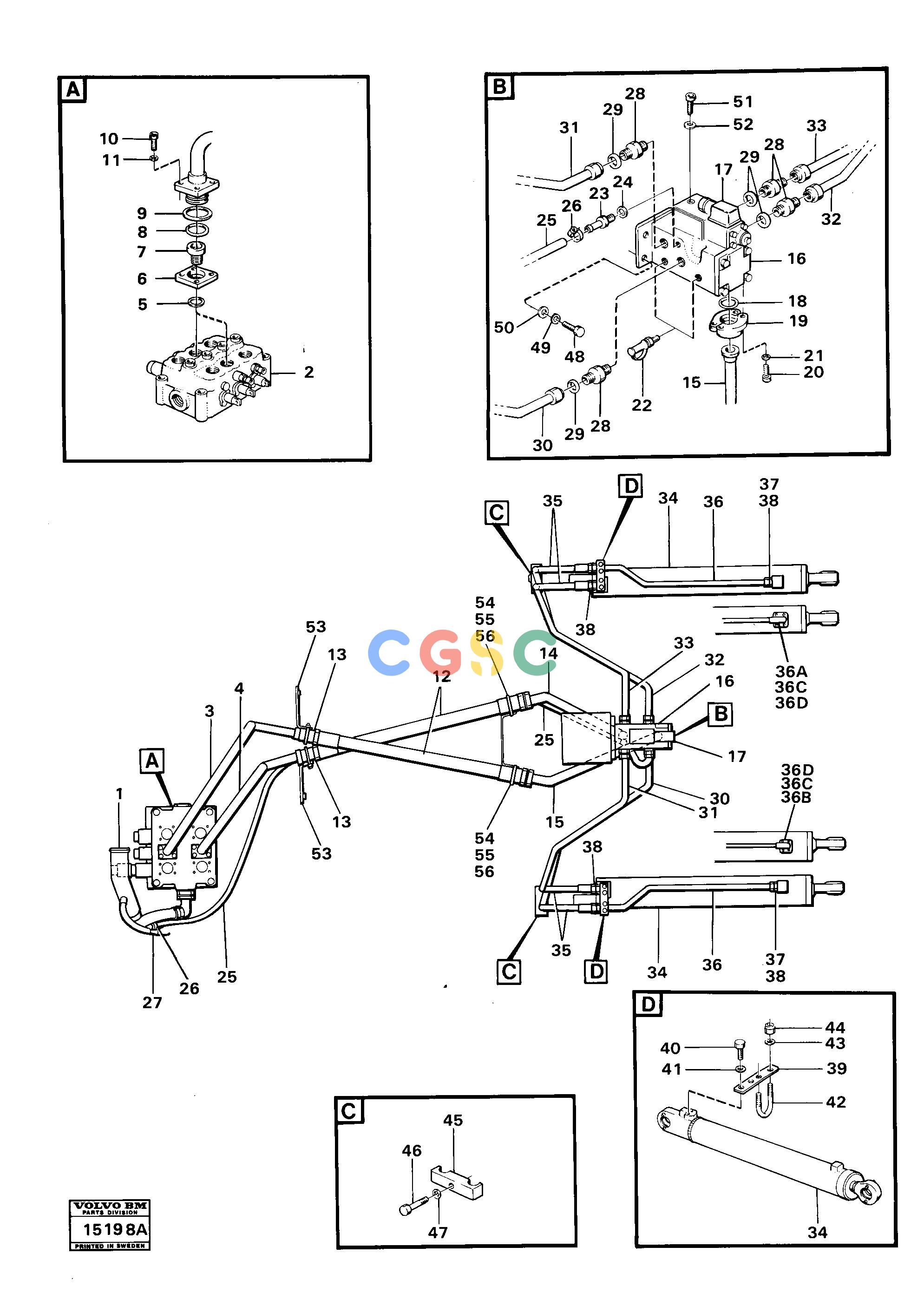

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
Feed lines
|
|
| 2. |
|
|
Control valve
|
|
| 3. |
VOE4927541
|
[0001] |
Feed line
|
SER NO - 1812
|
| |
VOE4932308
|
[0001] |
Tube
|
SER NO 1813 -
|
| |
VOE4932308
|
[0001] |
Tube
|
PROD NO 33106, 33107
|
| 4. |
VOE4927496
|
[0001] |
Feed line
|
SER NO - 1812
|
| |
VOE4929328
|
[0001] |
Tube
|
SER NO 1813 -
|
| 5. |
VOE4780734
|
[0002] |
Back-up ring
|
|
| 6. |
VOE4739980
|
[0002] |
Flange
|
SER NO -1812,2317-2324
|
| 7. |
VOE4780711
|
[0002] |
Hollow screw
|
SER NO -1812,2317-2324
|
| 8. |
VOE949659
|
[0002] |
O-ring
|
|
| 9. |
VOE14013071
|
[0002] |
Sealing washer
|
SER NO - 1812
|
| 10. |
VOE930399
|
[0008] |
Screw
|
|
| 11. |
VOE13941907
|
[0008] |
Washer
|
SER NO -2586
|
| 12. |
VOE929938
|
[0002] |
Hose assembly
|
|
| 13. |
VOE958229
|
[0002] |
O-ring
|
|
| 14. |
VOE4927127
|
[0001] |
Tube
|
|
| 15. |
VOE11002561
|
[0001] |
Tube
|
|
| 16. |
VOE4851951
|
[0001] |
Valve
|
|
| |
|
|
None
|
|
| |
VOE4929243
|
[0001] |
Connection block
|
|
| |
VOE941375
|
[0001] |
Plug
|
|
| |
VOE958229
|
[0001] |
O-ring
|
|
| |
VOE4929244
|
[0001] |
Anchorage
|
|
| |
VOE970945
|
[0002] |
Hexagon screw
|
|
| |
VOE941908
|
[0002] |
Spring washer
|
|
| 17. |
VOE4787242
|
[0001] |
Solenoid valve
|
|
| 18. |
VOE990756
|
[0002] |
Sealing ring
|
PROD NO 33100, 33105
|
| |
VOE990756
|
[0002] |
Sealing ring
|
PROD NO 33106, 33107
|
| 19. |
VOE927947
|
[0004] |
Flange half
|
|
| 20. |
VOE13970948
|
[0008] |
Hexagon screw
|
|
| 21. |
VOE941908
|
[0008] |
Spring washer
|
|
| 22. |
VOE930032
|
[2] |
Testing nipple
|
|
| 23. |
VOE4850485
|
[1] |
Nipple
|
|
| 24. |
VOE958225
|
[1] |
O-ring
|
|
| 25. |
VOE961190
|
[REQ] |
Hose
|
L= 2250
|
| 26. |
VOE943471
|
[2] |
Hose clamp
|
|
| 27. |
|
[1] |
Y-pipe
|
|
| 28. |
VOE926302
|
[4] |
Nipple
|
|
| 29. |
VOE958229
|
[4] |
O-ring
|
|
| 30. |
VOE4927116
|
[1] |
Tube
|
|
| 31. |
VOE4927109
|
[1] |
Tube
|
|
| 32. |
VOE4927115
|
[1] |
Tube
|
|
| 33. |
VOE4927108
|
[1] |
Tube
|
|
| 34. |
VOE4782256
|
[2] |
Tilt Cylinder
|
SER NO -3020
|
| 34. |
VOE4782256
|
[1] |
Tilt Cylinder
|
V SER NO - 3020
|
| |
|
|
None
|
|
| |
VOE4782256
|
[1] |
Tilt Cylinder
|
H SER NO - 3020
|
| |
|
|
None
|
|
| |
VOE4782898
|
[2] |
Hydraulic cylinder
|
SER NO 3021-
|
| |
|
|
None
|
|
| 35. |
VOE928713
|
[4] |
Hose assembly
|
|
| 36. |
VOE4925000
|
[2] |
Feed line
|
SER NO -3020
|
| |
|
|
None
|
PROD NO 33100, 33105
|
| |
VOE4932269
|
[1] |
Tube
|
V SER NO 3021-
|
| |
VOE4850623
|
[1] |
Connector
|
|
| |
VOE4932270
|
[1] |
Tube
|
H SER NO 3021-
|
| |
VOE4850623
|
[1] |
Connector
|
|
| 36A. |
VOE4932269
|
[1] |
Tube
|
V PROD NO 33106, 33107
|
| |
VOE4850623
|
[1] |
Connector
|
|
| 36B. |
VOE4932270
|
[1] |
Tube
|
H PROD NO 33106, 33107
|
| |
VOE4850623
|
[1] |
Connector
|
|
| 36C. |
VOE990741
|
[2] |
O-ring
|
PROD NO 33106, 33107
|
| 36D. |
VOE959222
|
[8] |
Hex. socket screw
|
SER NO 3021-
|
| 37. |
VOE957035
|
[2] |
Nipple
|
PROD NO 33100, 33105
|
| 38. |
VOE958228
|
[6] |
O-ring
|
SER NO -3020
|
| |
VOE990741
|
[2] |
O-ring
|
SER NO 3021-
|
| 39. |
|
[2] |
Attaching plate
|
|
| 40. |
VOE13955295
|
[4] |
Screw
|
|
| 41. |
VOE13941907
|
[4] |
Washer
|
|
| 42. |
VOE4924995
|
[2] |
Clamp
|
SER NO -3020
|
| |
VOE4850621
|
[2] |
Clamp
|
SER NO 3021-
|
| 43. |
VOE13941907
|
[4] |
Washer
|
|
| 44. |
VOE963106
|
[0004] |
Lock nut
|
|
| 45. |
VOE4929988
|
[0004] |
Clamp
|
|
| 46. |
VOE13970950
|
[0004] |
Hexagon screw
|
|
| 47. |
VOE941908
|
[0004] |
Spring washer
|
|
| 48. |
VOE13970948
|
[0004] |
Hexagon screw
|
|
| 49. |
VOE941908
|
[0004] |
Spring washer
|
|
| 50. |
VOE976945
|
[0004] |
Washer
|
|
| 51. |
VOE959193
|
[0004] |
Hex. socket screw
|
|
| 52. |
VOE955946
|
[0004] |
Toothed washer
|
|
| 53. |
|
[0002] |
Bracket
|
|
| 54. |
VOE4739983
|
[0002] |
Clamp
|
|
| 55. |
VOE13955894
|
[0004] |
Washer
|
|
| 56. |
VOE963106
|
[0004] |
Lock nut
|
|
