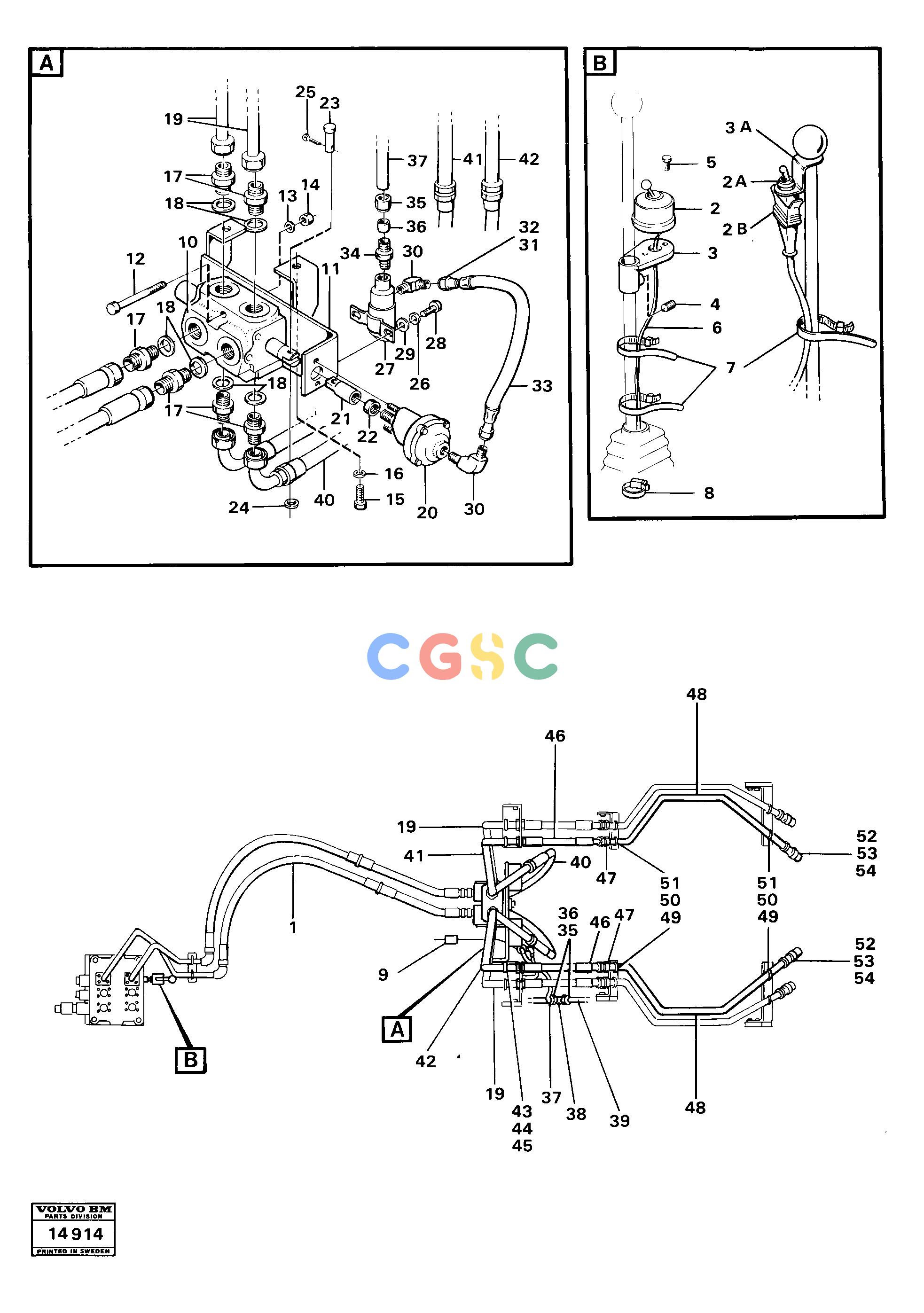

沃尔沃零件查询4300 4:th function 978324300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
1026 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE916304
|
[0002] |
Screw
|
SER NO -1382
|
| 50. |
VOE13955894
|
[8] |
Washer
|
|
| 51. |
VOE963106
|
[8] |
Lock nut
|
|
| 52. |
VOE11043022
|
[2] |
Nipple
|
|
| 53. |
VOE14013070
|
[2] |
Sealing washer
|
|
| 54. |
VOE11147586
|
[2] |
Dust cover
|
|
| 6. |
|
[0001] |
Cable
|
SER NO -1382
|
| |
|
|
None
|
|
| 7. |
VOE4881440
|
[0002] |
Cable tie
|
|
| 8. |
VOE4881440
|
[0001] |
Cable tie
|
|
| |
|
|
None
|
SER NO -1382
|
| 9. |
VOE191910
|
[0001] |
Connector
|
SER NO -1382
|
| 1. |
|
|
3:rd function
|
|
| 10. |
|
[0001] |
Valve
|
|
| 11. |
VOE4927469
|
[0001] |
Attaching Plate
|
|
| 12. |
VOE970960
|
[0002] |
Hexagon screw
|
|
| 13. |
VOE941908
|
[0002] |
Spring washer
|
|
| 14. |
VOE971071
|
[0002] |
Hexagon nut
|
|
| 15. |
VOE13970948
|
[0002] |
Hexagon screw
|
|
| 16. |
VOE941908
|
[0002] |
Spring washer
|
|
| 17. |
VOE13943988
|
[0006] |
Nipple
|
|
| 18. |
VOE14013070
|
[0006] |
Sealing washer
|
|
| 19. |
|
|
3:rd function
|
|
| 2. |
VOE4785826
|
[0001] |
Toggle switch
|
SER NO -1382
|
| 20. |
|
[0001] |
Pneumatic cylinder
|
|
| 21. |
VOE4741636
|
[0001] |
Extension
|
|
| 22. |
VOE13955847
|
[0001] |
Nut
|
|
| 23. |
VOE4741637
|
[0001] |
Pin
|
|
| 24. |
VOE955895
|
[0001] |
Plain washer
|
|
| 2A. |
VOE4786696
|
[0001] |
Switch
|
SER NO 1383-
|
| 25. |
VOE907845
|
[0001] |
Split pin
|
|
| 27. |
VOE1584894
|
[0001] |
Solenoid valve
|
|
| |
VOE949005
|
[0001] |
Receptacle housing
|
|
| |
VOE13949371
|
[0001] |
Cable terminal
|
|
| |
VOE11000257
|
[0003] |
Plug
|
|
| 26. |
VOE13941906
|
[0004] |
Washer
|
|
| 28. |
VOE955270
|
[0002] |
Hexagon screw
|
|
| 2B. |
VOE945783
|
[0001] |
Housing Cover
|
SER NO 1383-
|
| 29. |
VOE13941906
|
[0002] |
Washer
|
|
| 30. |
VOE13948414
|
[0002] |
Nipple
|
|
| 3. |
VOE4743558
|
[0001] |
Anchorage
|
SER NO -1382
|
| 31. |
VOE941521
|
[0002] |
Fitting nut
|
|
| 32. |
VOE13956967
|
[0002] |
Ferrule
|
|
| 33. |
VOE6225917
|
[REQ] |
Plastic pipe
|
L = 240
|
| 34. |
VOE942006
|
[0001] |
Nipple
|
|
| 3A. |
VOE4850338
|
[0001] |
Retainer
|
SER NO 1383-
|
| 35. |
VOE956981
|
[0004] |
Fitting nut
|
|
| 36. |
VOE13956967
|
[0004] |
Ferrule
|
|
| 37. |
VOE6225917
|
[0800] |
Plastic pipe
|
|
| 38. |
VOE957121
|
[0001] |
T-nipple
|
|
| 39. |
|
|
Hose
|
SEE GROUP 51
|
| 4. |
VOE13961200
|
[0001] |
Screw
|
SER NO -1382
|
| 40. |
VOE931697
|
[0002] |
Hose assembly
|
|
| |
VOE4880494
|
[0002] |
O-ring
|
|
| 41. |
VOE4928918
|
[0001] |
Tube
|
|
| 42. |
VOE4928920
|
[0001] |
Tube
|
|
| 43. |
VOE4739984
|
[0002] |
Clamp
|
|
| 44. |
VOE13955894
|
[4] |
Washer
|
|
| 45. |
VOE963106
|
[4] |
Lock nut
|
|
| 46. |
VOE931710
|
[2] |
Hose assembly
|
|
| |
VOE4880494
|
[4] |
O-ring
|
|
| 47. |
VOE957060
|
[4] |
Nipple
|
|
| 48. |
VOE11002291
|
[2] |
Tube
|
|
| 49. |
VOE4739984
|
[4] |
Clamp
|
|
