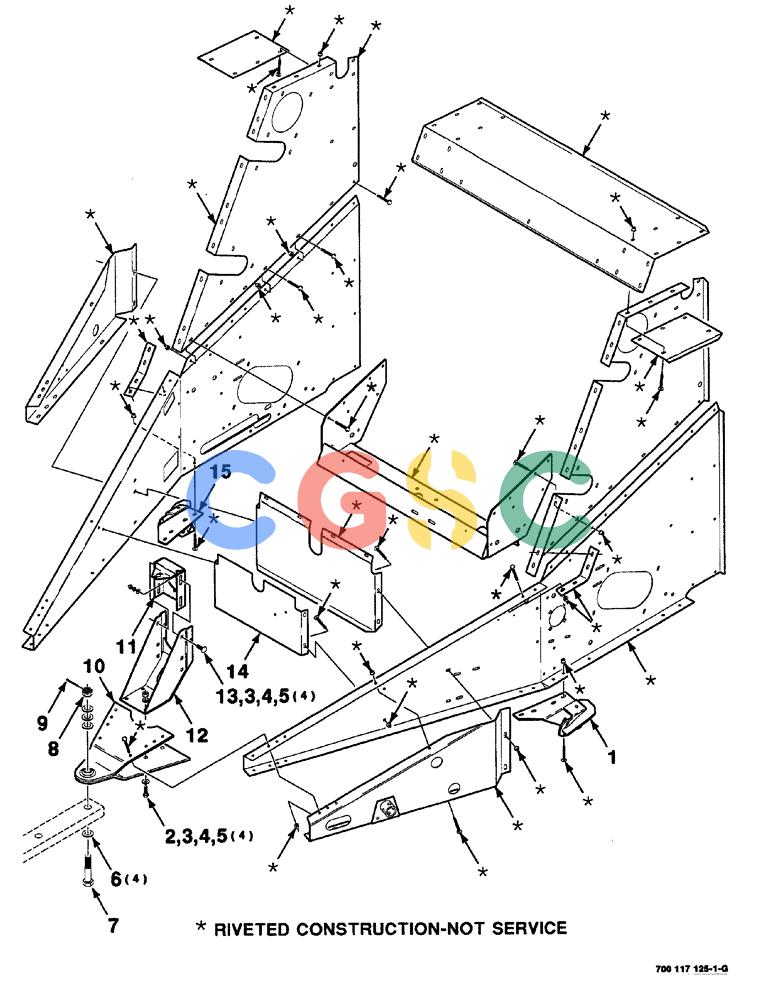

凯斯零件查询(8420) - CASE IH ROUND BALER (1/88-12/00) (07-04) - HITCH AND MAINFRAME ASSEMBLY Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
172 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700117162
|
[1] |
SUPPORT
|
HFI
WA left
|
| 2. |
413-824
|
[4] |
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
|
CAS
Superseded by part number: 87689, 72187216
|
| 3. |
705541
|
[8] |
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
|
CAS
hardened plain, 1/2"
|
| 4. |
80679
|
[8] |
LOCK WASHER,1/20.507 CST ZND
|
NH
|
| 5. |
425-108
|
[8] |
NUT,1/2" - 13, Gr 5
|
CAS
Superseded by part number: 280431
|
| 6. |
705574
|
[4] |
WASHER,1 1/8" x 2" x .156", HDN
|
CAS
|
| 7. |
6471791
|
[1] |
BOLT
|
L
hex cap, special, 1"-8 x 5"
|
| 8. |
425-1216
|
[1] |
SLOTTED NUT,Hex, 1"-8, G5
|
CAS
Superseded by part number: 87343900
|
| 9. |
432-1232
|
[1] |
COTTER PIN,3/16" OD x 2" L
|
CAS
Superseded by part number: 87400
|
| 10. |
700101678
|
[1] |
HITCH ASSY, TRAILER
|
L
WA
|
| 11. |
700131855
|
[1] |
SUPPORT
|
HFI
bearing
|
| 12. |
700131869
|
[1] |
SUPPORT
|
HFI
MOUNTING bearing
|
| 13. |
433-824
|
[4] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5
|
CAS
Superseded by part number: 280420, 72187237
|
| 14. |
700131754
|
[1] |
PANEL
|
HFI
twine box, front
|
| 15. |
700117163
|
[1] |
SUPPORT
|
HFI
WA right
|
