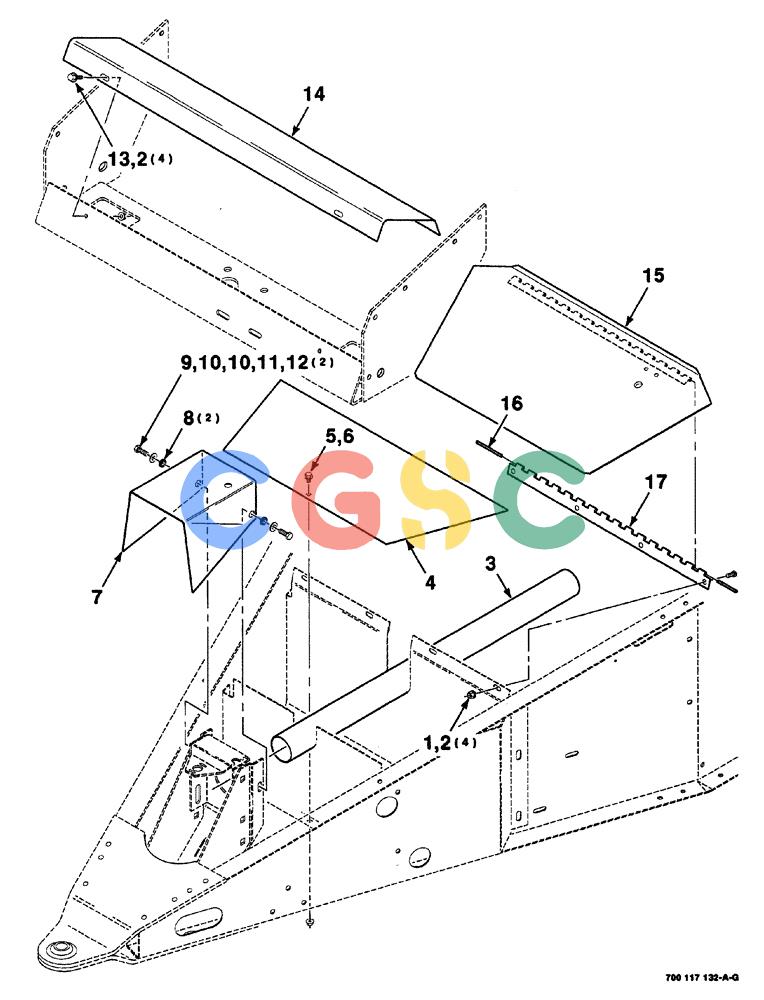

凯斯零件查询(8420) - CASE IH ROUND BALER (1/88-12/00) (07-08) - SHIELDS ASSEMBLY (U-JOINT AND TWINE BOX) Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
220 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
440-13812
|
[4] |
SCREW,Cross Pan Hd, 3/8"-16 x 3/4"
|
CAS
machine, cross recess pan head, 3/8"-16 x 3/4" Superseded by part number: 86511946
|
| 2. |
231-5146
|
[8] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 3. |
700101843
|
[1] |
SHIELD
|
CAS
shaft, drive
|
| 3. |
700127911
|
[1] |
SHIELD
|
HFI
shaft, drive
|
| 4. |
700101720
|
[1] |
FOOT BOARD
|
HFI
twine box
|
| 5. |
256873
|
[1] |
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
|
NH
|
| 6. |
231-5145
|
[1] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
Superseded by part number: 72187067, 145458
|
| 7. |
700101851
|
[1] |
SHIELD
|
HFI
U-joint
|
| 8. |
160127
|
[2] |
SPACER
|
HFI
BUSHING
|
| 9. |
413-616
|
[2] |
BOLT,Hex, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 88206, 72187206
|
| 10. |
496-11041
|
[4] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
hardened plain, 3/8" Superseded by part number: 86632588
|
| 11. |
492-11038
|
[2] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 12. |
425-106
|
[2] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 13. |
121-226
|
[4] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 14. |
700101850
|
[1] |
SHIELD
|
HFI
|
| 15. |
700117211
|
[1] |
COVER ASSY
|
HFI
WA
|
| 16. |
65250
|
[1] |
PIN,4.76mm OD x 571.5mm L
|
CAS
hinge
|
| 17. |
700101848
|
[1] |
HALF-HINGE
|
HFI
lid, twine box
|
