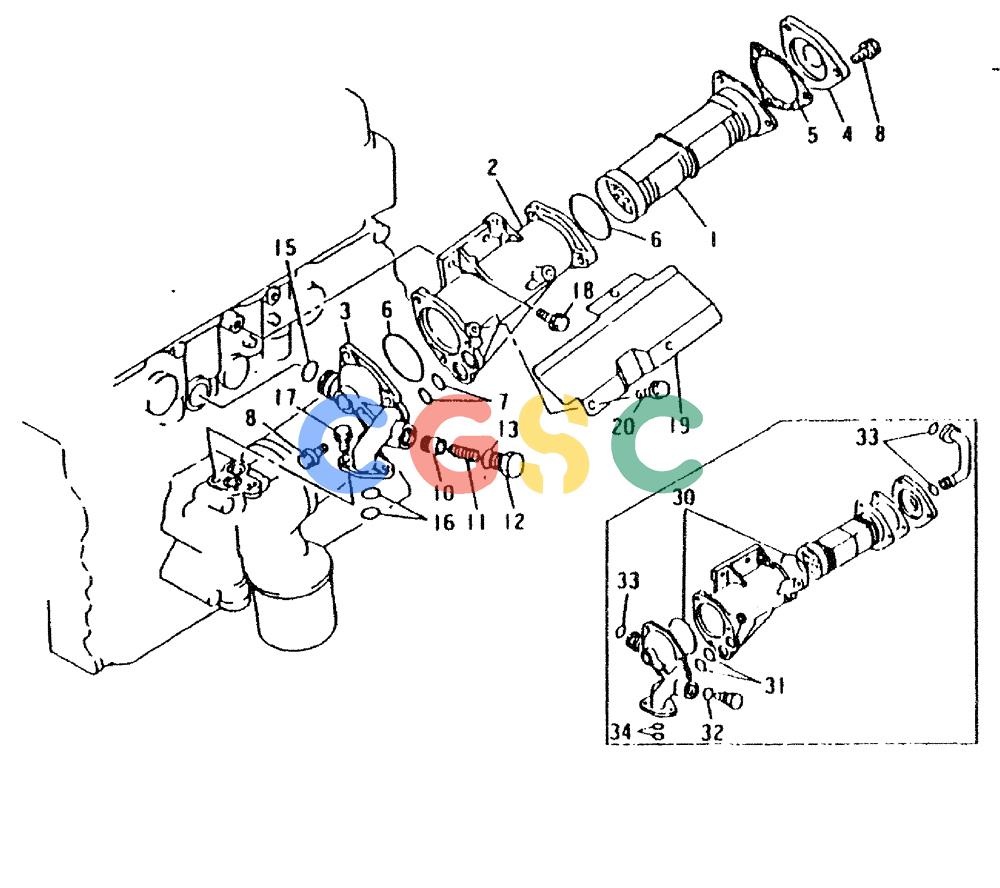

神钢零件查询(4D31-T) - MITSUBISHI DIESEL ENGINE (1/88-12/06) (02-010) - OIL COOLER Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
405 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-13. | VAME014778 | [1] | OIL COOLER OIL COOLER ASSY | OIL COOLER OIL COOLER ASSY |
| 1. | VAME014766 | [1] | ELEMENT | KOBELEMENT, OIL COOLER |
| 2. | VAME014779 | [1] | SHELL, OIL COOLER | |
| 3. | VAME014777 | [1] | COVER, OIL COOLER RE | |
| 4. | VAME014757 | [1] | COVER | KOBCOVER, OIL COOLER FR |
| 5. | VAME014715 | [1] | GASKET | KOBGASKET |
| 6. | VAME014772 | [2] | O-RING | KOBO-RING |
| 7. | VAMH035091 | [2] | O-RING | KOBO-RING 22 |
| 8. | VAMF140025 | [6] | SCREW | KOBBOLT, FLANGE 8 X 20 |
| 10. | VAME084527 | [1] | VALVE PRESSURE RELIE | KOBVALVE Superseded by part number: 240095A1 |
| 11. | VAME084526 | [1] | SPRING | KOBSPRING |
| 12. | VAME014717 | [1] | PINION | KOBPLUG Superseded by part number: 240099A1 |
| 13. | VAMH035044 | [1] | O-RING | KOBO-RING 18 Superseded by part number: 240098A1 |
| 15. | VAMF520016 | [1] | O-RING | KOBO-RING 22.1 |
| 16. | VAMH035015 | [2] | O-RING | KOBO-RING 17 |
| 17. | VAMF140225 | [2] | BOLT | KOBBOLT, FLANGE 8 X 20 |
| 18. | VAMH000714 | [2] | BOLT | KOBBOLT, FLANGE 10 X 25 |
| 19. | VAME014780 | [1] | INSULATOR, HEAT O/C | |
| 20. | VAMF140221 | [3] | BOLT | KOBBOLT, FLANGE 8 X 12 |
| 30-34. | VAME014773 | [1] | O-RING KIT | KOBO-RING KIT |
| 30. | VAME014772 | [2] | O-RING | KOBO-RING |
| 31. | VAMH035091 | [2] | O-RING | KOBO-RING 22 |
| 32. | VAMH035044 | [1] | O-RING | KOBO-RING 18 Superseded by part number: 240098A1 |
| 33. | VAMF520016 | [3] | O-RING | KOBO-RING 22.1 |
| 34. | VAMH035015 | [2] | O-RING | KOBO-RING 17 |
