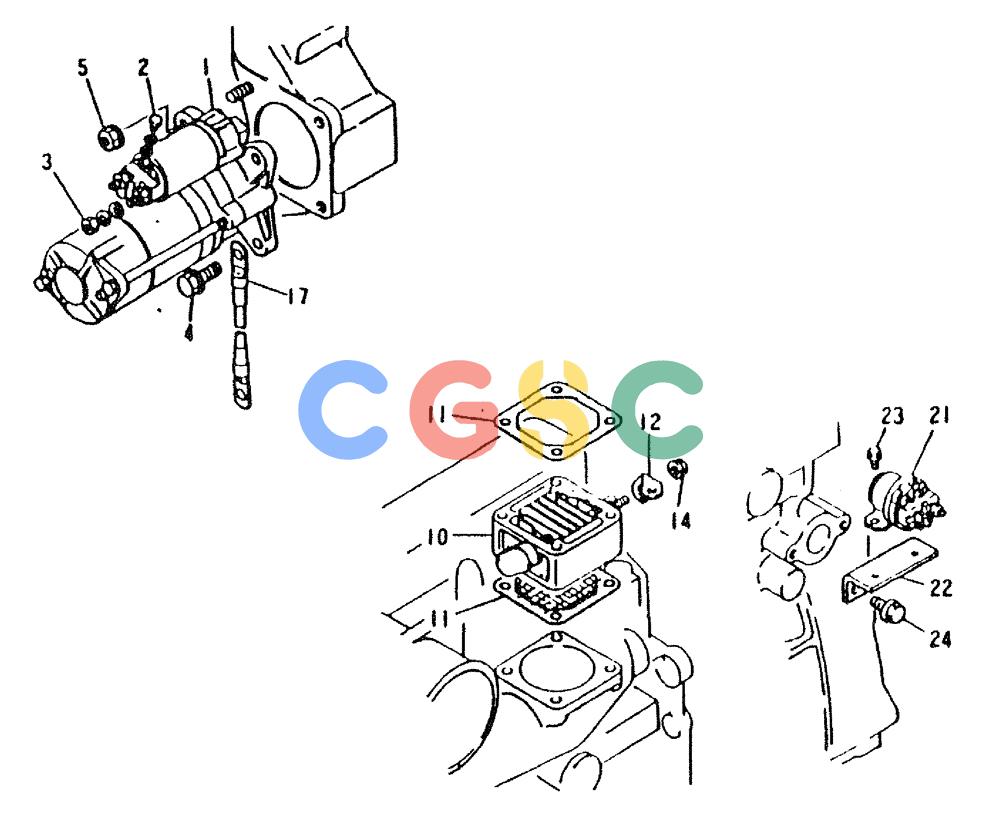

神钢零件查询(4D31-T) - MITSUBISHI DIESEL ENGINE (1/88-12/06) (04-001) - STARTER GENERAL Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
310 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME019911 | [1] | STARTER MOTOR | KOBSTARTER ASSY, MEC 24V-5KW Superseded by part number: VAME049186 |
| 2. | VAMF100001 | [1] | BOLT 5 X 8 | |
| . . | VAMF450403 | [1] | WASHER WASHER, SPG 5 | WASHER WASHER, SPG 5 |
| . . | VAMF450003 | [1] | WASHER PLAIN WASHER, PLAIN 5 | WASHER PLAIN WASHER, PLAIN 5 |
| 3. | VAMF430725 | [1] | NUT | KOBNUT 8 |
| . . | VAMF450405 | [1] | WASHER | KOBWASHER, SPG 8 Superseded by part number: 132502A1 |
| . . | VAMF450005 | [1] | WASHER | KOBWASHER, PLAIN 8 |
| 4. | VAMH000727 | [1] | BOLT | KOBBOLT, FLANGE 12 X 30 |
| 5. | VAMF434106 | [1] | NUT | KOBNUT, FLANGE 12 Superseded by part number: 135085A1 |
| 10. | VAME017566 | [1] | HEATER | KOBAIR HEATER ASSY 24V |
| 11. | VAME017032 | [1] | GASKET | KOBGA5KET, AIR HEATER |
| . . | VAME017062 | [1] | GASKET | KOBW/NET |
| 12. | VAME017770 | [1] | PLATE, EARTH | |
| 14. | VAMF434103 | [2] | NUT | KOBNUT, FLANGE 6 |
| 17. | VA0304450401 | [1] | STRAP | KOBSTRAP, EARTH |
| 21. | VAME037140 | [1] | RELAY RELAY, STARTER, MEC | RELAY RELAY, STARTER, MEC |
| 2. | VAME080208 | [1] | BRACKET, STARTER RELAY | |
| 23. | VAMH000999 | [2] | BOLT | KOBBOLT, FLANGE 6 X 12 |
| 24. | VAMH000713 | [2] | BOLT | KOBBOLT, FLANGE 10 X 20 |
