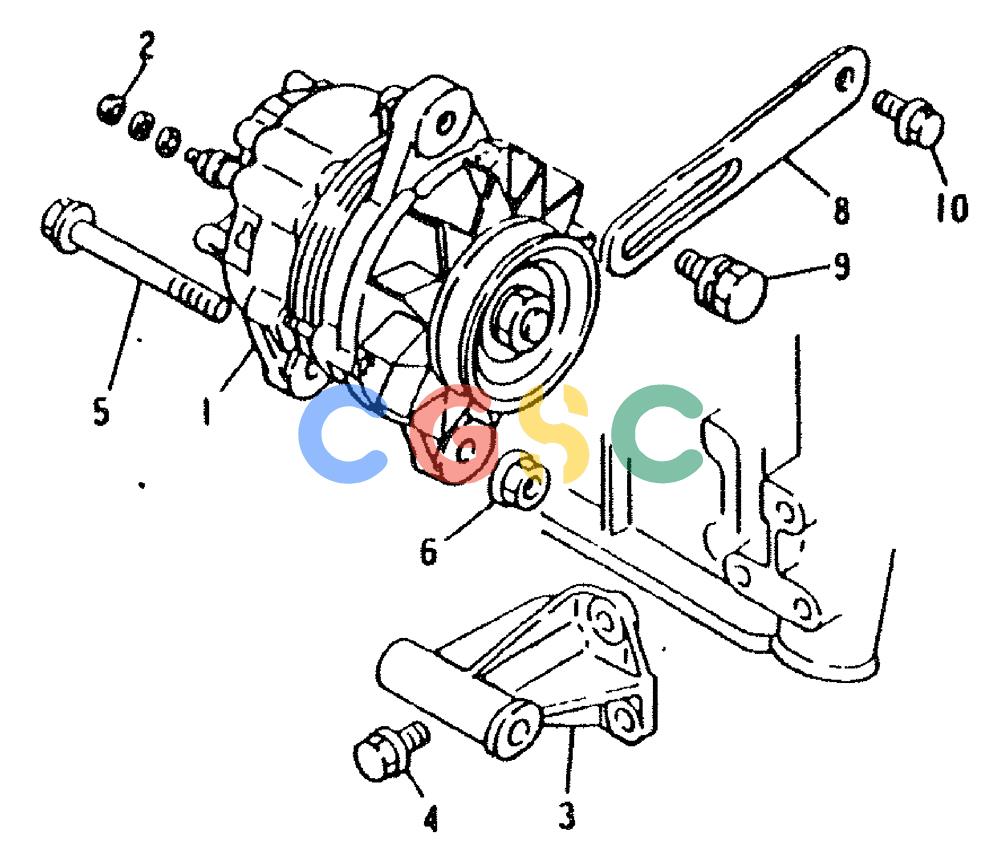

神钢零件查询(4D31-T) - MITSUBISHI DIESEL ENGINE (1/88-12/06) (04-003) - ALTERNATOR GENERAL Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
501 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME049165 | [1] | ALTERNATOR | KOBALTERNATOR ASSY, MEC 24V-25A |
| 2. | VAMF430003 | [1] | NUT | KOBNUT 5 Superseded by part number: 135143A1 |
| . . | VAMF450403 | [1] | WASHER WASHER, SPG 5 | WASHER WASHER, SPG 5 |
| . . | VAMF450003 | [1] | WASHER PLAIN WASHER, PLAIN 5 | WASHER PLAIN WASHER, PLAIN 5 |
| 3. | VAME017875 | [1] | BRACKET, ALTERNATOR | |
| 4. | VAMH000726 | [3] | BOLT | KOBBOLT, FLANGE 10 X 22 |
| 5. | VAMH000703 | [1] | BOLT | KOBBOLT, FLANGE 12 X 125 |
| 6. | VAMF434106 | [1] | NUT | KOBNUT, FLANGE 12 Superseded by part number: 135085A1 |
| 8. | VAME017797 | [1] | ALTERNATOR | KOBPLATE, ADJUSTING |
| 9. | VAMH000372 | [1] | SCREW | KOBBOLT, W/WSR 12 X 30 Superseded by part number: 135147A1 |
| 10. | VAMH000713 | [1] | BOLT | KOBBOLT, FLANGE 10 X 20 |
