斗山零件查询LOCK VALVE PIPING B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
450 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

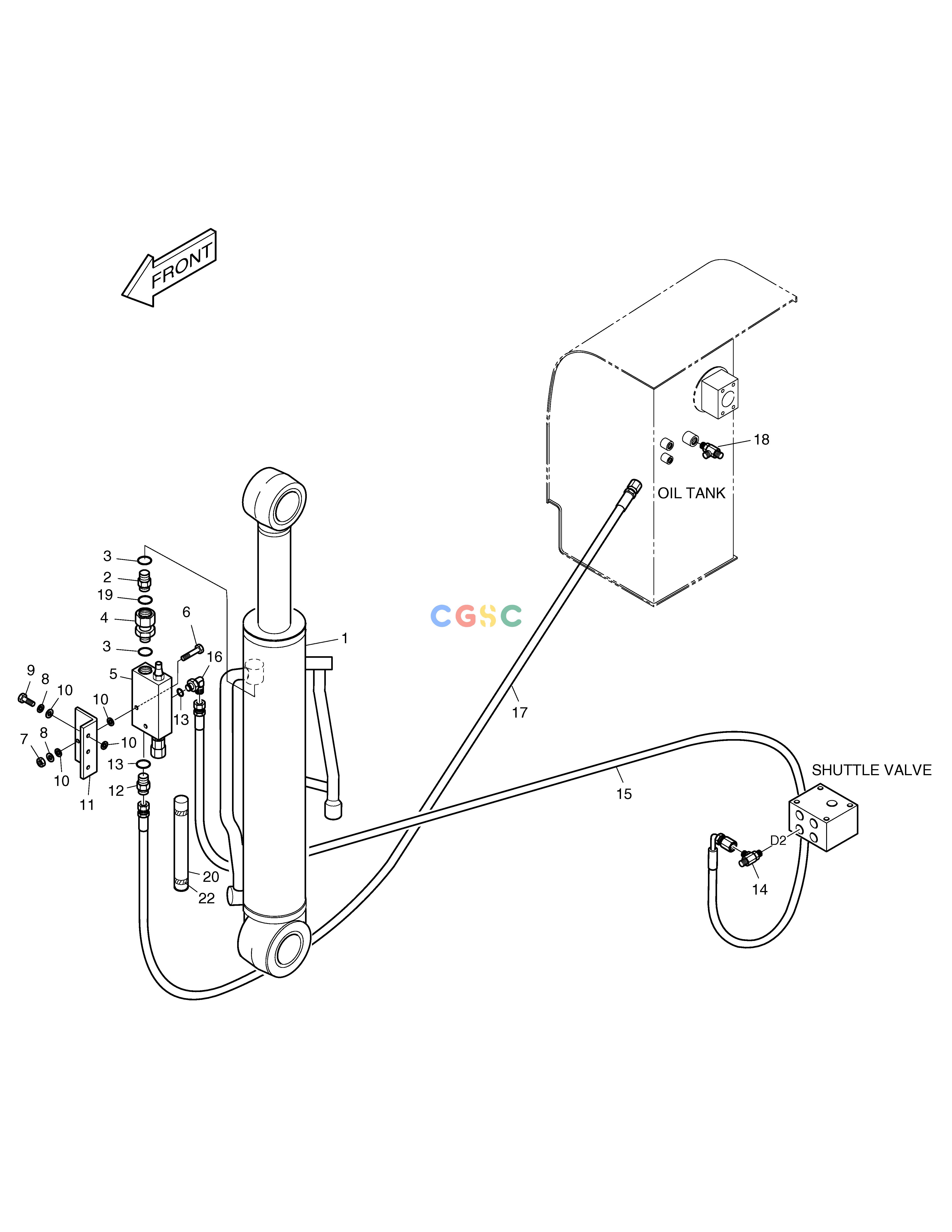

400-01251
|
[-] |
LOCK VALVE PIPING
|
|
| 1. |
440Y00390
|
[1] |
CYLINDER;BOOM (LOCK VALVE)
|
|
| 10. |
2114-1058D29
|
[5] |
WASHER
|
|
| 10. |
2114-1058D29
|
[7] |
WASHER
|
|
| 11. |
195Y01454A
|
[1] |
BRACKET
|
|
| 12. |
2181-1126D14
|
[1] |
ADAPTER
|
|
| 13. |
S8000111
|
[2] |
O-RING
|
|
| 14. |
2181-1951D1
|
[1] |
TEE
|
|
| 15. |
2184-1046D267
|
[1] |
HOSE
|
|
| 16. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 17. |
2184-1045D251
|
[1] |
HOSE
|
|
| 18. |
2181-1951D19
|
[1] |
TEE
|
|
| 19. |
S8030081
|
[1] |
O-RING
|
|
| 2. |
2181-4133D3
|
[1] |
ADAPTER
|
|
| 20. |
158-00012
|
[1] |
PROTECTOR
|
158-00015
|
| 20. |
158-00015
|
[1] |
PROTECTOR
|
|
| 22. |
2124-1084D2
|
[2] |
CLIP;BAND
|
|
| 3. |
S8000181
|
[2] |
O-RING
|
|
| 4. |
DS2235002
|
[1] |
ADAPTER
|
|
| 5. |
426-00143
|
[1] |
VALVE;LOCK
|
|
| 6. |
S0556653
|
[2] |
BOLT M8X1.25X65
|
|
| 7. |
S4012533
|
[2] |
NUT
|
|
| 8. |
S5102503
|
[5] |
. WASHER
|
|
| 9. |
S0509153
|
[3] |
BOLT M8X1.25X28
|
|
