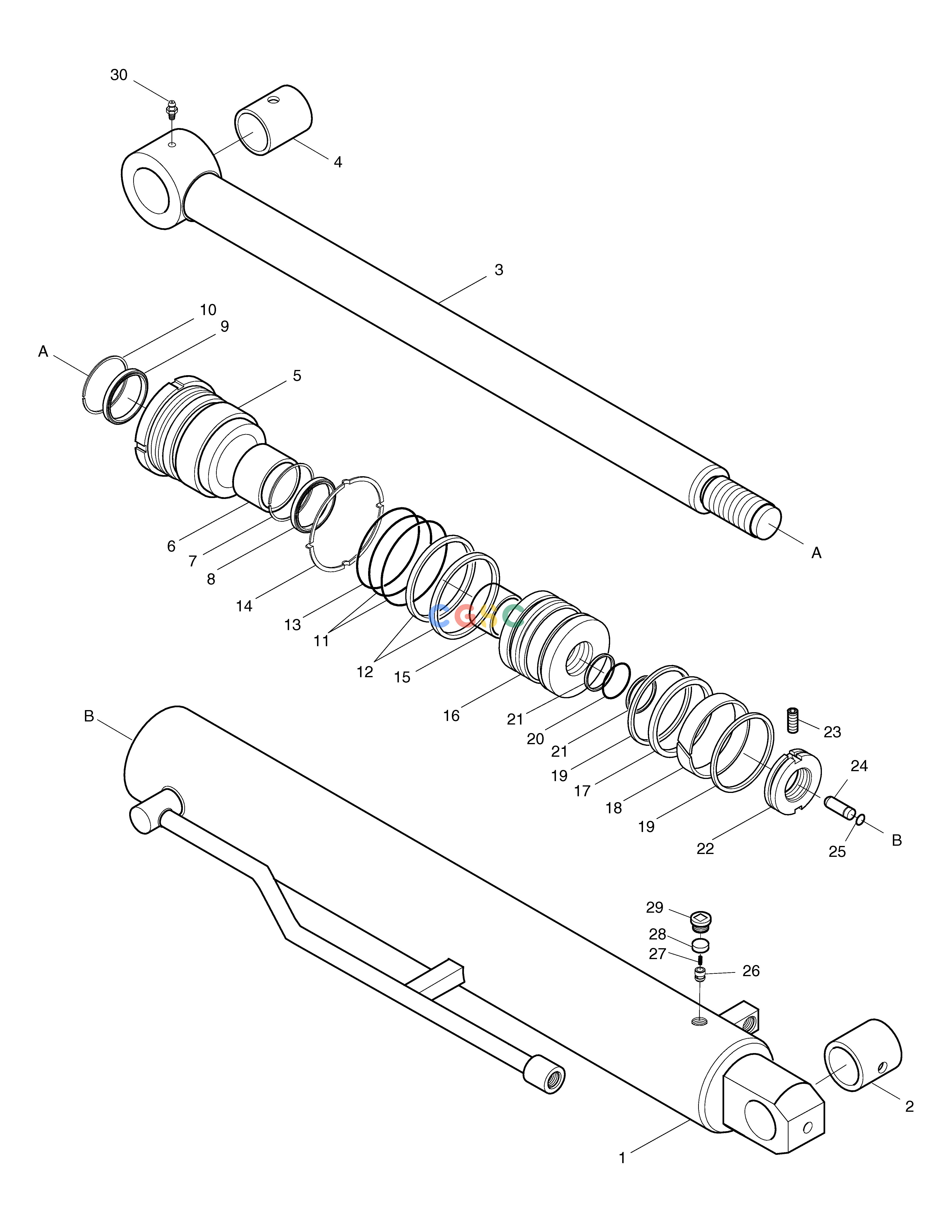

斗山零件查询ARM CYLINDER B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
686 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2440-9253BKT
|
[1] |
SEAL KIT;ARM
|
|
| -. |
440-00378
|
[1] |
CYLINDER;ARM
|
|
| 1. |
53A678-4
|
[1] |
TUBE ASS'Y
|
|
| 10. |
00M319-0
|
[1] |
RING;RETAINING
|
|
| 11. |
E6311441
|
[2] |
O-RING
|
|
| 12. |
E6651450
|
[2] |
RING;BACK UP
|
|
| 13. |
E6311461
|
[1] |
O-RING
|
|
| 14. |
03U537-0
|
[1] |
WASHER
|
|
| 15. |
53B411-0
|
[1] |
RING;CUSHION
|
|
| 16. |
53A375-3
|
[1] |
PISTON
|
|
| 17. |
E5150380
|
[1] |
RING;GLYD
|
|
| 18. |
00W234-0
|
[1] |
RING;WEAR
|
|
| 19. |
00S466-0
|
[2] |
RING;DUST
|
|
| 2. |
00B114-0
|
[1] |
BUSH
|
|
| 20. |
E6310881
|
[1] |
O-RING 1BG40
|
|
| 21. |
E6640880
|
[2] |
RING;BACK UP
|
|
| 22. |
53A525-0
|
[1] |
NUT;PISTON
|
|
| 23. |
E1330544
|
[1] |
SCREW;SET
|
|
| 24. |
80S547-0
|
[1] |
PLUNGER;CUSHION
|
|
| 25. |
80S548-0
|
[1] |
RING;STOP
|
|
| 26. |
80S752-0
|
[1] |
VALVE;CHECK
|
|
| 27. |
04S480-0
|
[1] |
SPRING
|
|
| 28. |
03A728-0
|
[1] |
SUPPORT;SPRING
|
|
| 29. |
E1500030
|
[1] |
PLUG
|
|
| 3. |
53A681-1
|
[1] |
ROD ASS'Y
|
|
| 30. |
E8843012
|
[1] |
NIPPLE;GREASE
|
|
| 4. |
00B114-0
|
[1] |
BUSH
|
|
| 5. |
53A550-0
|
[1] |
COVER;ROD
|
|
| 6. |
E8410155
|
[1] |
BUSH;DU
|
|
| 7. |
E6500910
|
[1] |
RING;BACK-UP
|
|
| 8. |
E5302110
|
[1] |
PACKING;U
|
|
| 9. |
E6020160
|
[1] |
WIPER;DUST
|
|
