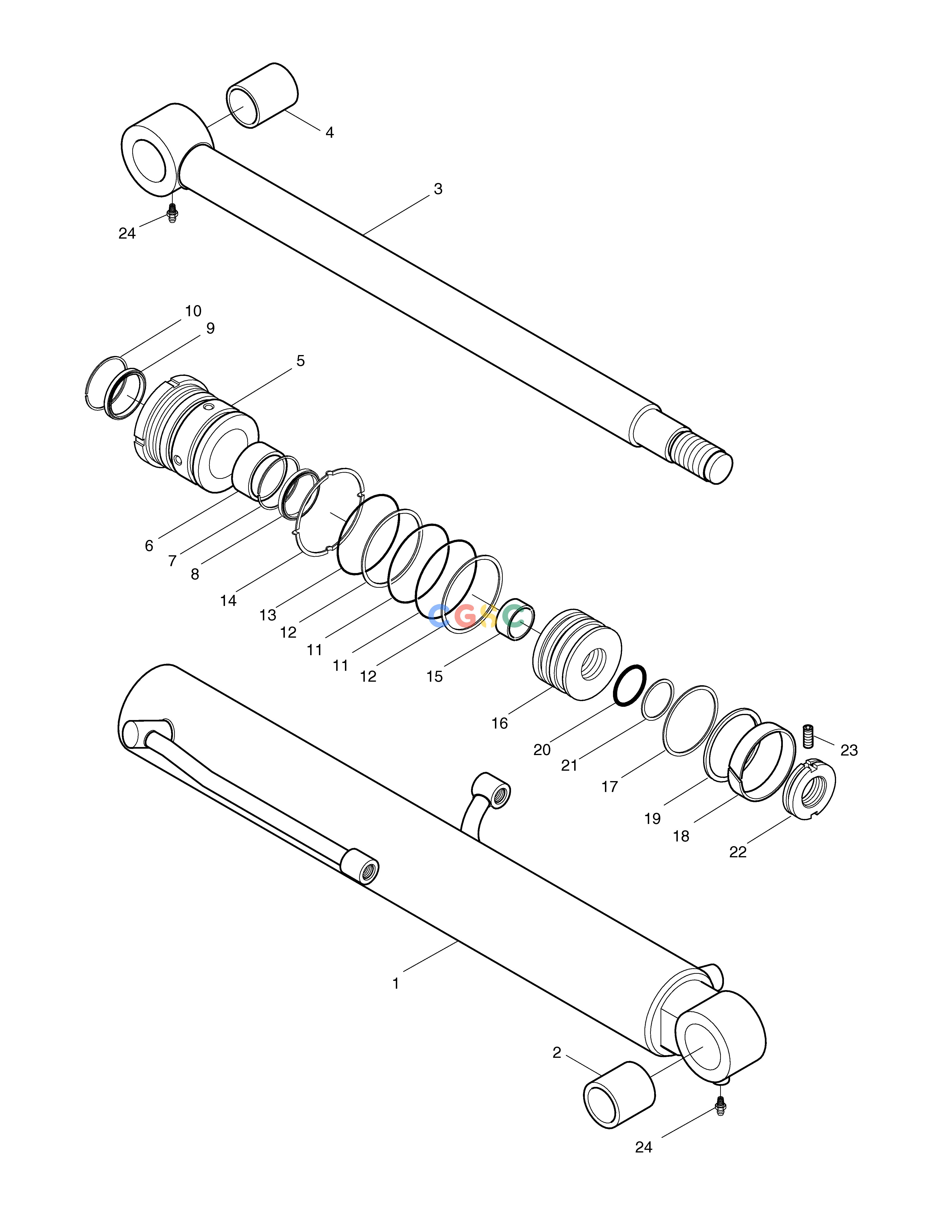

斗山零件查询BOOM CYLINDER-LOCK VALVE B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
479 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
440-00196KT
|
[1] |
SEAL KIT
|
|
| -. |
440-00390
|
[1] |
CYLINDER;BOOM(LOCK VALVE)
|
|
| 1. |
53B877-0
|
[1] |
TUBE ASS'Y
|
|
| 10. |
00M322-0
|
[1] |
RING;RETAINING
|
|
| 11. |
E6311561
|
[2] |
O-RING
|
|
| 12. |
E6651570
|
[2] |
RING;BACK UP
|
|
| 13. |
E6311581
|
[1] |
O-RING
|
|
| 14. |
03B679-0
|
[1] |
WASHER
|
|
| 15. |
00C218-0
|
[1] |
RING;CUSHION
|
|
| 16. |
53B867-0
|
[1] |
PISTON
|
|
| 17. |
E5150460
|
[1] |
RING;GLYD
|
|
| 18. |
00W246-0
|
[1] |
RING;WEAR
|
|
| 19. |
00S471-0
|
[1] |
RING;DUST
|
|
| 2. |
00B115-0
|
[1] |
BUSH
|
|
| 20. |
E6310961
|
[1] |
O-RING
|
|
| 21. |
E6650960
|
[1] |
RING;BACK UP
|
|
| 22. |
53B692-0
|
[1] |
NUT;PISTON
|
|
| 23. |
E1330544
|
[1] |
SCREW;SET
|
|
| 24. |
E8841032
|
[2] |
NIPPLE;GREASE
|
|
| 3. |
53B696-1
|
[1] |
ROD ASS'Y
|
|
| 4. |
00B115-0
|
[1] |
BUSH
|
|
| 5. |
03B678-5
|
[1] |
COVER;ROD
|
|
| 6. |
E8410160
|
[1] |
BUSH;DU
|
|
| 7. |
E6990066
|
[1] |
RING;BACK UP
|
|
| 8. |
E5302350
|
[1] |
PACKING;U
|
|
| 9. |
E6020180
|
[1] |
WIPER;DUST
|
|
