神钢零件查询(4D31-T) - MITSUBISHI DIESEL ENGINE (1/88-12/06) (03-004) - AUTOMATIC TIMER (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
974 次

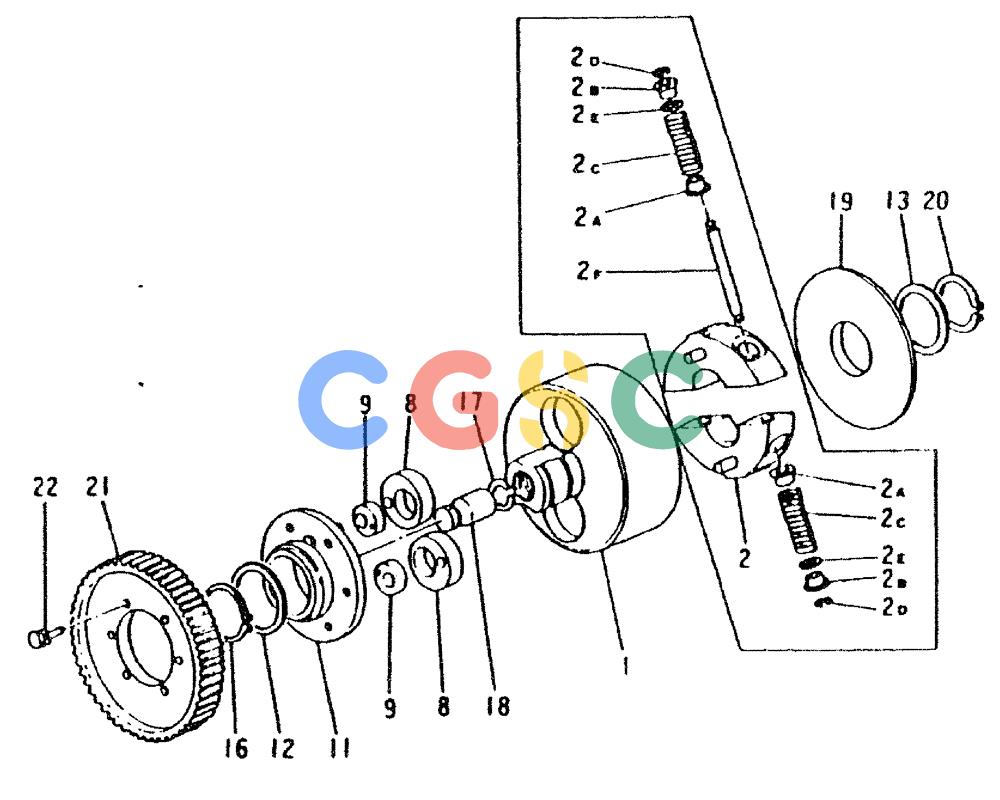

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-22. | VAME716966 | [1] | TIMER | KOBAUTOMATIC TIMER ASSY, DKC 1056760260 |
| 1. | VAME717660 | [1] | FLANGE, TIMING, DKC 1567000200 | |
| 2-2F. | VAME722324 | [1] | FLYWEIGHT ASSY, DKC 1567102620 | |
| 2. | VAME722317 | [2] | FLYWEIGHT, DKC 1567029220 | |
| 2A. | VAME717663 | [4] | SEAT, SPG, DKC 1567070100 | |
| 2B. | VAME717664 | [4] | SEAT, SPG, DKC 1567070000 | |
| 2C. | VAME722321 | [4] | SPRING, DKC 1567044900 | |
| 2D. | VAME717665 | [4] | RING, SPG, DKC 1567090200 | |
| 2E. | VAME717666 | [1] | SHIM T=0.1, DKC 1567080800 | |
| . . | VAME717667 | [1] | T=0.2, DKC 1567080900 | |
| . . | VAME717668 | [1] | T=0.3, DKC 1567081000 | |
| . . | VAME717669 | [1] | T=0.4, DKC 1567081100 | |
| . . | VAME717670 | [1] | T=0.5, DKC 1567081200 | |
| . . | VAME717671 | [1] | T=0.6, DKC 1567081300 | |
| . . | VAME717672 | [1] | T=0.7, DKC 1567081400 | |
| . . | VAME717673 | [1] | T=0.8, DKC 1567081500 | |
| . . | VAME717674 | [1] | T=0.9, DKC 1567081600 | |
| . . | VAME717675 | [1] | T=1.0, DKC 1567081700 | |
| 2F. | VAME717676 | [2] | PIN, PILOT, DKC 1567060000 | |
| 8. | VAME716675 | [2] | CAM, ECCENTRIC, DKC 1567030500 | |
| 9. | VAME716676 | [2] | CAM, ECCENTRIC, DKC 1567030600 | |
| 11. | VAME717679 | [1] | FLANGE, DKC 1567010120 | |
| 12. | VAME717680 | [1] | SHIM T=0.10, DKC 1567082200 | |
| . . | VAME717681 | [1] | T=0.12, DKC 1567082300 | |
| . . | VAME717682 | [1] | T=0.14, DKC 1567082400 | |
| . . | VAME717683 | [1] | T=0.16, DKC 1567082500 | |
| . . | VAME717684 | [1] | T=0.18, DKC 1567082600 | |
| . . | VAME717685 | [1] | T=0.90, DKC 1567082700 | |
| . . | VAME717686 | [1] | T=1.10, DKC 1567082000 | |
| . . | VAME717687 | [1] | T=1.30, DKC 1567082900 | |
| . . | VAME717688 | [1] | T=1.50, DKC 1567083000 | |
| . . | VAME717689 | [1] | T=1.70, DKC 1567083100 | |
| 13. | VAME717680 | [1] | SHIM T=0.10, DKC 1567082200 | |
| 16. | VAME717959 | [1] | SNAP RING | KOBRING, DKC 0160203620 |
| 17. | VAME722171 | [1] | WASHER, SPG, DKC 1567091000 | |
| 18. | VAME704482 | [1] | NUT, DKC 1313253200 | |
| 19. | VAME717690 | [1] | PLATE, DKC 1567082100 | |
| 20. | VAME717959 | [1] | SNAP RING | KOBRING, DKC 0160203620 |
| 21. | VAME716674 | [1] | GEAR | KOBGEAR, DKC 1562210200 Superseded by part number: VA1562210200 |
| 22. | VAME717960 | [6] | BOLT, DKC 1390061500 | |
